Extension Housing: Service and Repair

INSPECTION OF EXTENSION HOUSING




INSPECT EXTENSION HOUSING BUSHING

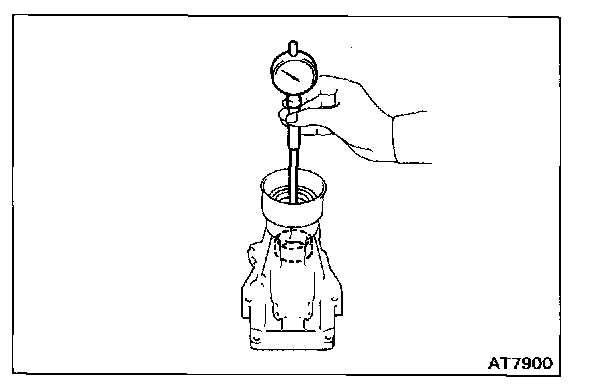

Using a cylinder gauge, measure the inside diameter of the extension housing bushing.

Maximum inside diameter: 40.09 mm (1.5783 in.)

If the inside diameter is greater than the maximum, replace the extension housing.
