Disassembly

1. REMOVE SHIFT INTERLOCK PLATE

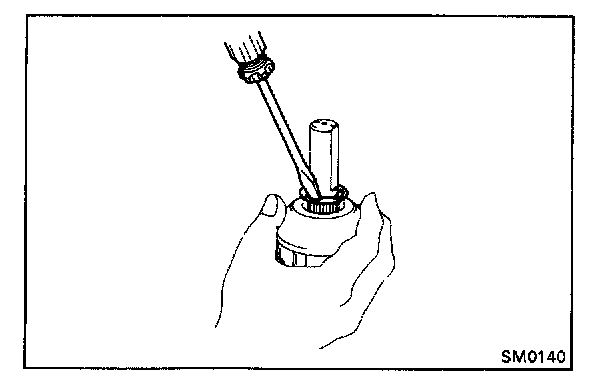

a. Remove the E-ring.

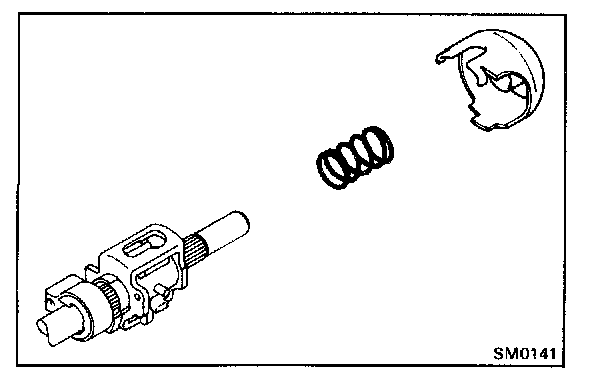

b. Remove the interlock plate and spring.




2. REMOVE INTERLOCK SHAFT, NO.1 SHIFT INNER LEVER, NO.2 SHIFT INNER LEVER, SPRING AND REVERSE RESTRICT PIN

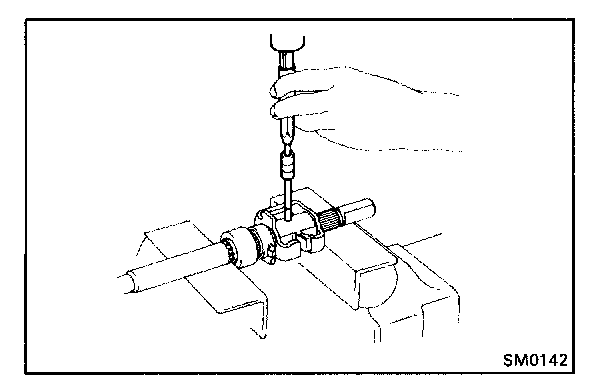

a. Using a pin punch and hammer, drive out the slotted spring pin.

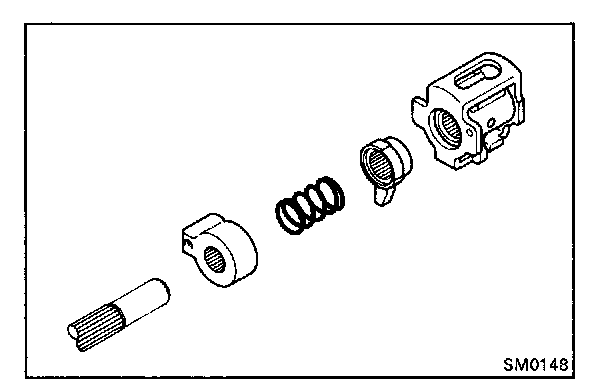

b. Remove the interlock shaft, No.1 shift inner lever, No.2 shift inner lever, spring and reverse restrict pin.

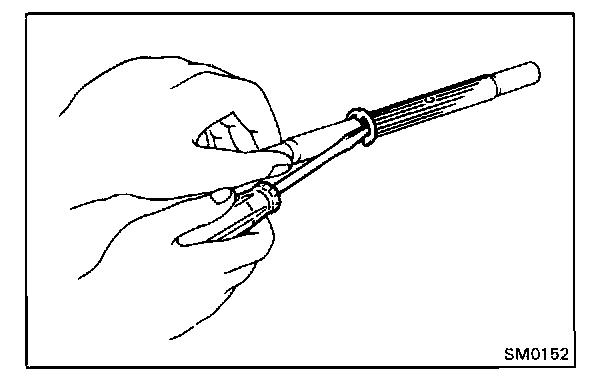

3. REMOVE E-RING
