Assembly

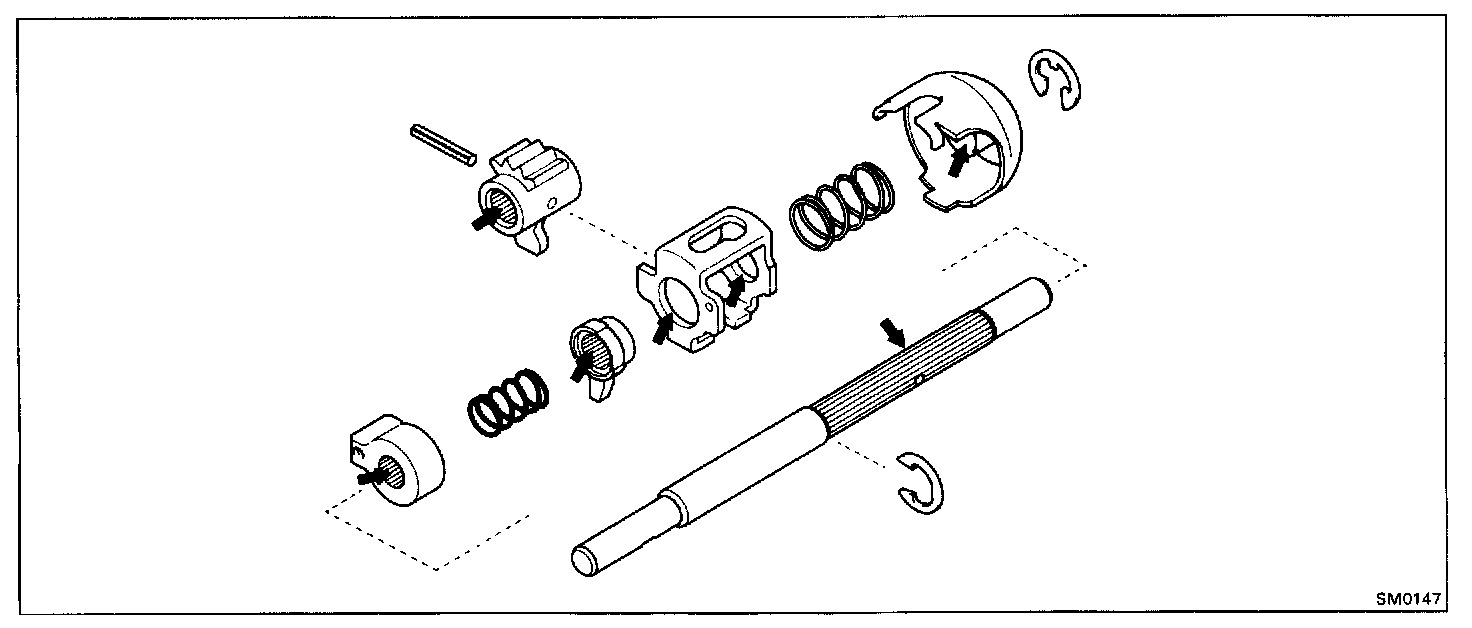

1. APPLY MP GREASE TO PARTS, AS SHOWN

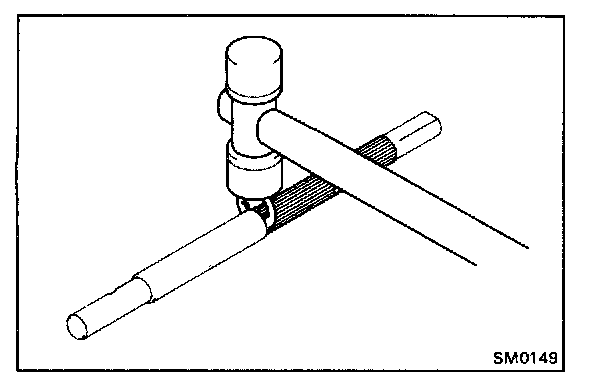

2. INSTALL E-RING
Using a plastic hammer, install the E-ring.

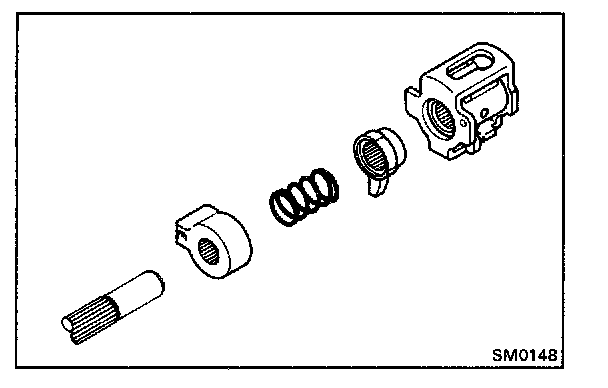

3. INSTALL REVERSE RESTRICT PIN, SPRING, NO.2 SHIFT INNER LEVER, NO.1 SHIFT INNER LEVER AND INTERLOCK SHAFT
a. Install the reverse restrict pin, spring, No.2 shift inner lever, No.1 shift inner lever and interlock plate.

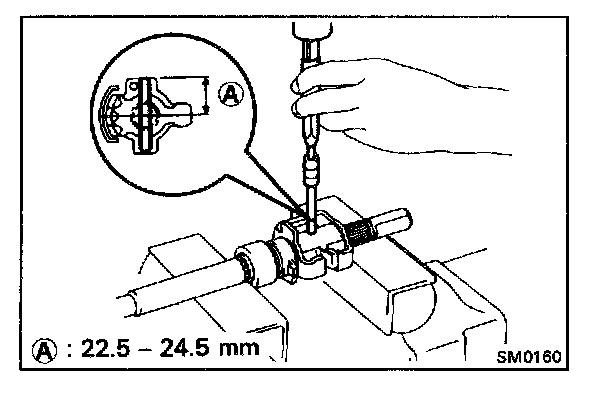

b. Using a pin punch and hammer, drive in the slotted spring pin.

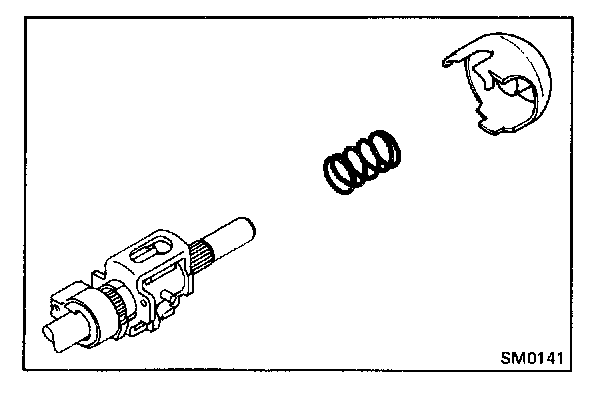

4. INSTALL SHIFT INTERLOCK PLATE
a. Install the spring and interlock plate.

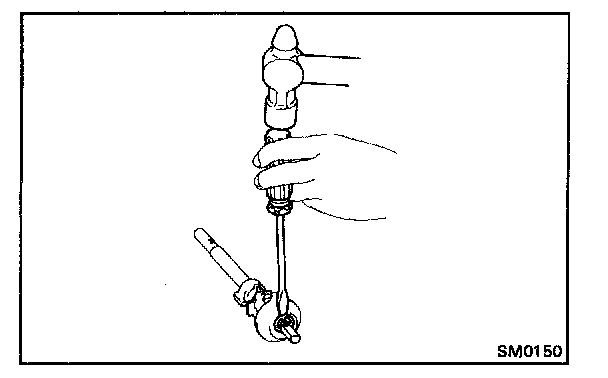

b. Using a screwdriver and hammer, install the E-ring.
