Removal and Installation

Part 1:

Remove and install the parts as shown.

HINT: (S54)
ATF type : DEXRON(R) II
Capacity : 2.6 liter (2.7 US qts, 2.3 Imp. qts)

(E153)
Oil Transaxle oil E50 (08885-80206) or equivalent
Capacity : 4.2 liter (4.4 US qts, 3.7 Imp. qts)

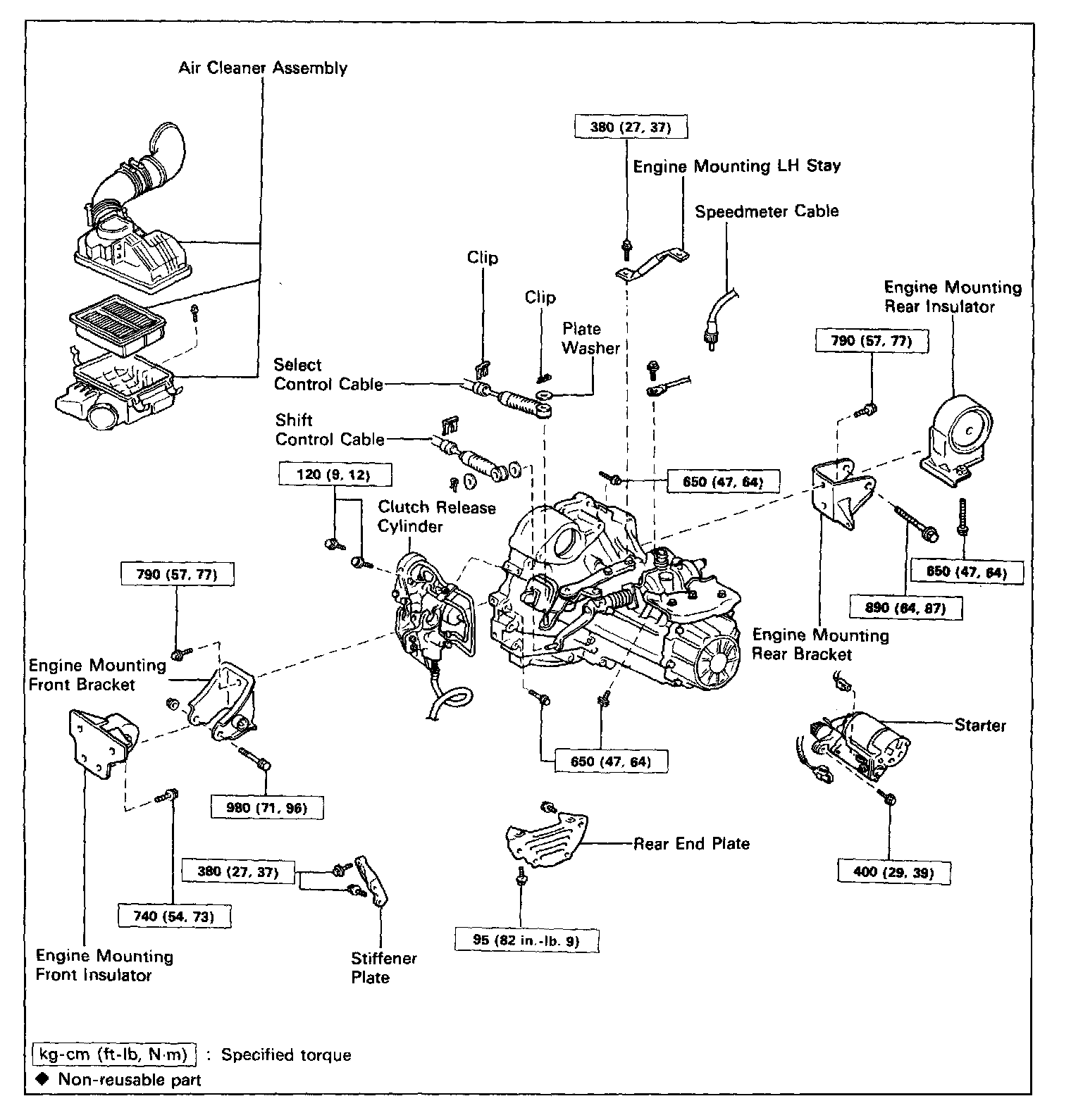

Part 2:

Remove and install the parts as shown.
