MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Installation
Removal and Installation

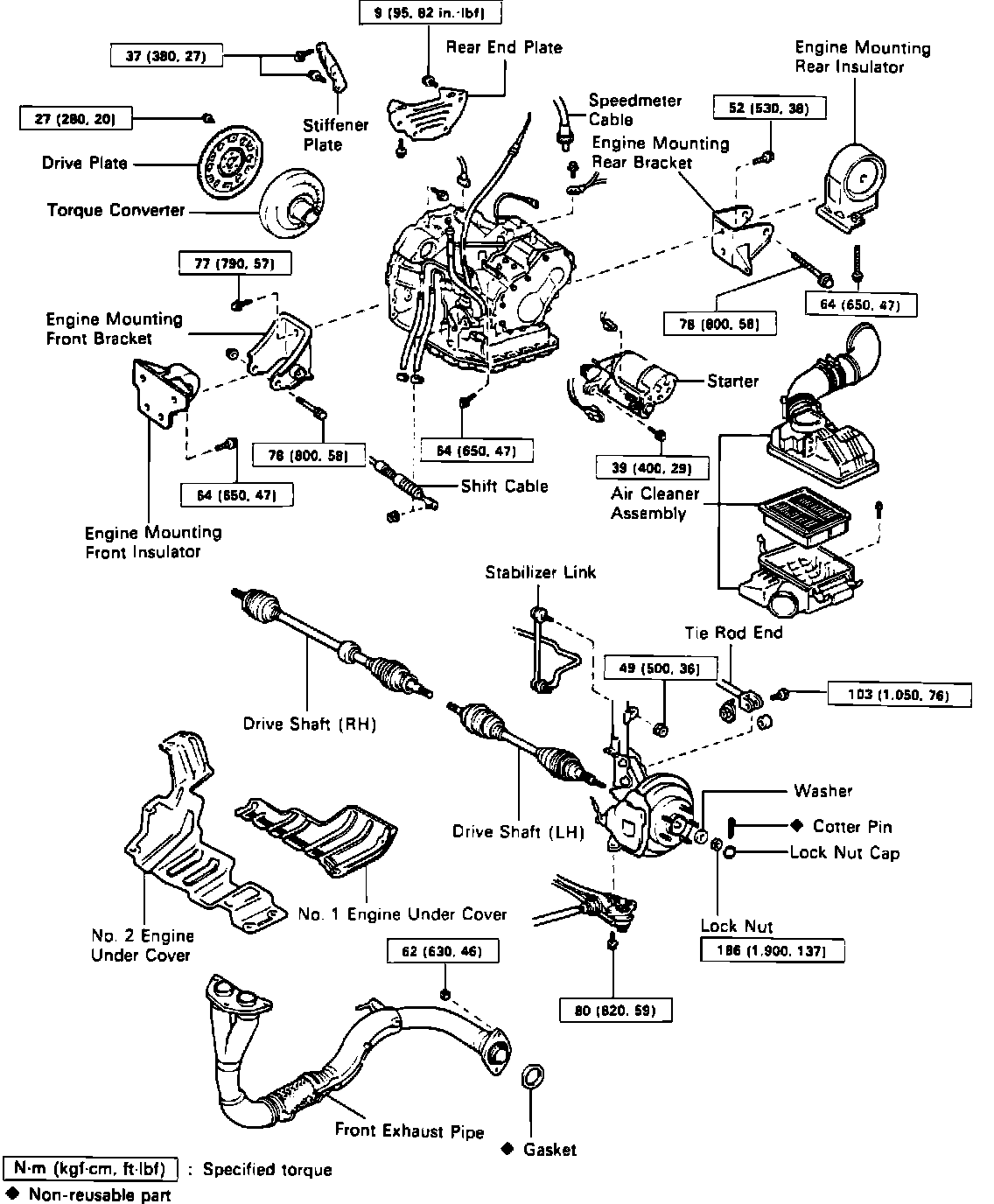

Fig. 14 Transaxle Replacement.:
1.
Disarm airbag system as outlined under
MAINTENANCE PROCEDURE/AIRBAG SYSTEM DISARMING.
2.
Remove transaxle assembly,
Fig. 14.
3.
Reverse procedure to install.
