Frame - Modified Front Bumper Cover

90toyota10

REFERENCE BODY
NUMBER 051
DATE 12-21-90
MODEL SW


TITLE FRONT BUMPER COVER CHANGE: WITH FOG LAMPS

Front bumper cover, Toyota part no. 52119-17904 has been superseded to part no. 52119-17903. Replacement of the bumper cover on vehicles equipped with the fog lamp option will require cutting the new bumper cover to accommodate the fog lamps. Shown below is the procedure for cutting the bumper cover.





PROCEDURE:

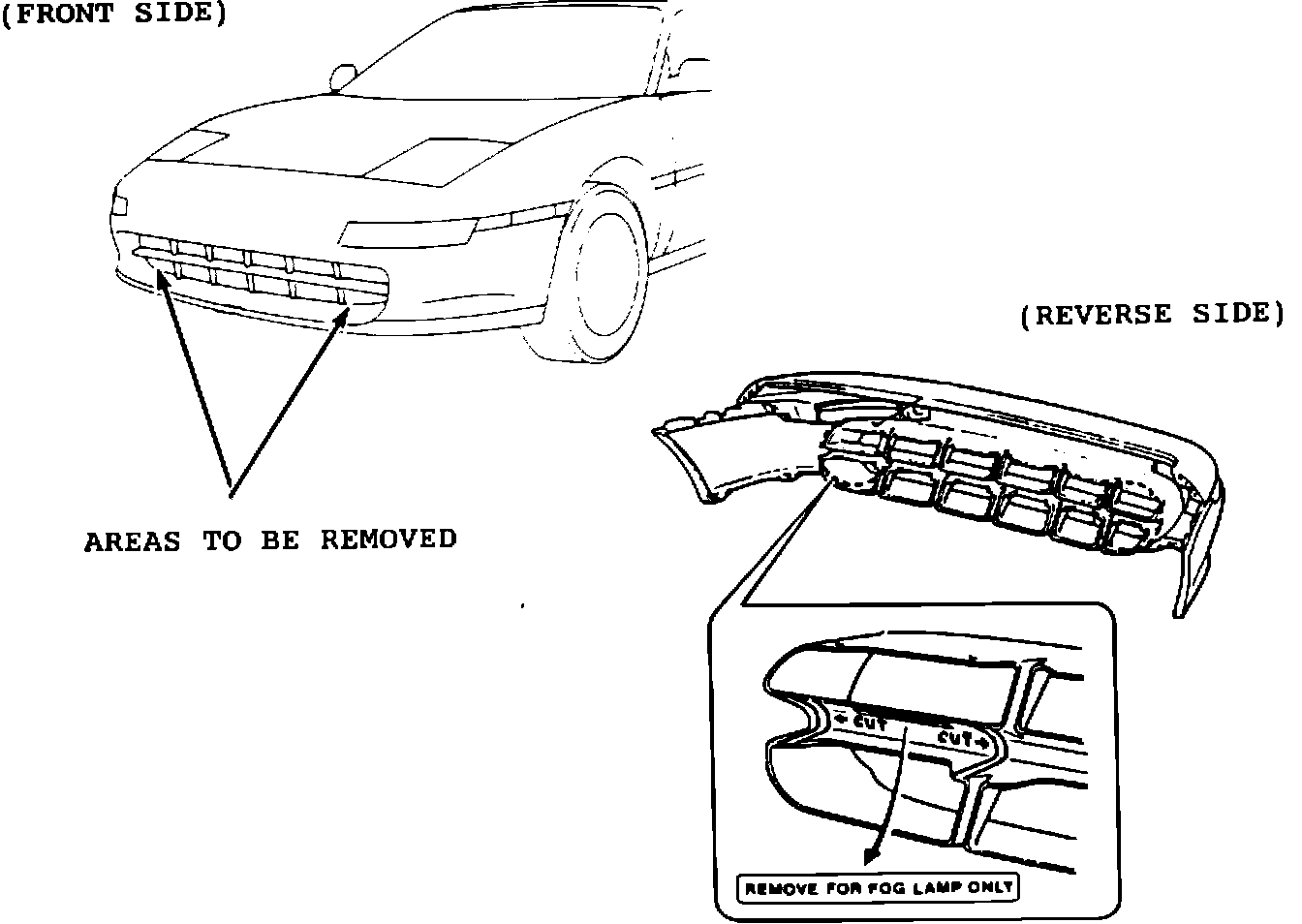

Cut the bumper along the embossed line on the inside of the cover, using a knife or saw. (see diagram)


CAUTION: Be careful not to damage the surrounding areas.
