A/T - Valve Body Standardized

REF: TRANSMISSION & CLUTCH

NO.: TC95-005

DATE: JULY 14, 1995

MODEL: MR2

A241E AUTOMATIC TRANSAXLE VALVE BODY

To standardize casting operations, the valve body has been modified as illustrated:

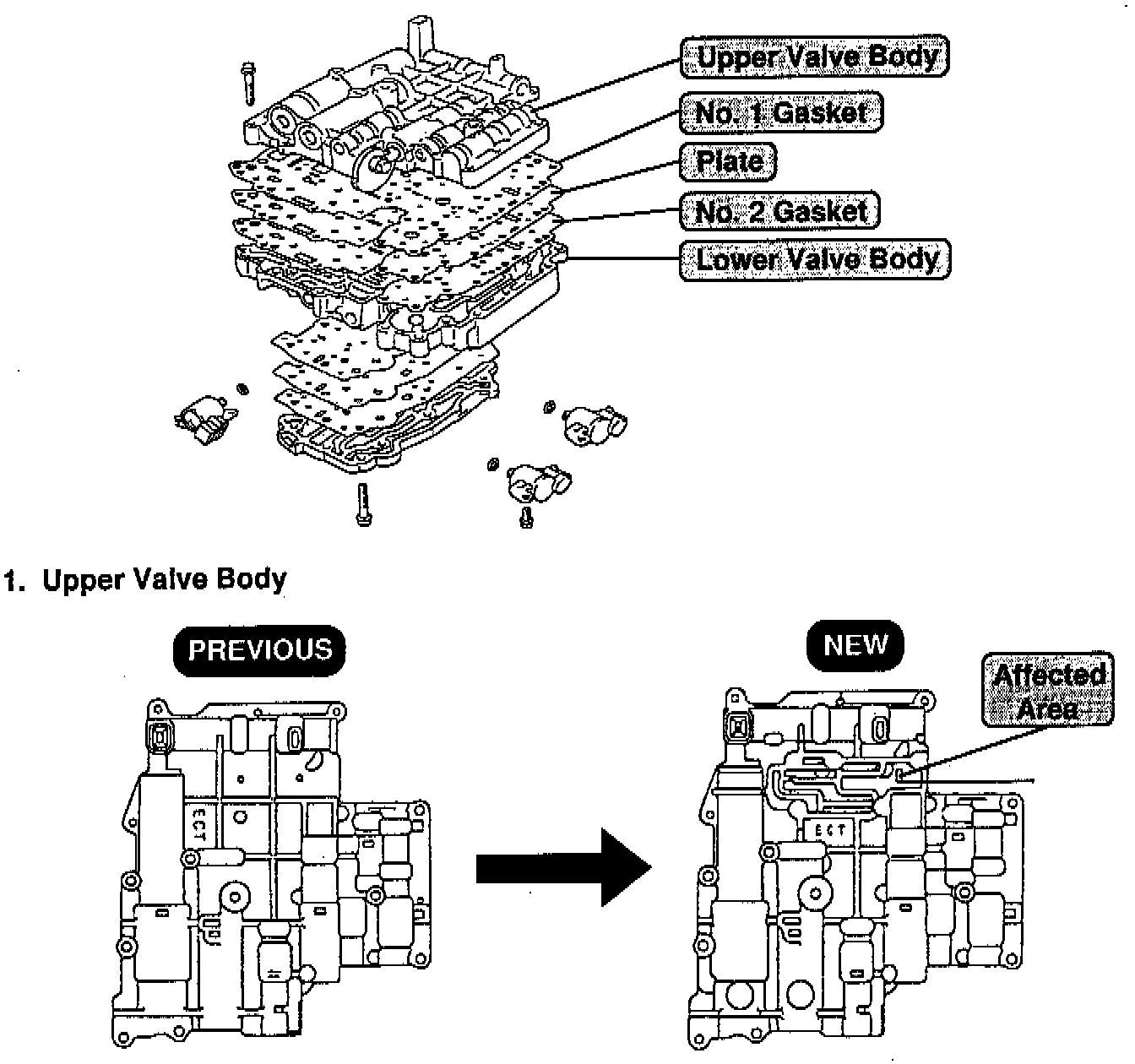

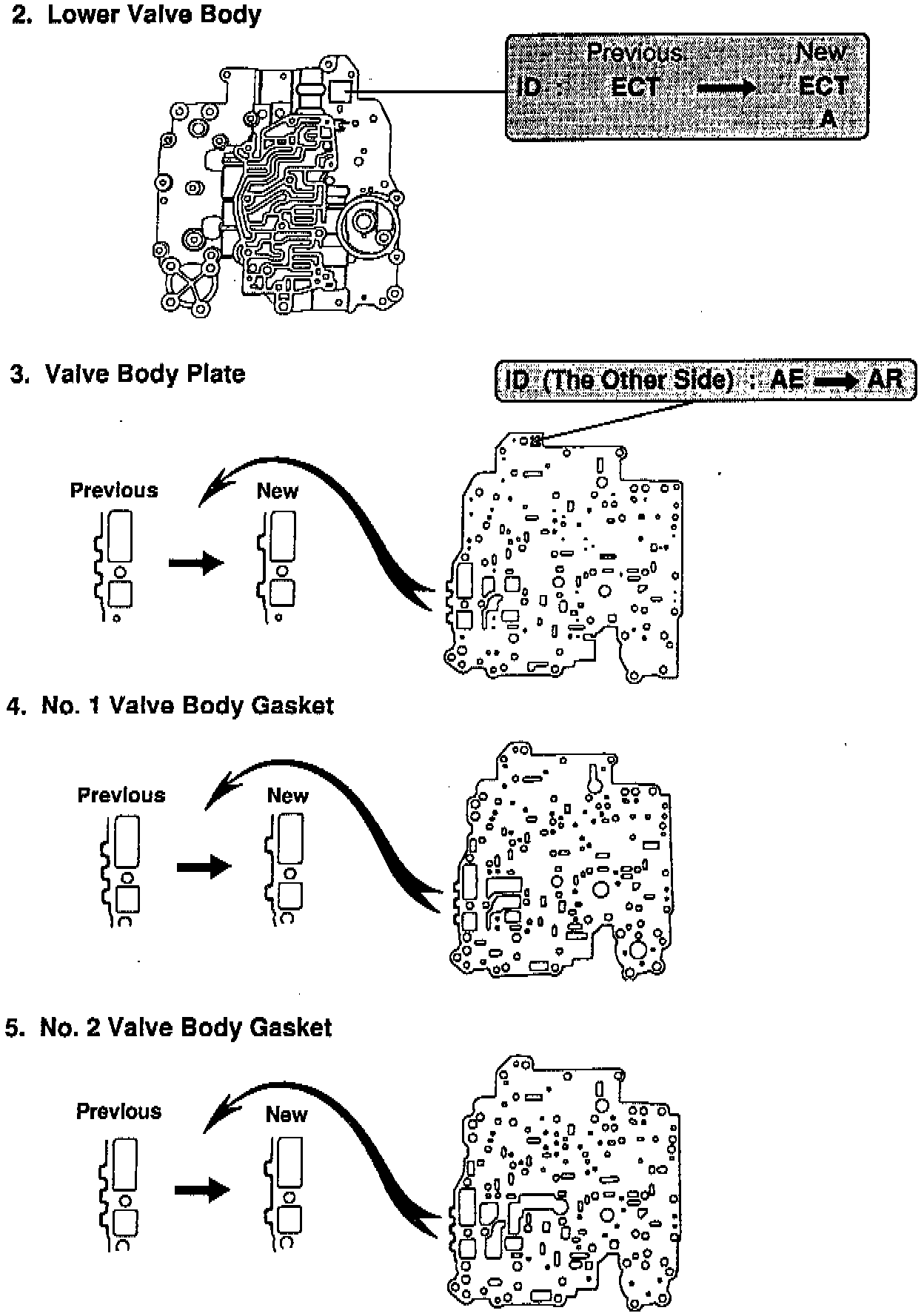

Valve Body Illustrations

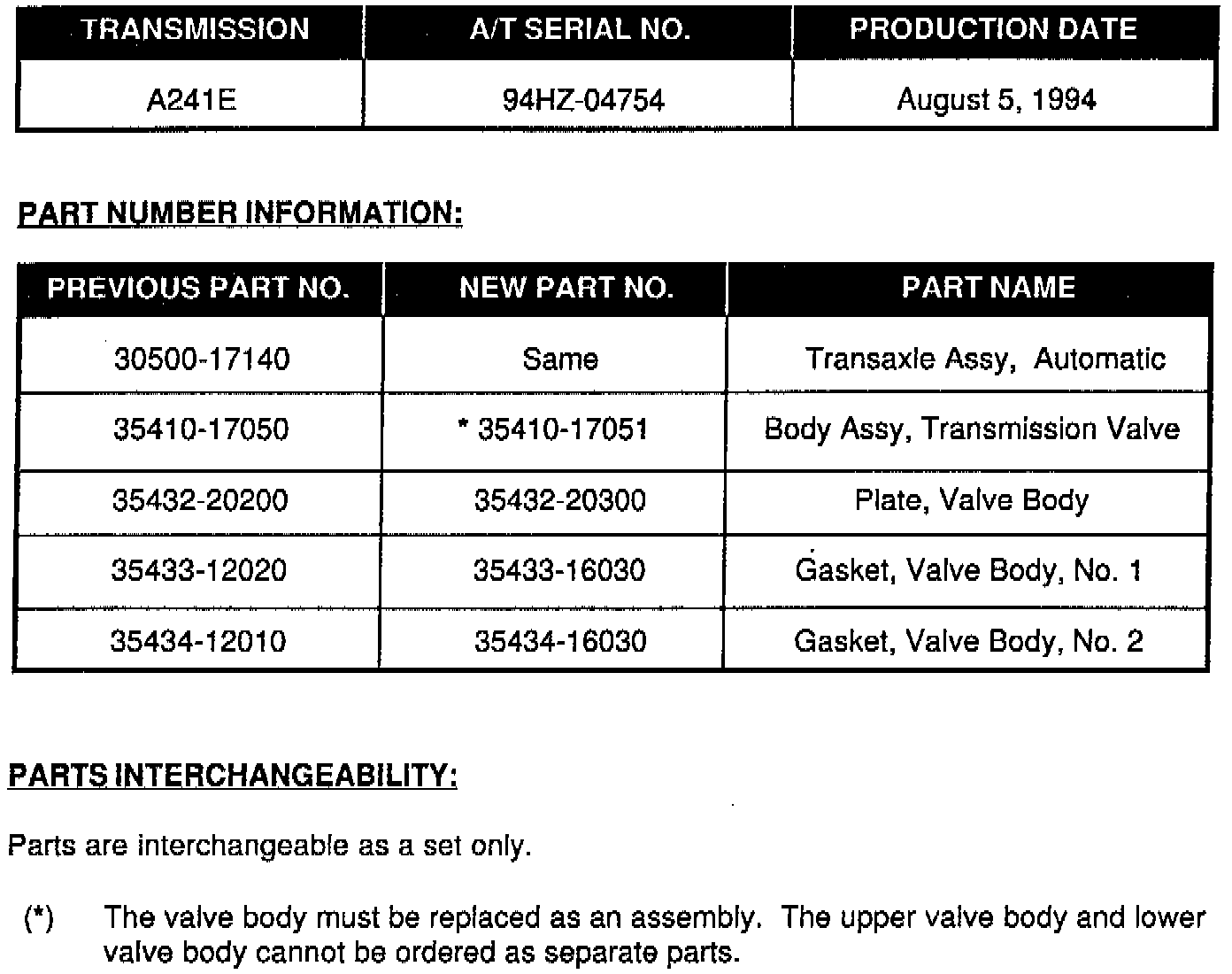

Production Effective / Parts Information
