MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
R/B No.1
R/B No.1

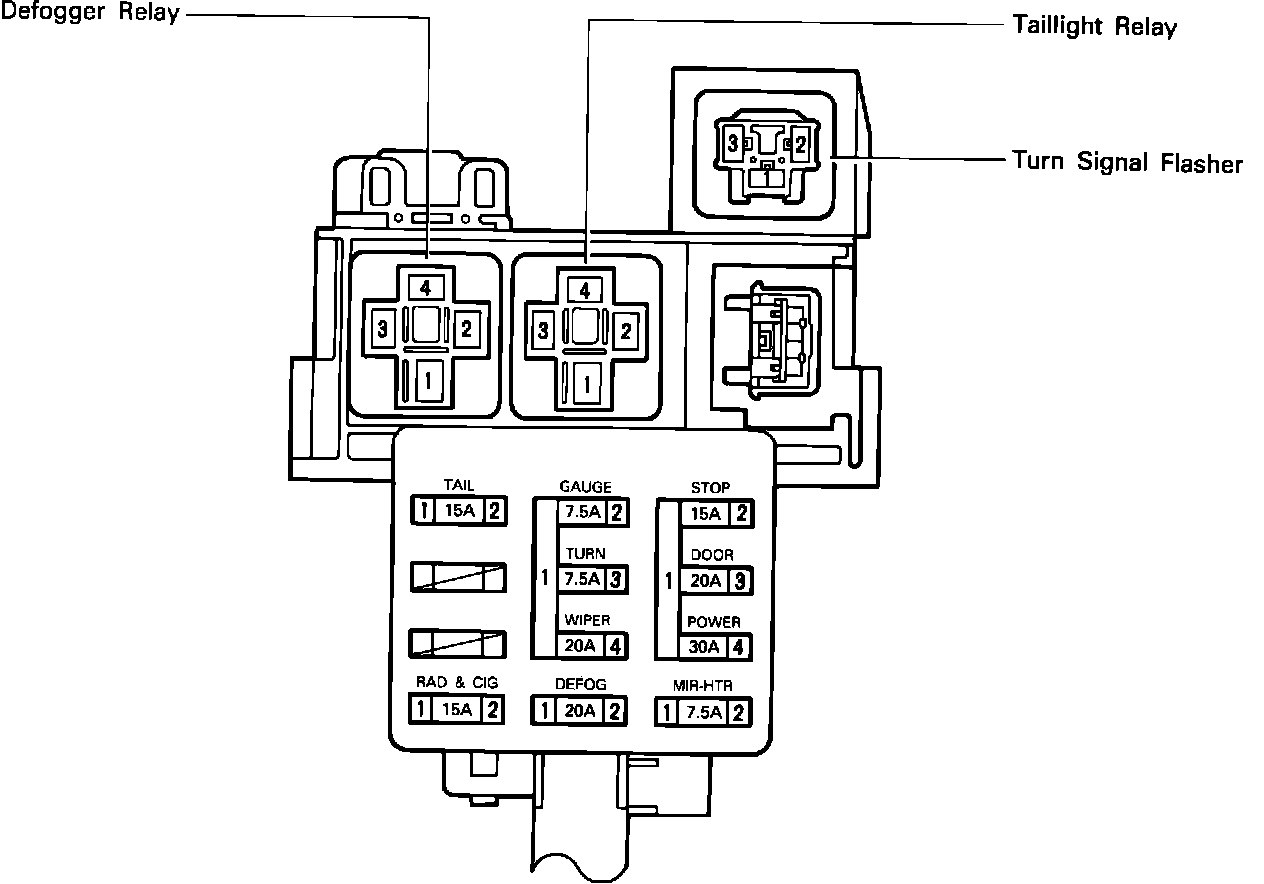

Relay Box No. 1 (Left Kick Panel):
