Starter Relay: Testing and Inspection

INSPECTION OF STARTER RELAY

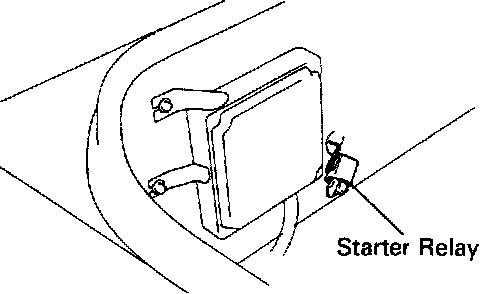

LOCATION: In the luggage compartment on the left side.

1. INSPECT RELAY CONTINUITY

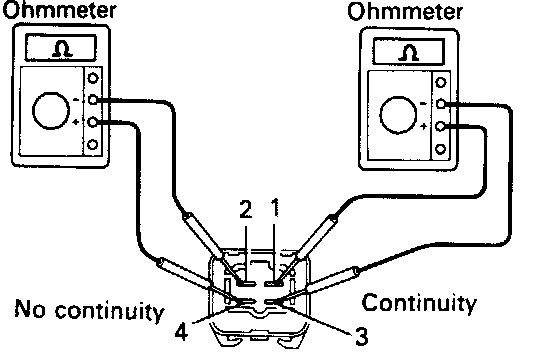

(a) Using an ohmmeter, check that there is continuity between terminals 1 and 3.
(b) Check that there is no continuity between terminals 2 and 4.
If continuity is not as specified, replace the relay.

2. INSPECT RELAY OPERATION

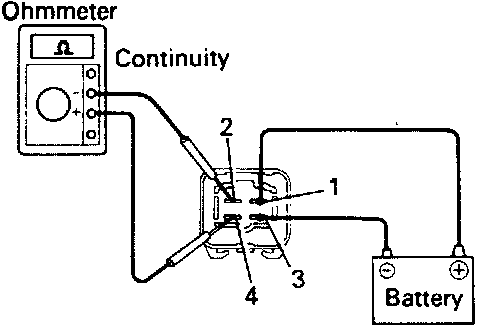

(a) Apply battery voltage across terminals 1 and 3.
(b) Using an ohmmeter, check that there is continuity between terminals 2 and 4.
If operation is not as specified, replace the relay.
