MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Horn Relay
>>
Locations
Horn Relay: Locations

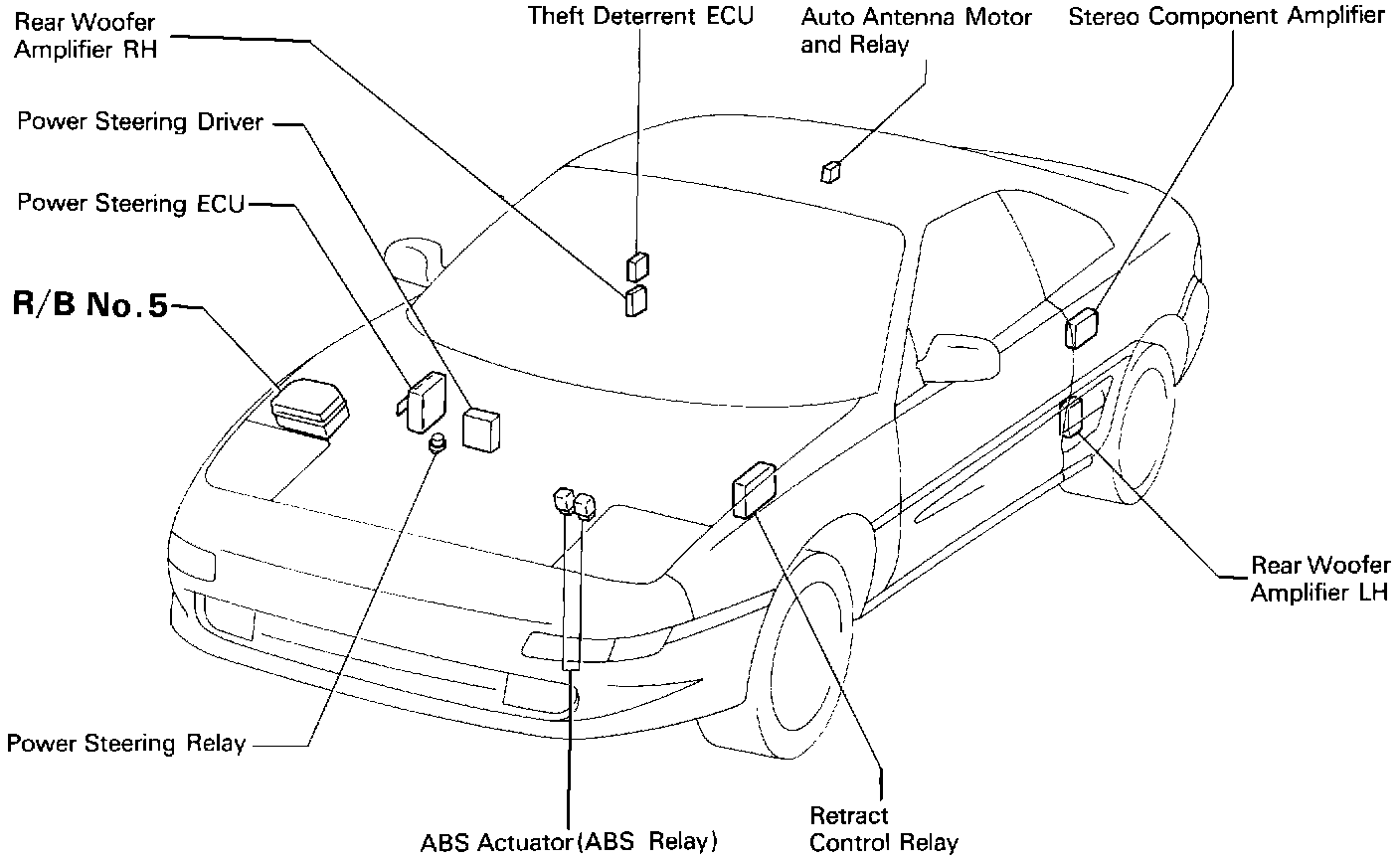

Locations-Body (Fig 18):
Relay Box # 5

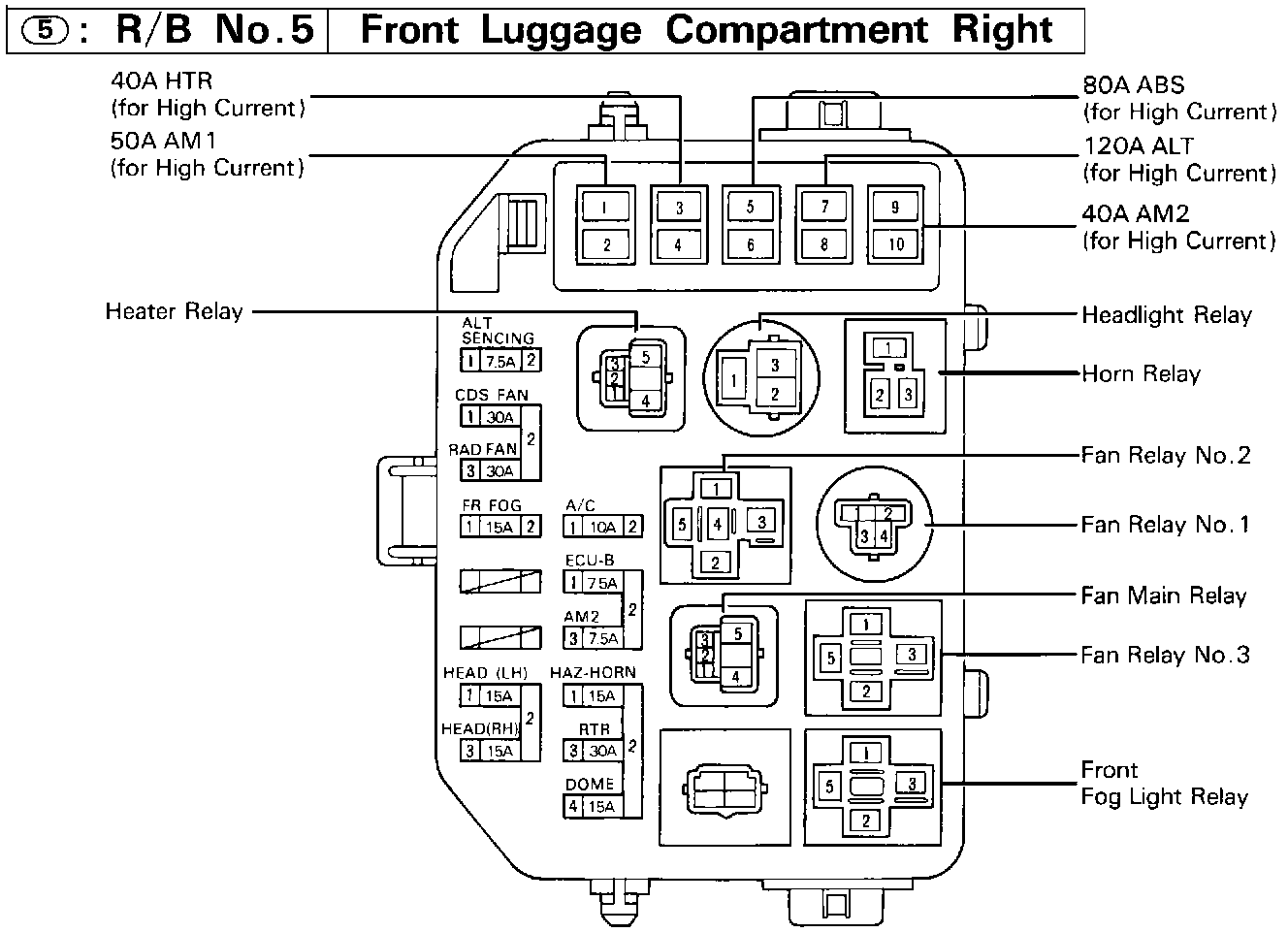

Locations-Re/B No.5 Front Luggage Compartment Right (Fig 20):
