Power Door Lock Relay: Locations

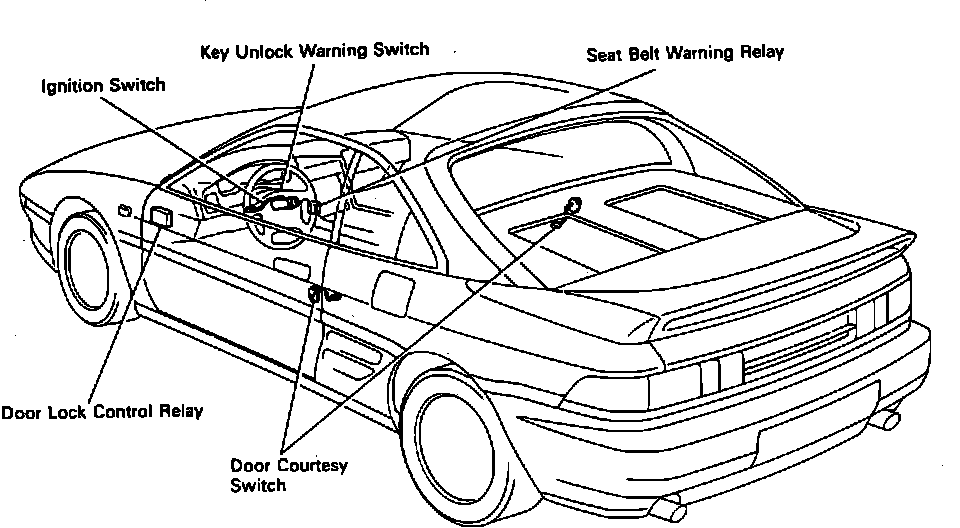

Ignition System Components:

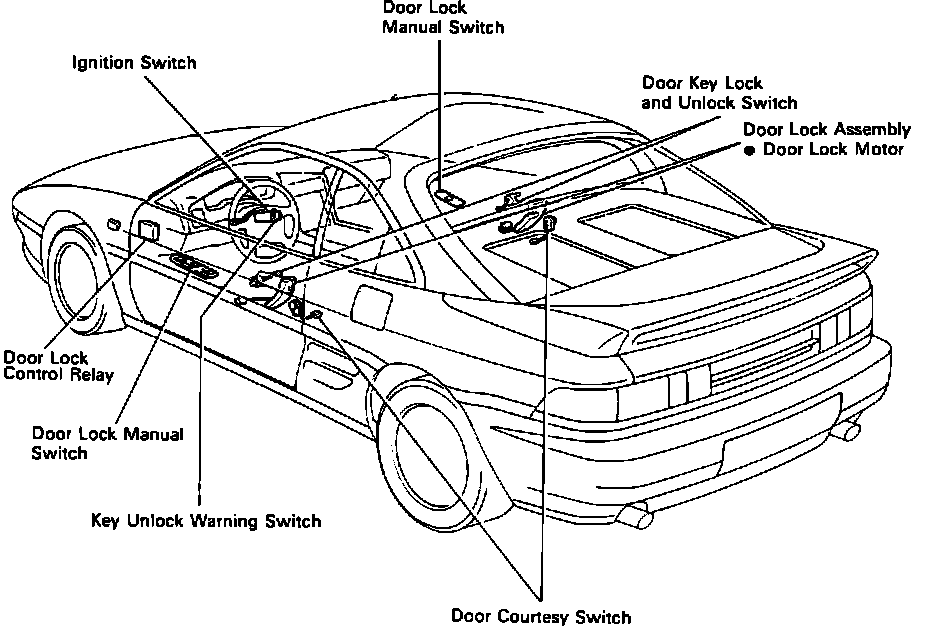

Power Door Lock System Components:

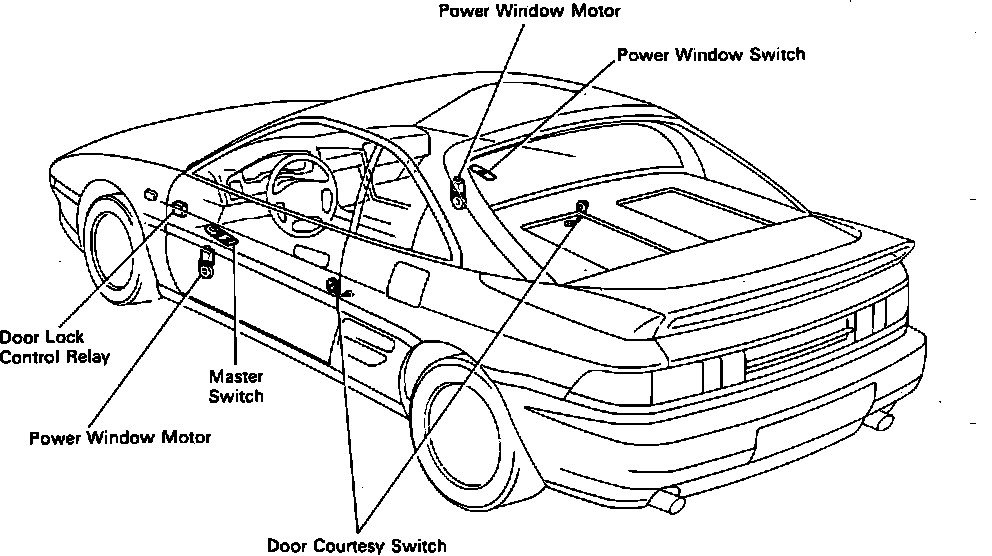

Power Window System Components:




Behind LH Side Of I/P
