Idle Speed/Throttle Actuator - Electronic
>>
Testing and Inspection
>>
Circuit Test
>>
Circuit Test (M/T)
Circuit Test (M/T)

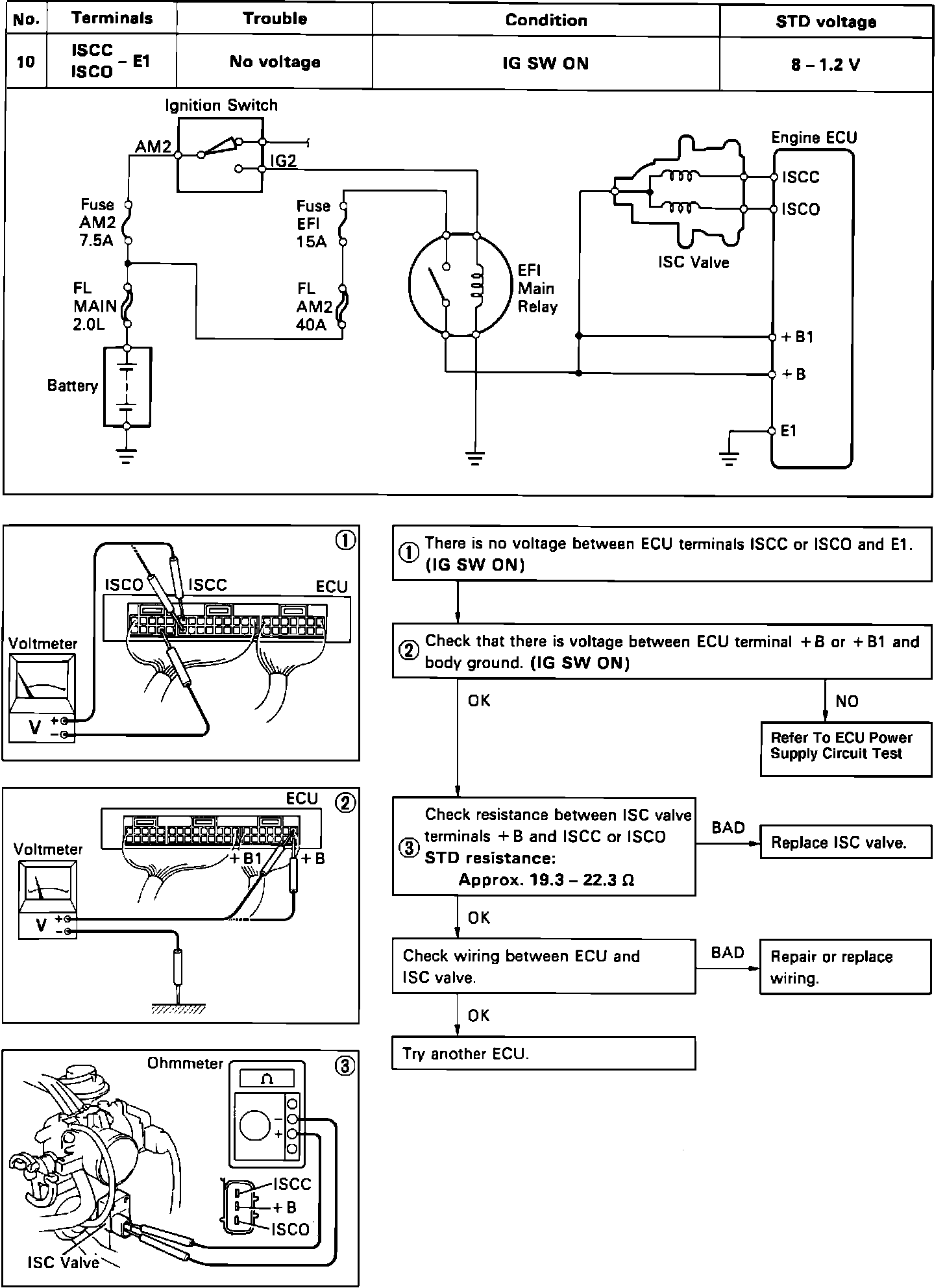

ISC Valve Circuit Test (w/o ECT):
