Symptom Related Diagnostic Procedures

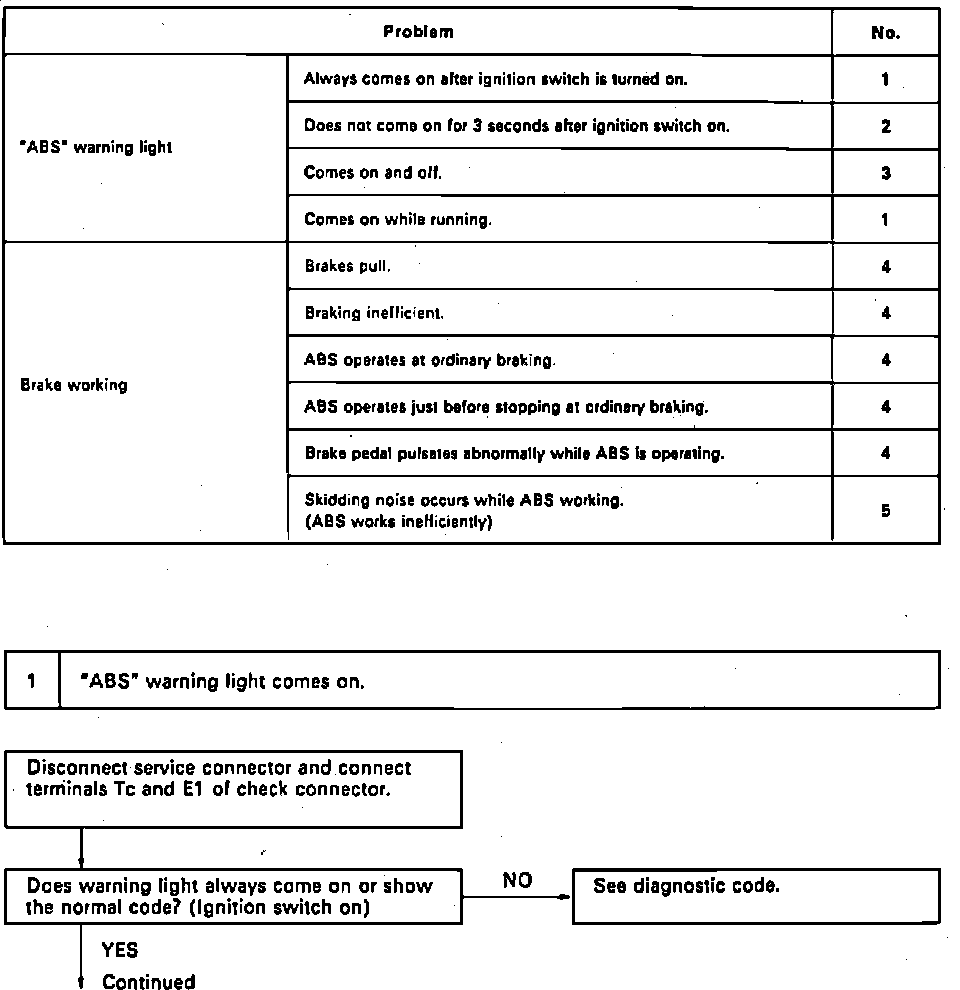

Fig. 17 Troubleshooting (Part 1 Of 6). MR2:

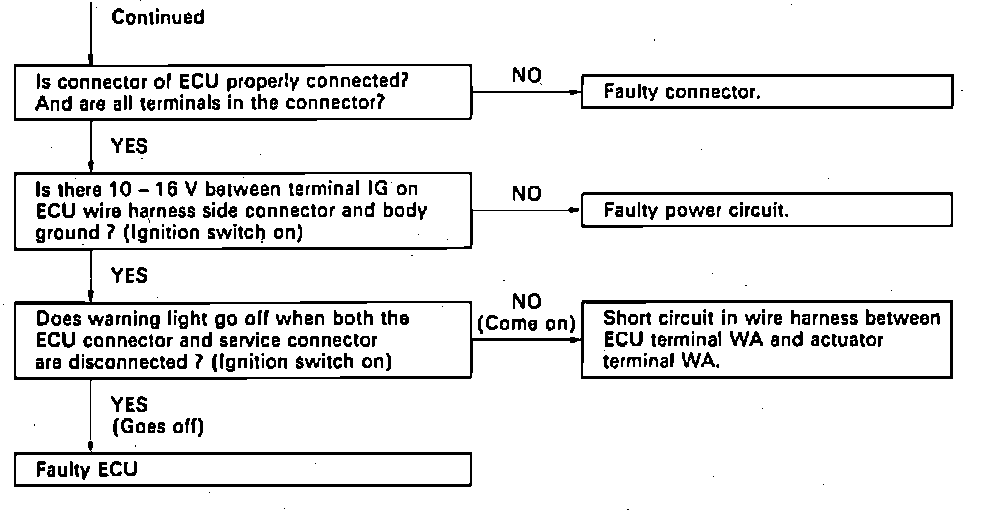

Fig. 17 Troubleshooting (Part 2 Of 6). MR2:

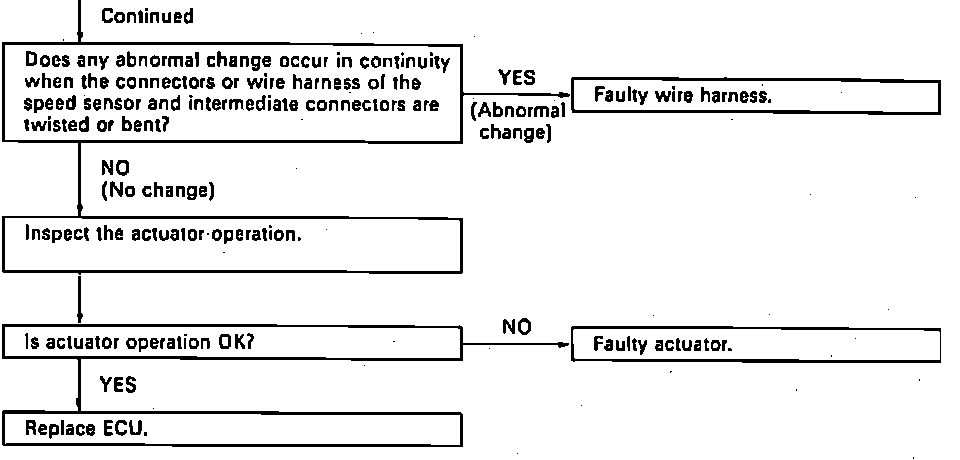

Fig. 17 Troubleshooting (Part 3 Of 6). MR2:

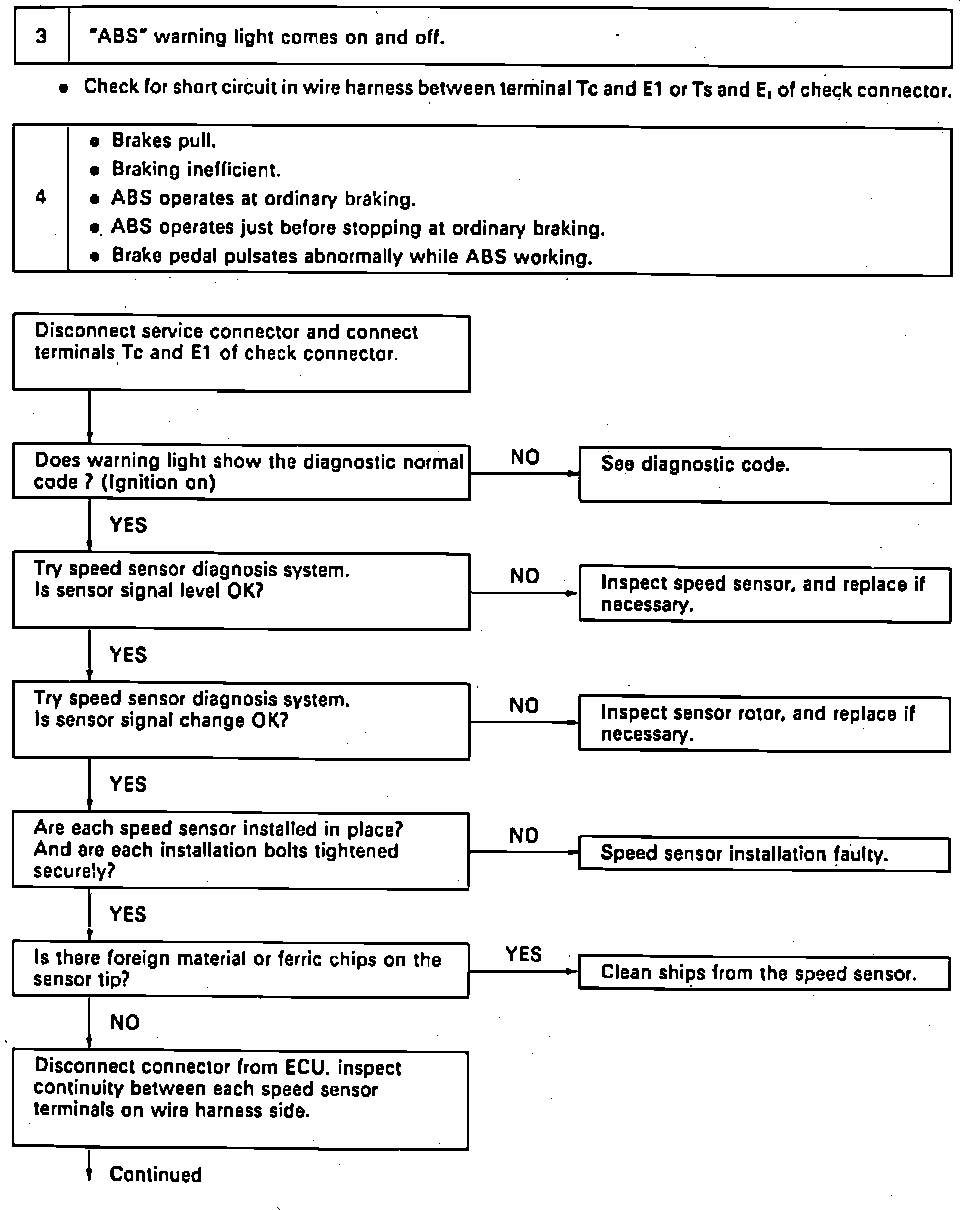

Fig. 17 Troubleshooting (Part 4 Of 6). MR2:

Fig. 17 Troubleshooting (Part 5 Of 6). MR2:
