Home >> Toyota >> 1991 >> MR2 L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Testing and Inspection >> System Circuit Test W/Computer Connector Connected

System Circuit Test W/Computer Connector Connected

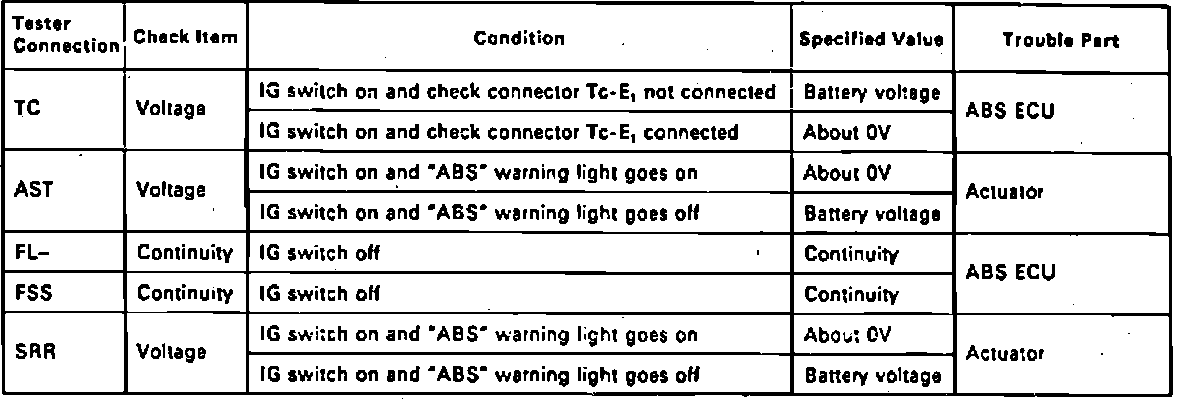

Fig. 78 Anti-lock Brake System Circuit Test (w/Computer Connector Connected) (Part 1 Of 2). MR2:



Fig. 78 Anti-lock Brake System Circuit Test (w/Computer Connector Connected) (Part 2 Of 2). MR2:
