Home >> Toyota >> 1991 >> MR2 L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 71 >> Circuit Test >> Circuit Test (M/T)

Circuit Test (M/T)

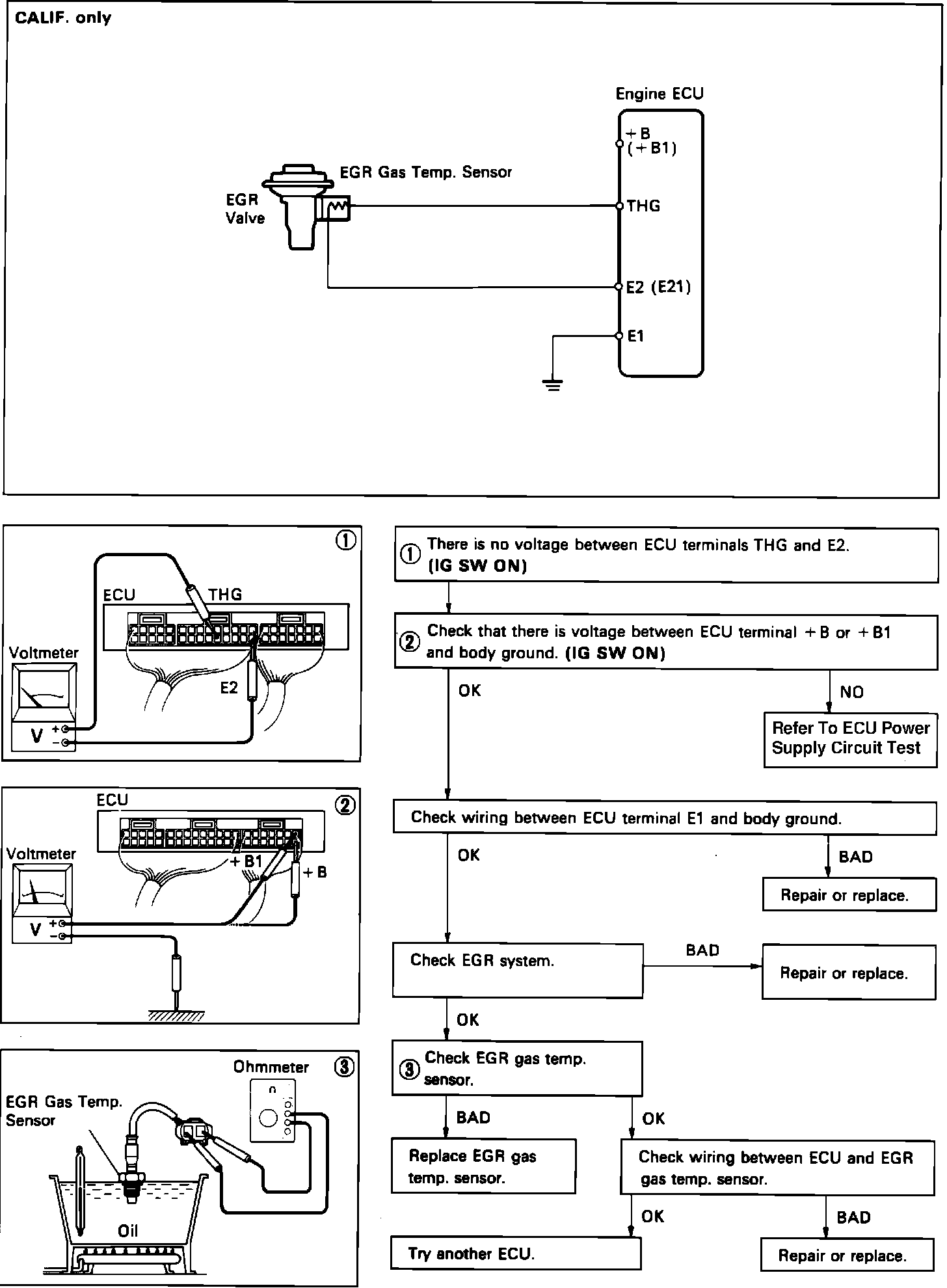

EGR Gas Temperature Sensor Circuit Test (w/o ECT):
