Home >> Toyota >> 1991 >> MR2 L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 41 >> DTC 41 - Throttle Position Sensor (TPS) A/T >> Circuit Test

Circuit Test

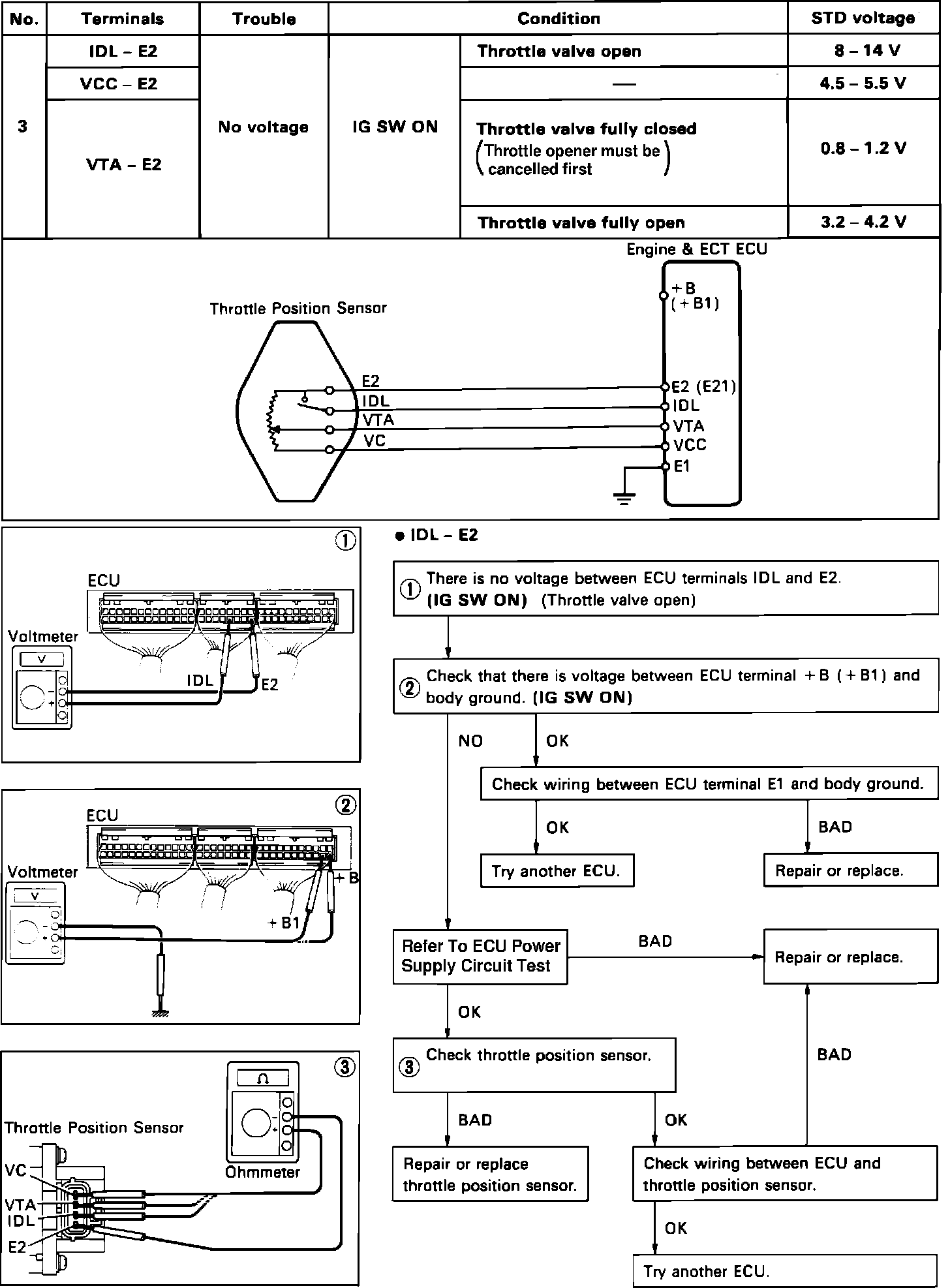

Throttle Position Sensor (TPS) Circuit Test (w/ ECT):
