Home >> Toyota >> 1991 >> MR2 L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 14 >> Circuit Test (A/T)

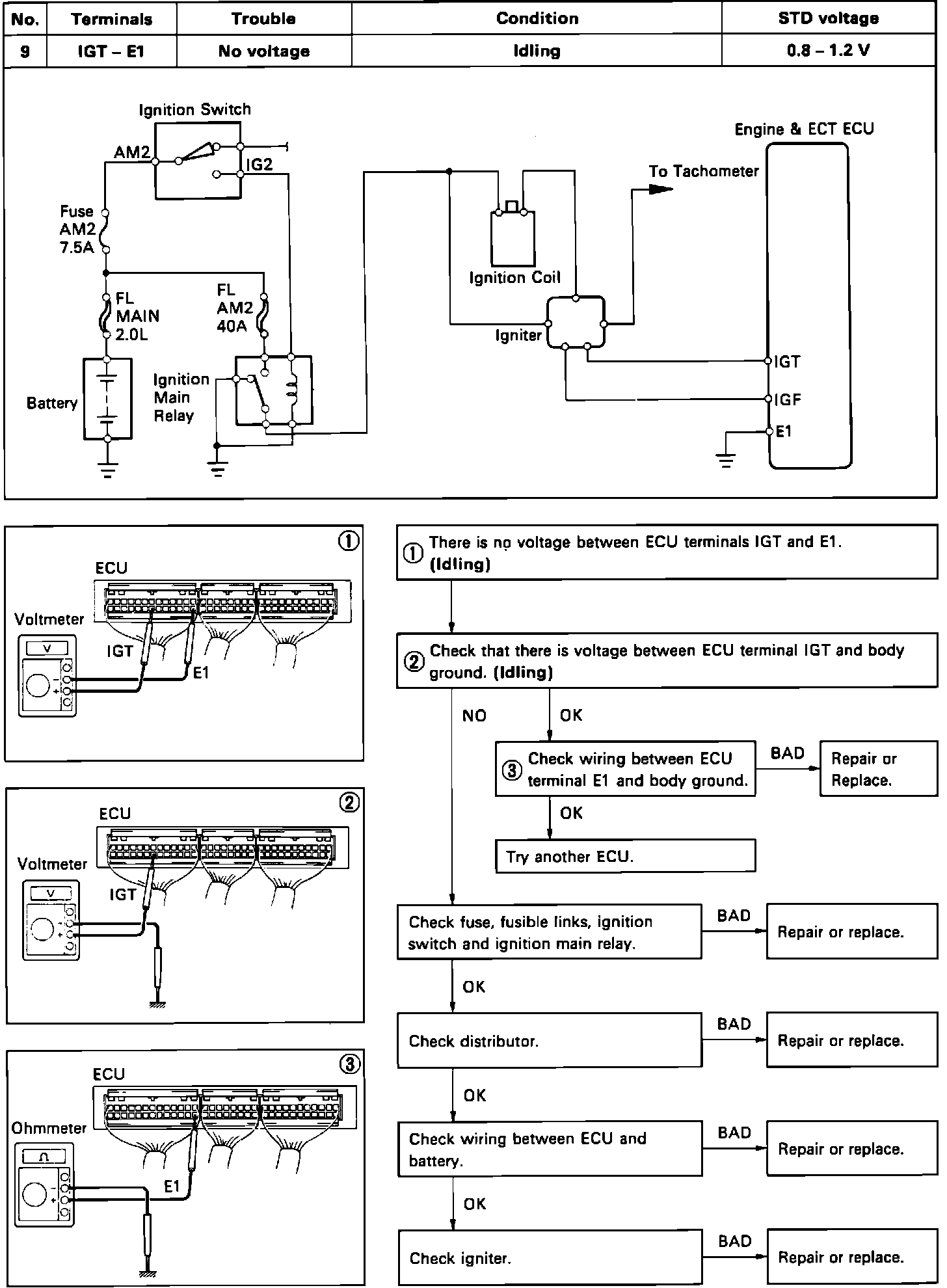

Circuit Test (A/T)

Ignition Signal Circuit Test:
