MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
ABS (Antilock Brake System)
>>
ABS Diagnosis System
ABS Diagnosis System

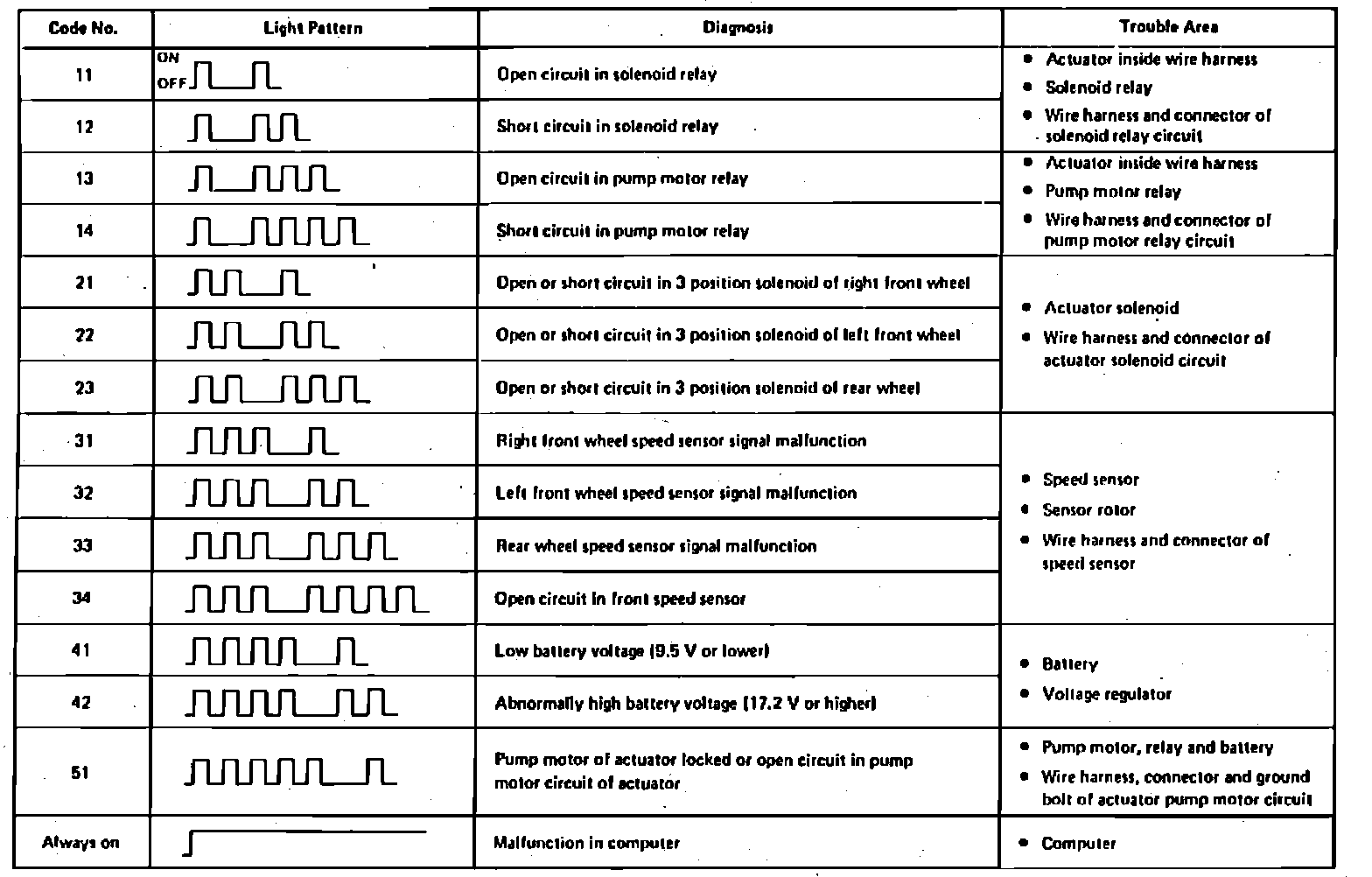

Fig. 36 Diagnostic (Trouble) Code. MR2 & Supra, Except 1992:
