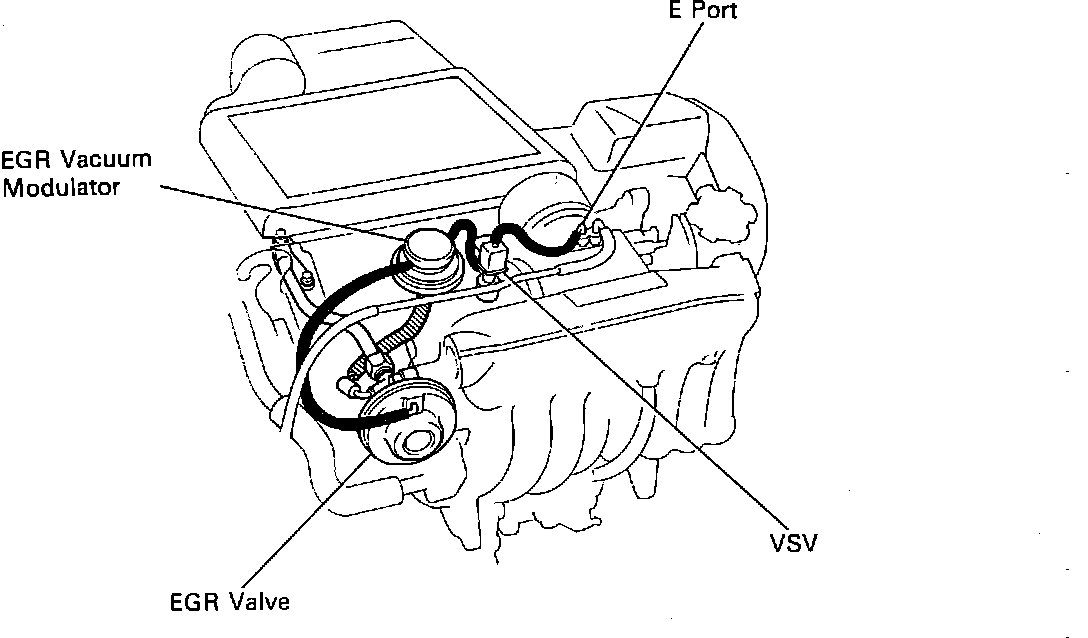

Exhaust Gas Recirculation: Locations

Exhaust Gas Recirculation System:

EGR VALVE: Rear, RH side of engine

VACUUM MODULATOR: Top, RH side of engine

VACUUM SWITCHING VALVE (VSV): Top, center of engine
