Receiver Dryer: Service and Repair

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

2. REMOVE LEFT SIDE FRONT FENDER LINER AND UNDER COVER

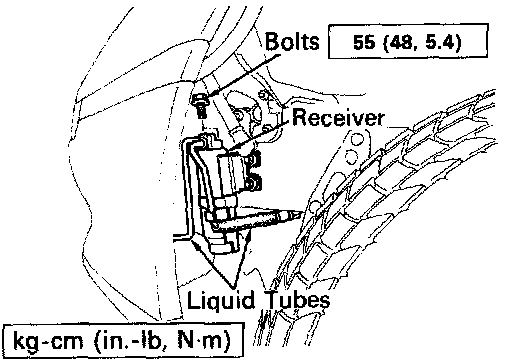

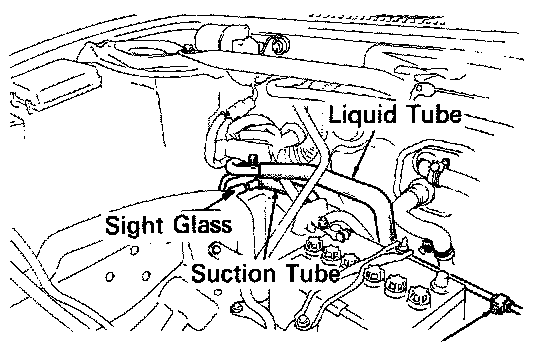

3. DISCONNECT TWO LIQUID TUBES FROM RECEIVER

HINT: Cap the open fittings immediately to keep moisture out of the system.

4. REMOVE RECEIVER FROM RECEIVER HOLDER





INSTALLATION

1. INSTALL RECEIVER IN RECEIVER HOLDER

HINT: Do not remove the blind plugs until ready for connection.

2. CONNECT TWO LIQUID TUBES TO RECEIVER

Torque: 55 kg-cm (48 in.-lb, 5.4 N.m)

3. REINSTALL FENDER LINER AND UNDER COVER.

4. IF RECEIVER WAS REPLACED, ADD COMPRESSOR OIL TO COMPRESSOR

Add 20 cc (0.7 fl.oz.)

Compressor oil: DENSOOIL 6. SUNISO NO.5G5 or equivalent

5. EVACUATE AIR FROM REFRIGERATION SYSTEM

6. CHARGE SYSTEM WITH REFRIGERANT AND INSPECT FOR LEAKAGE OF REFRIGERANT

Specified amount: 850 ± 50 g (29.98 ± 1.76 oz)
