Home
>>
Toyota
>>
1991
>>
Cressida L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse and Fusible Link Locations
>>
Relay Box
Relay Box

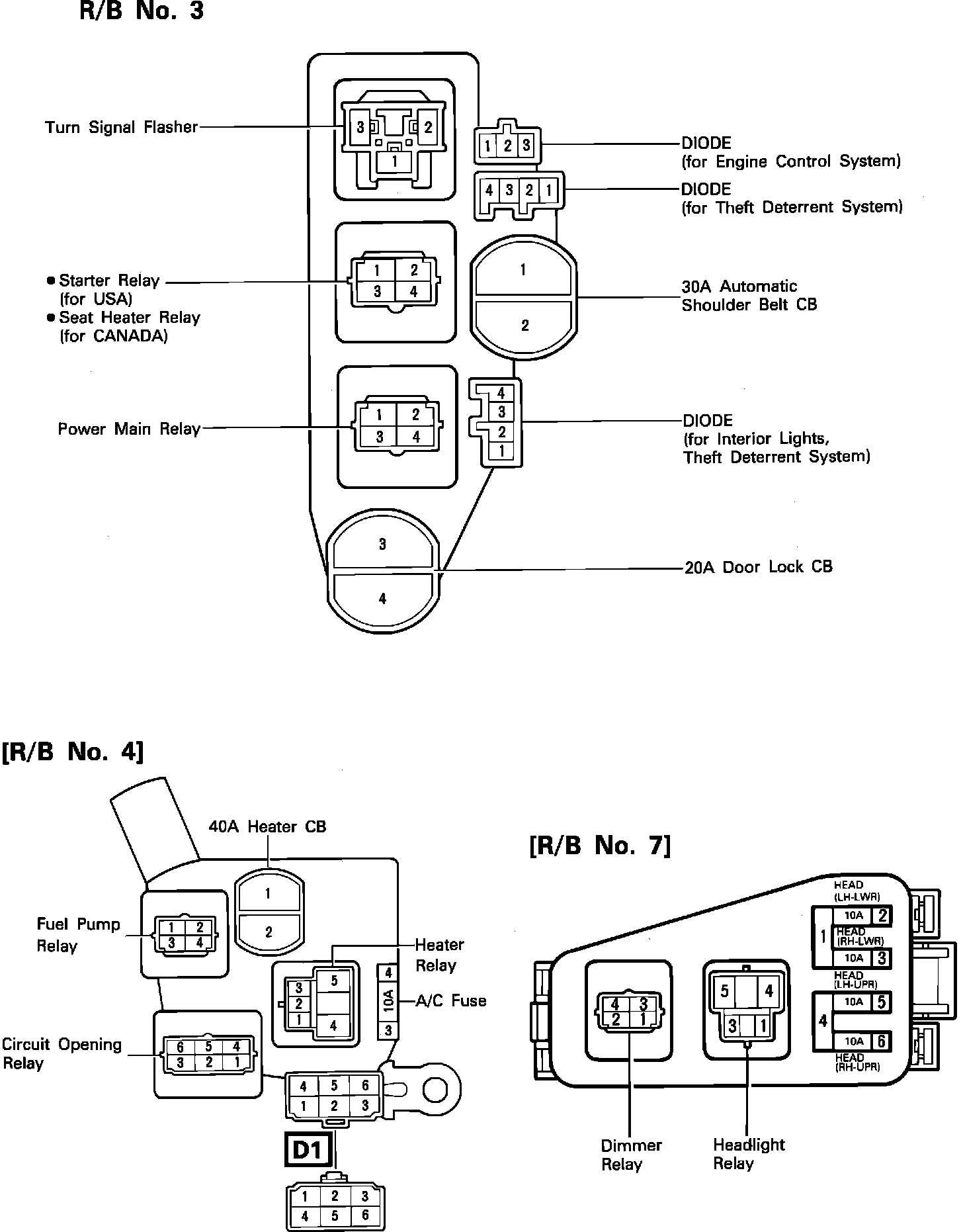

Fuse Panel: Relay Boxes No. 3 (Left Kick Panel), No. 4 (Right Kick Panel) & No. 7 (Engine Compartment Left):
