Home >> Toyota >> 1991 >> Cressida L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Control Module >> Locations

Seat Belt Control Module: Locations

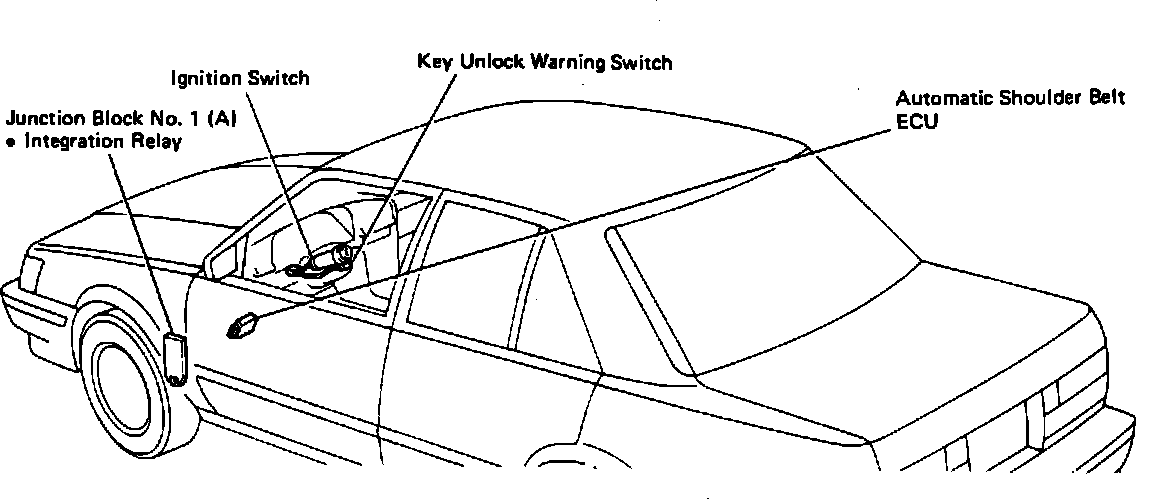

Ignition Switch:

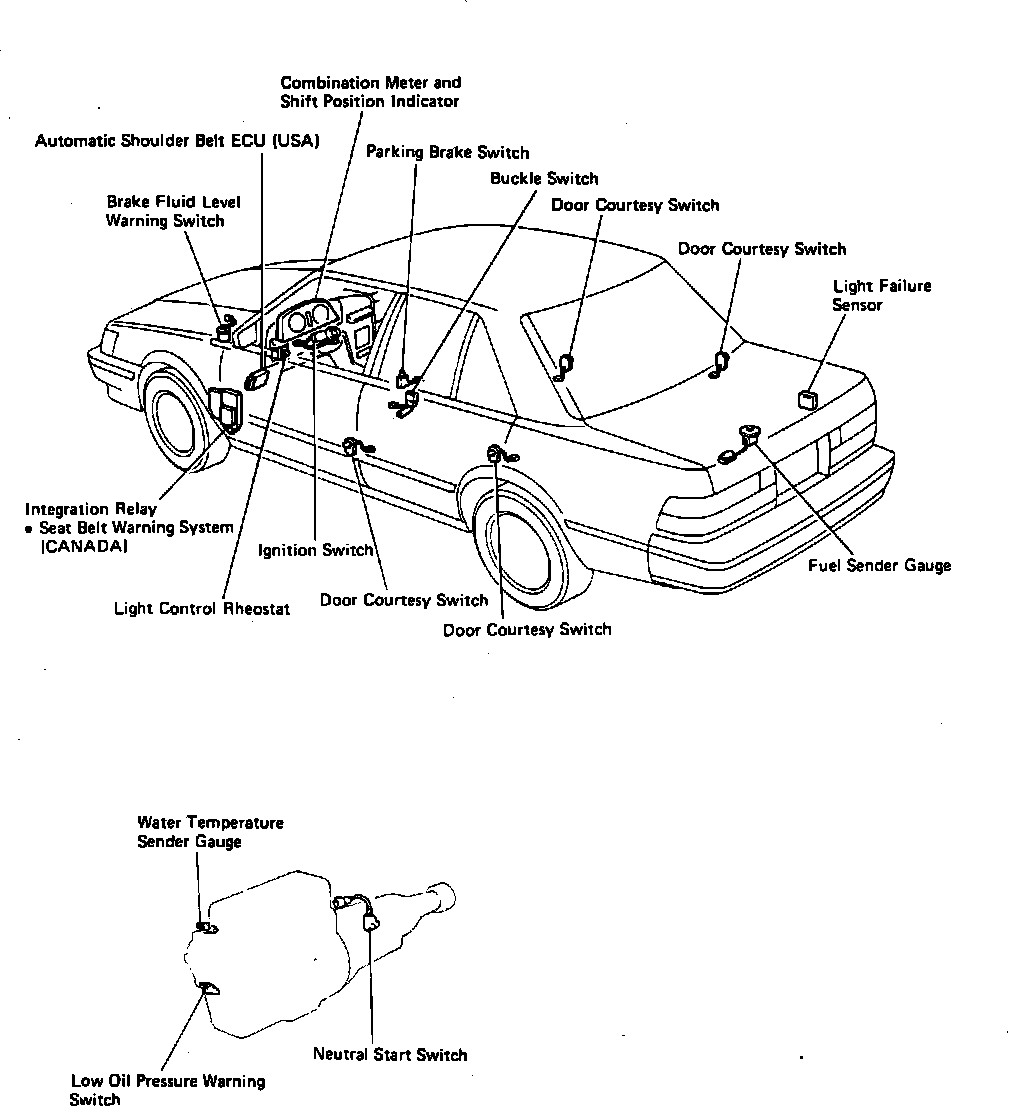

Combination Meter System Components:

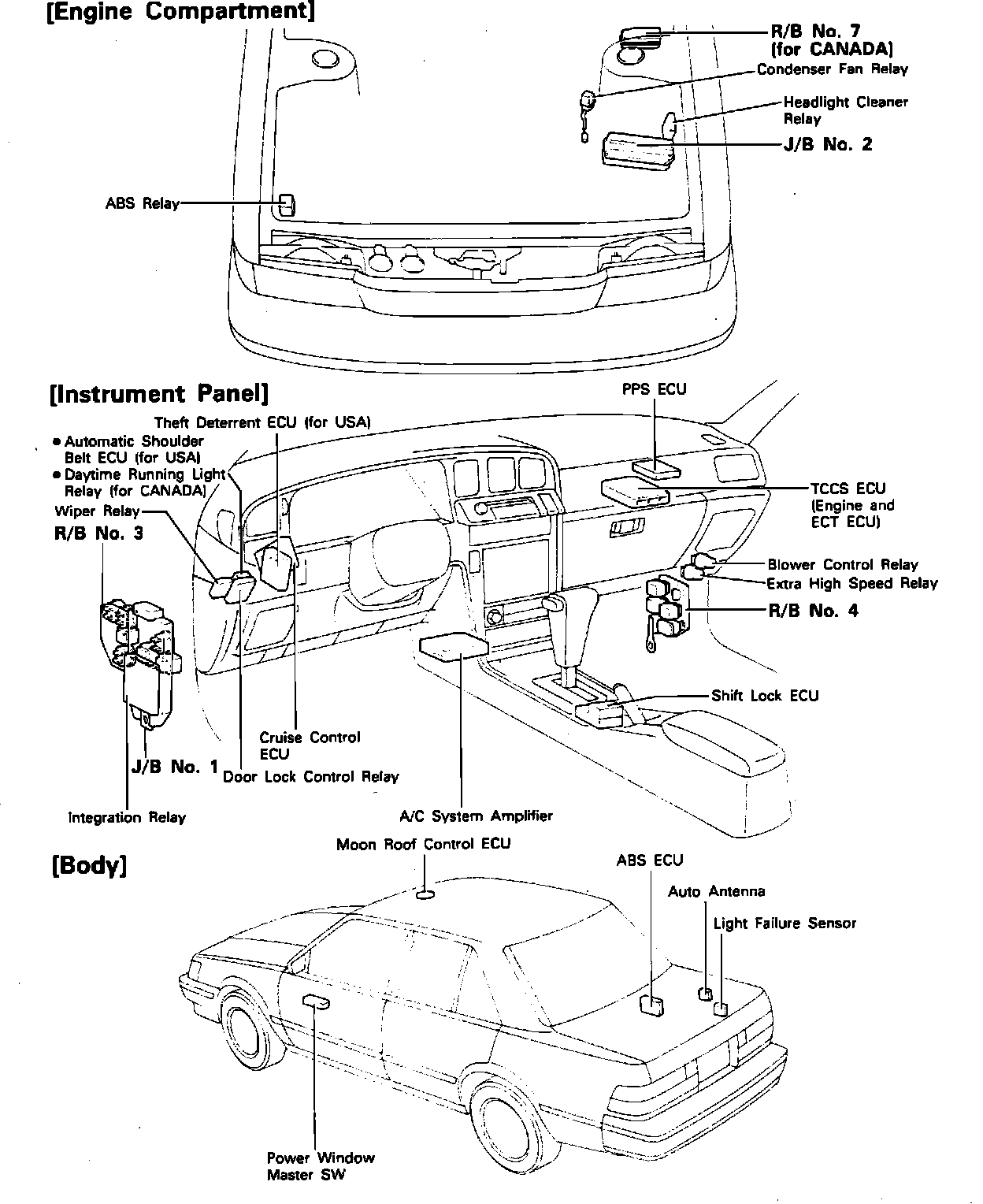

Relay & Electronic Control Unit Locations:




Behind LH Side Of I/P
