Headlight Control Relay
Headlight Control Relay
Headlight Control Relay Testing:
1.

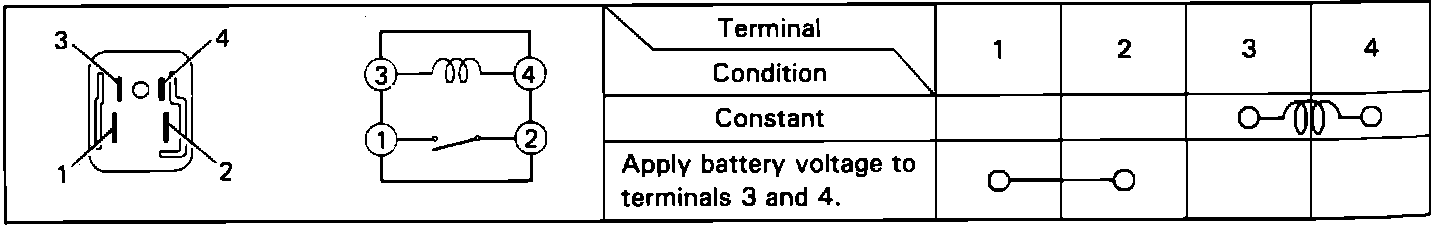

Check relay as described on image chart.
2.
If not as specified, replace relay.
