Evaporative Emissions System: Locations

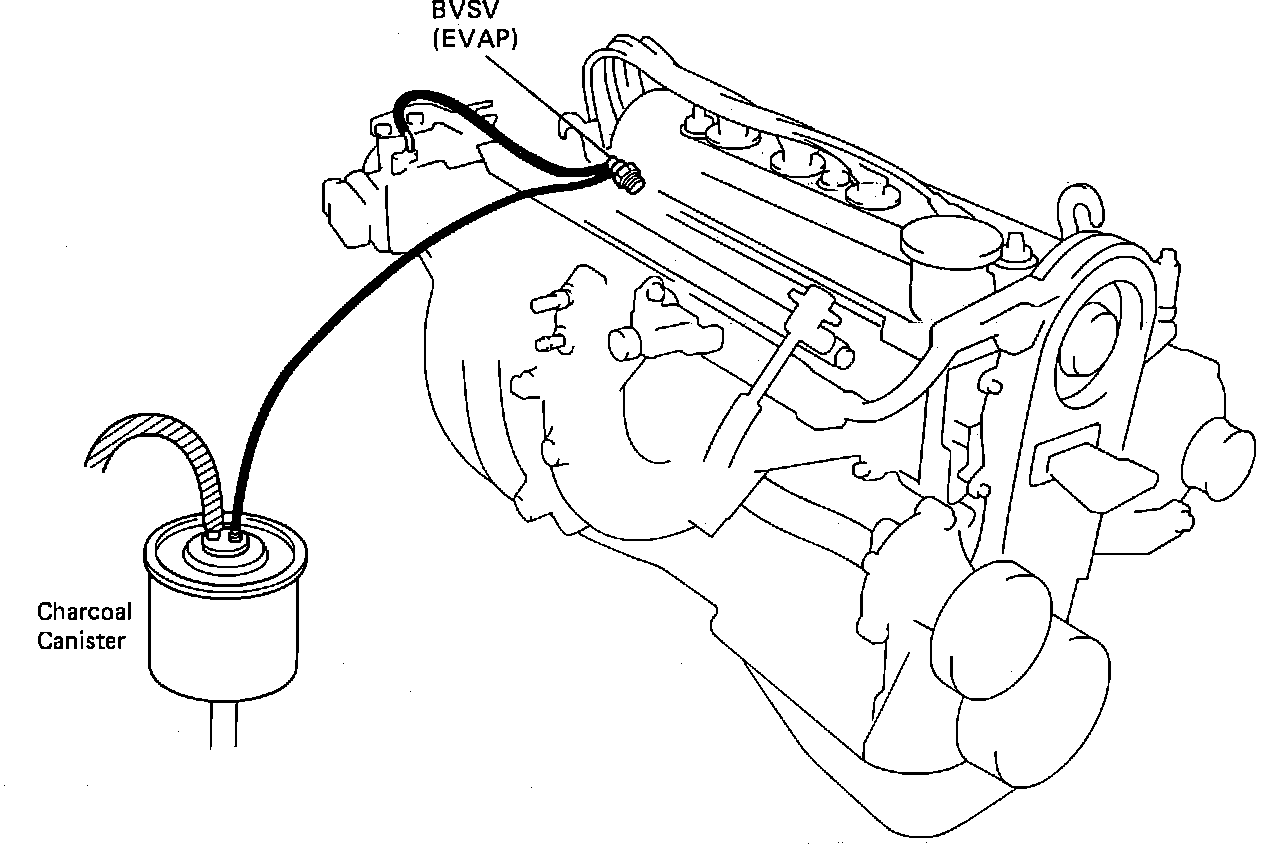

Emission Component Layout:

BIMETAL VACUUM SWITCHING VALVE (BVSV): Top, rear of engine

CHARCOAL CANISTER: Rear, LH side of engine compartment

FUEL TANK CHECK VALVE: In fuel filler cap

PURGE CHECK VALVE: In top of charcoal canister

PURGE PORT: Side of throttle valve housing
