Home
>>
Toyota
>>
1991
>>
Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

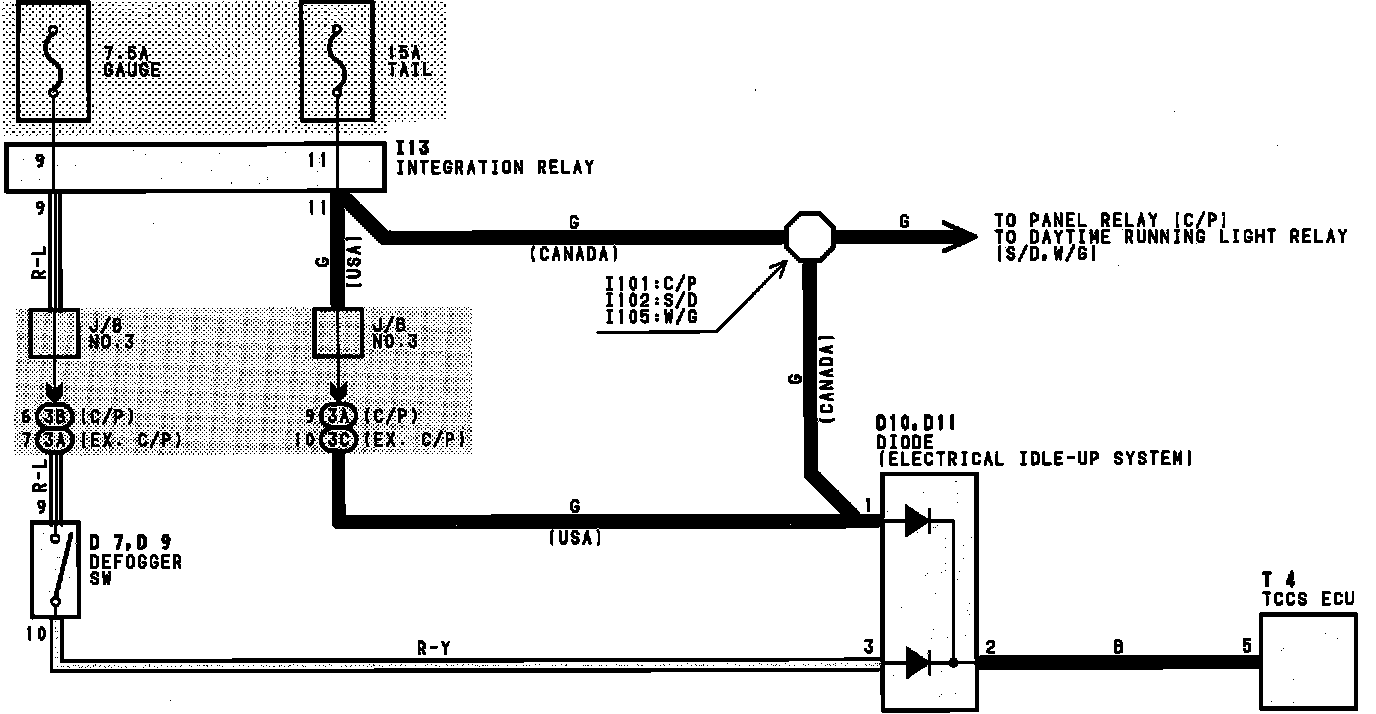

Electrical Idle-Up System (4A-FE Engine):
