Toyota
>>
1991
>>
Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Relay Box
Relay Box

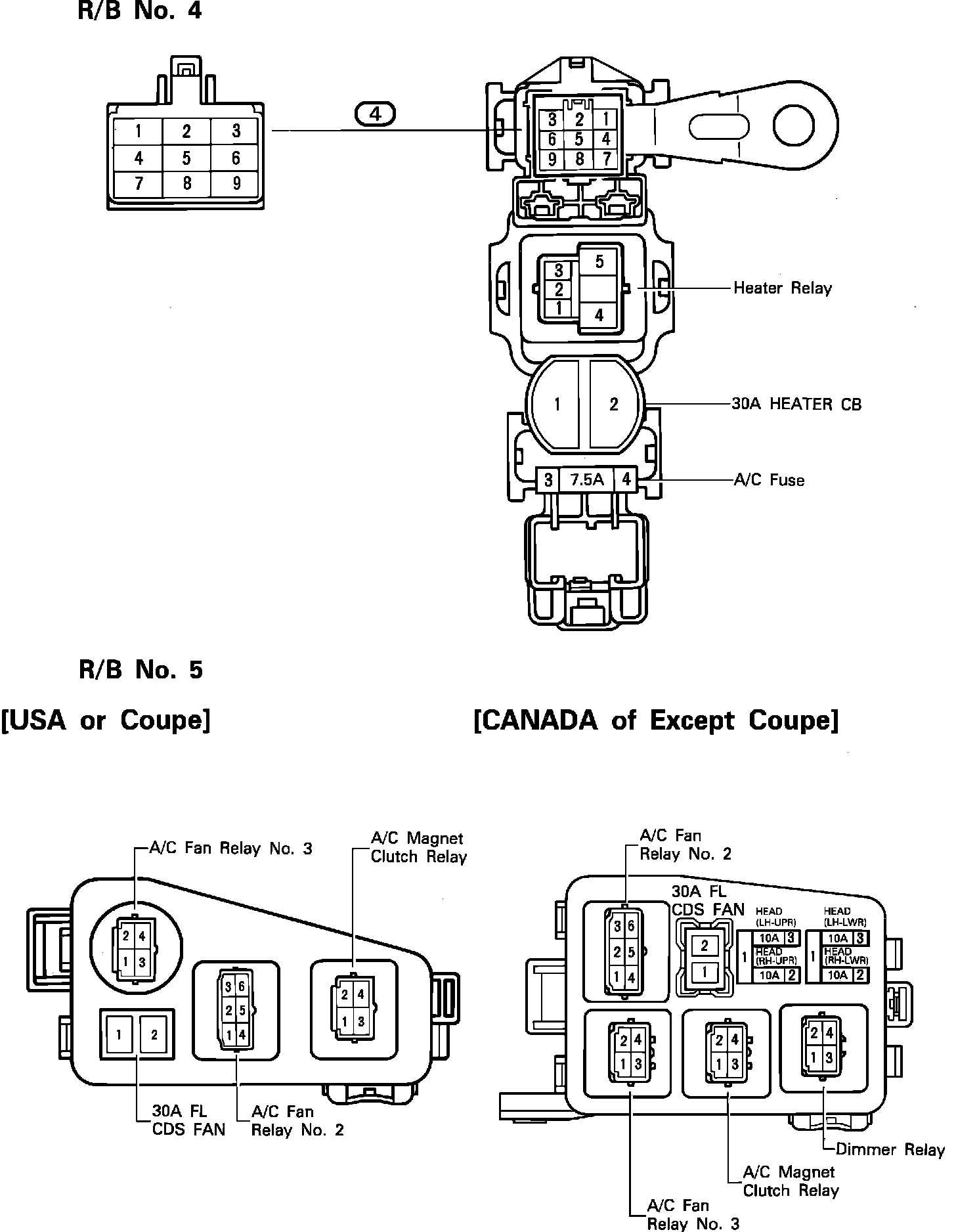

Fuse Panel: Relay Boxes No. 4 (Right Kick Panel) & No. 5 (Engine Compartment Left):
