Power and Ground Distribution
>>
Fuse
>>
Locations
>>
J/B No.2
J/B No.2
Fuse Panel: Junction Block No. 2 (Engine Compartment Left):

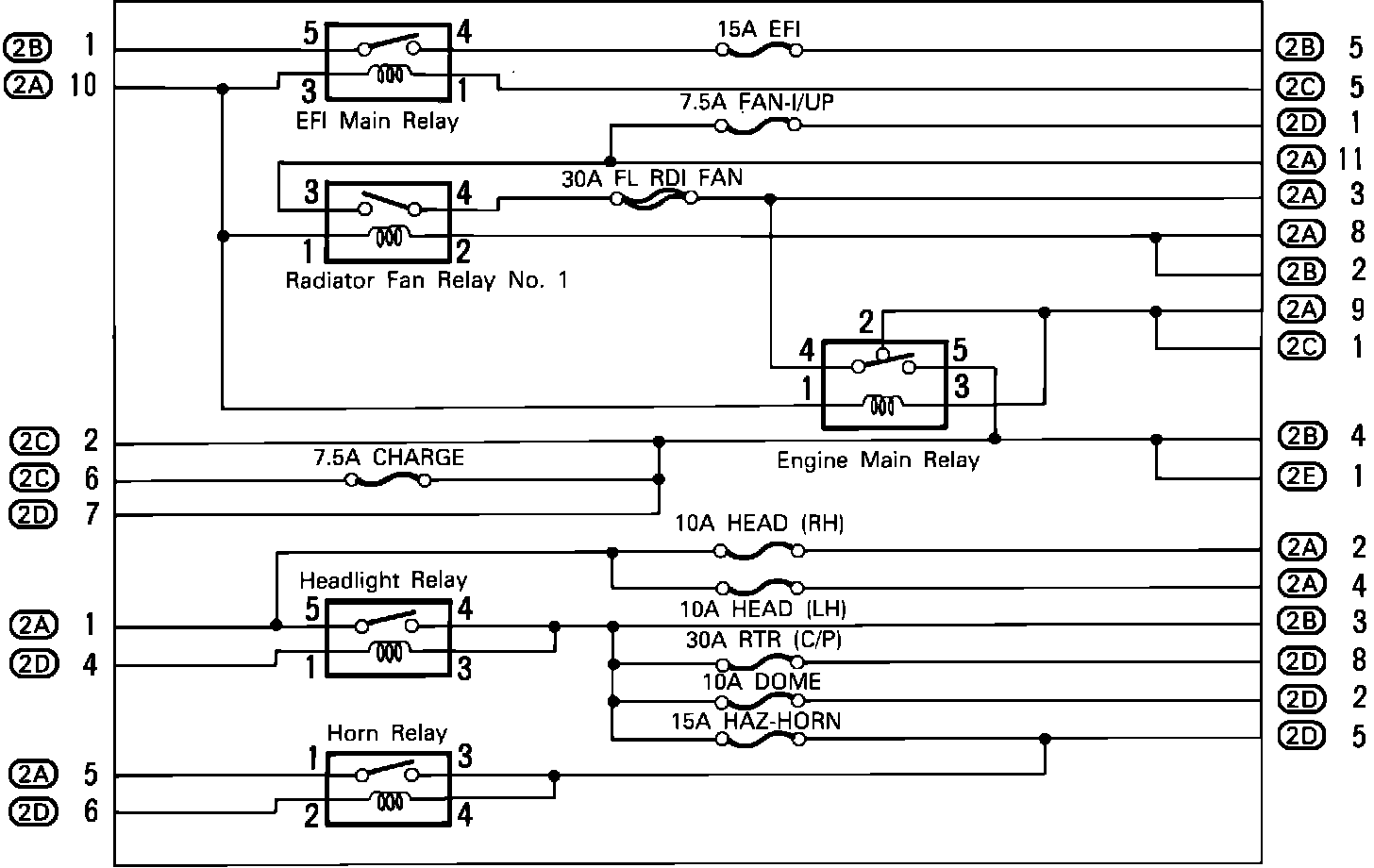

Fuse Panel: Junction Block No. 2 (Inner Circuit):
