Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

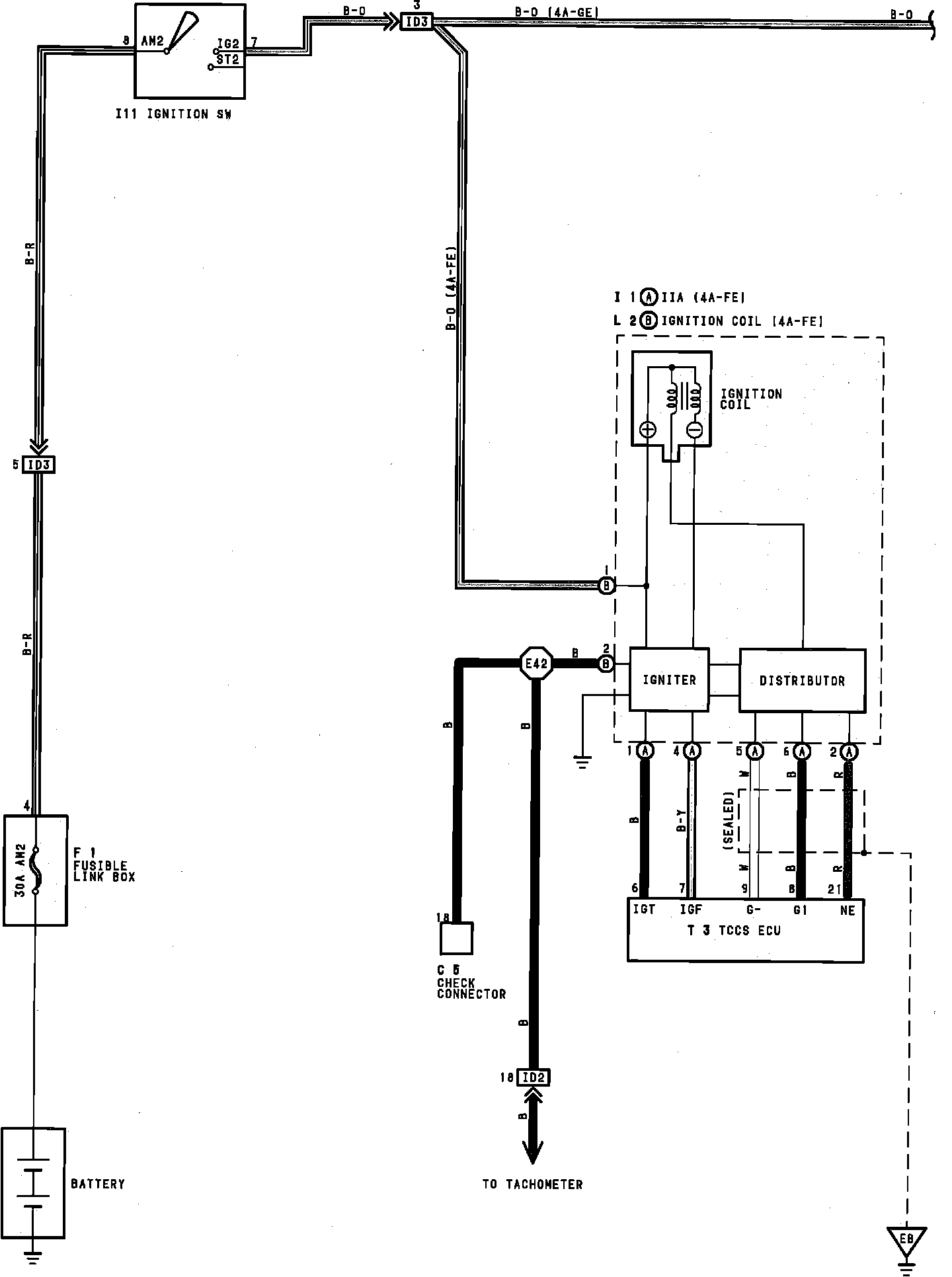

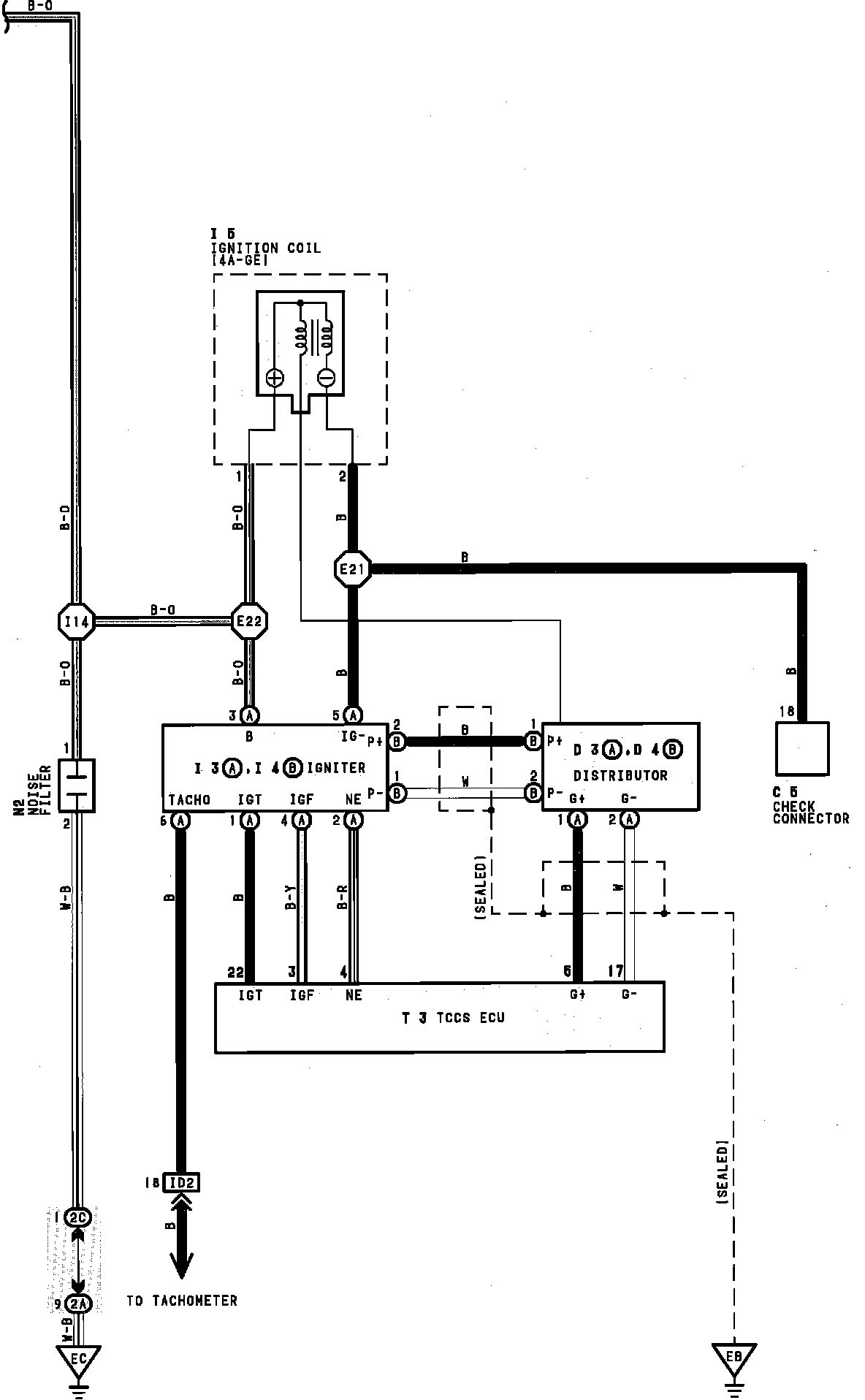

IGNITION SYSTEM
:
Ignition System:
Ignition System:
