Home
>>
Toyota
>>
1991
>>
Celica L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

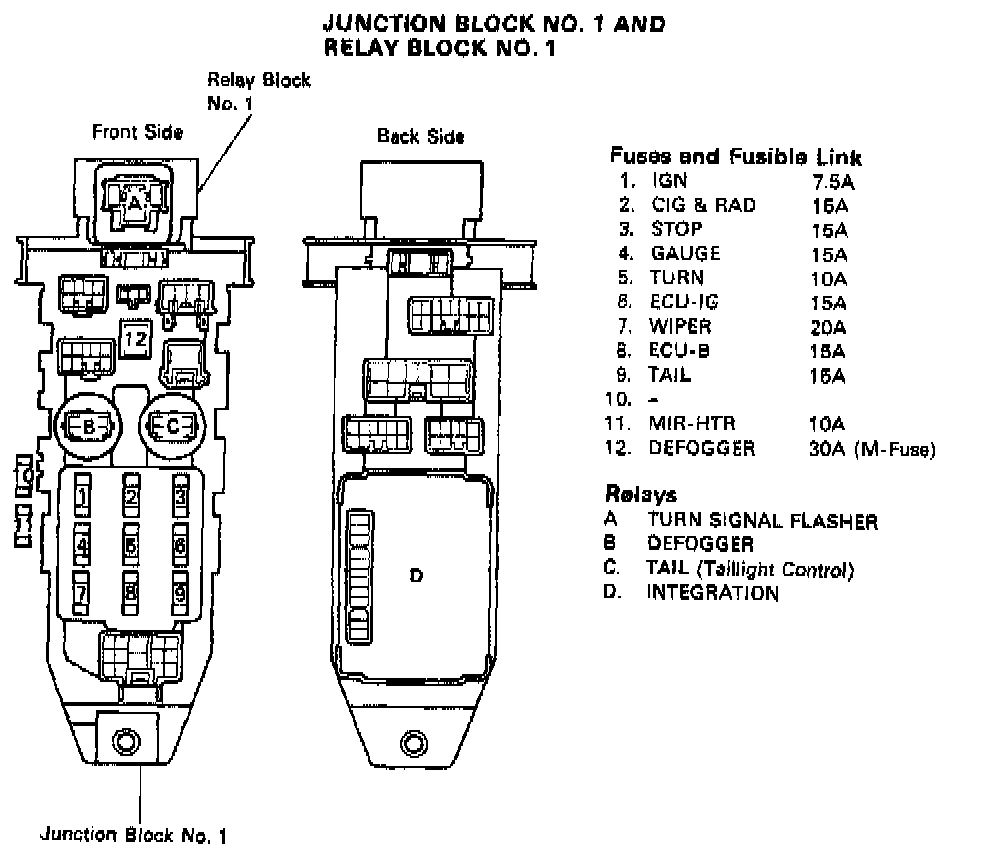

Relay Block No. 1
Relay Block No. 1
Power Source Components:
Relay Identification:
Behind LH Kick Panel
