Celica L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>
VF / Check Connector
VF / Check Connector
02 / VF / CHECK CONNECTOR TEST

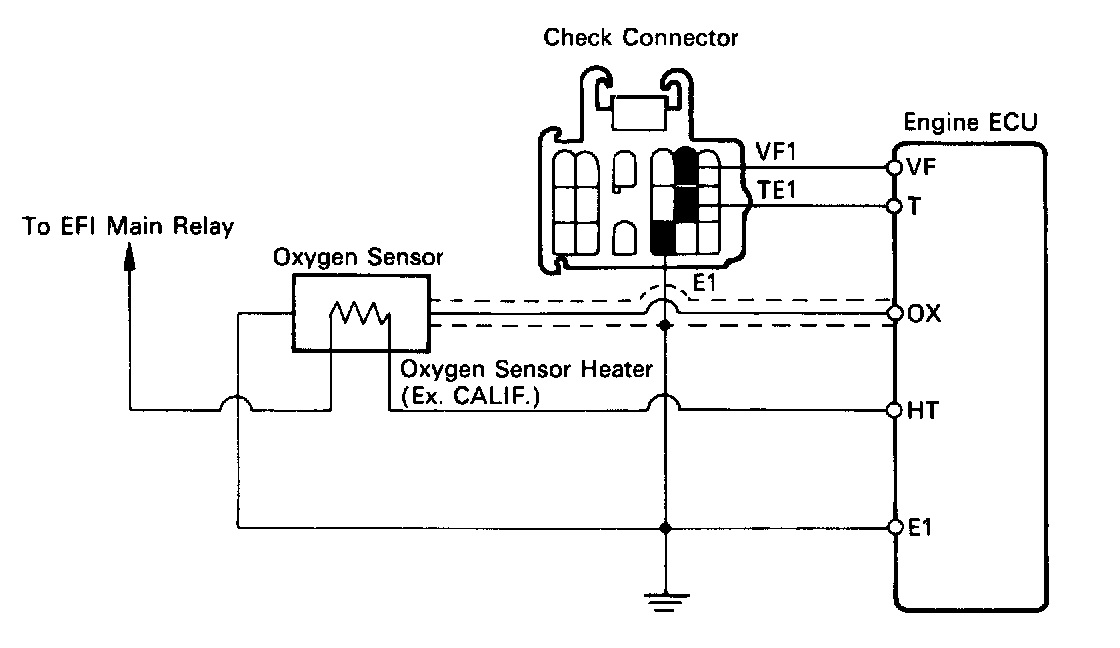

Part 1 Of 2:

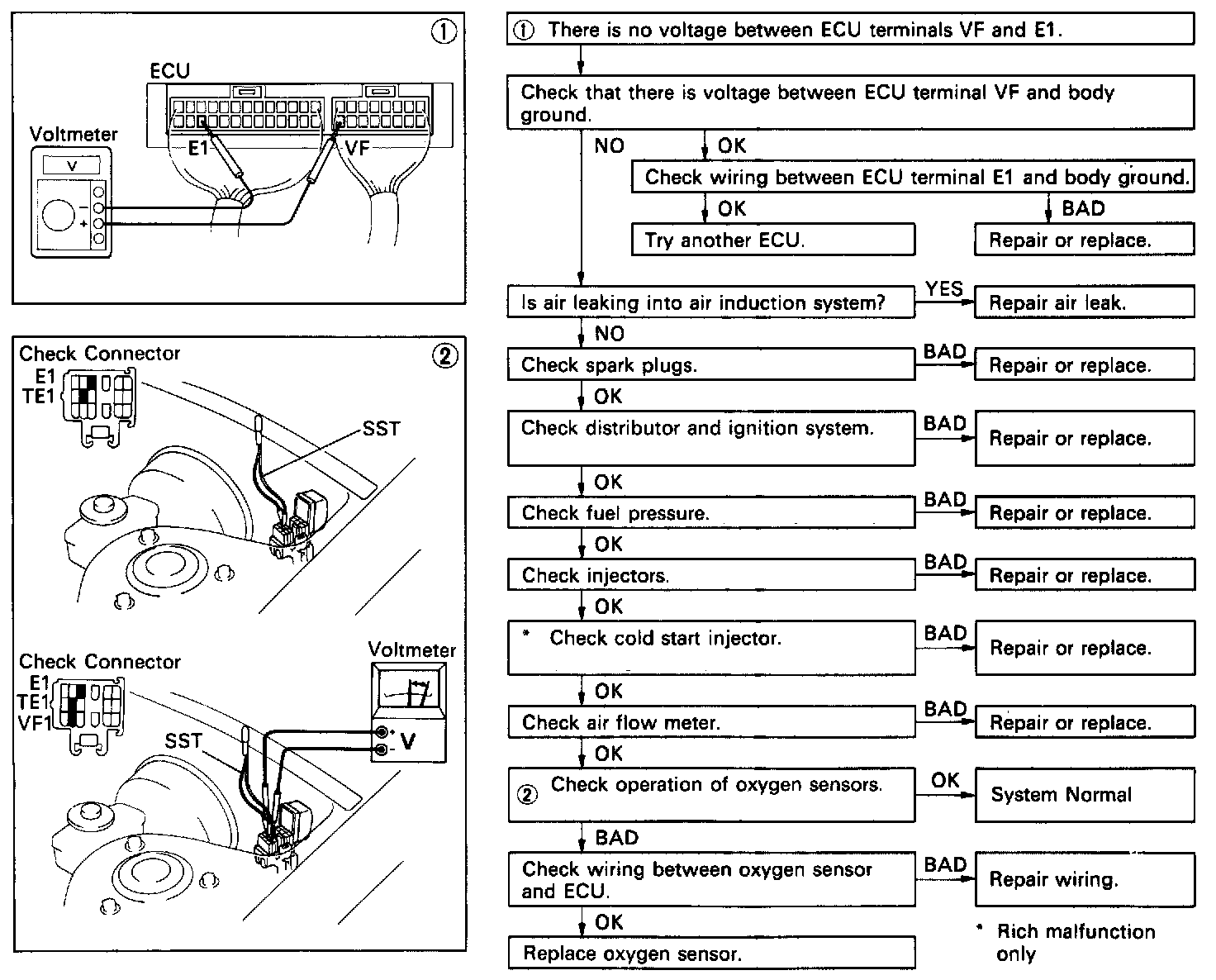

Part 2 Of 2:
