EGR Gas Temperature Sensor (California Only)
EGR Gas Temperature Sensor (California Only)

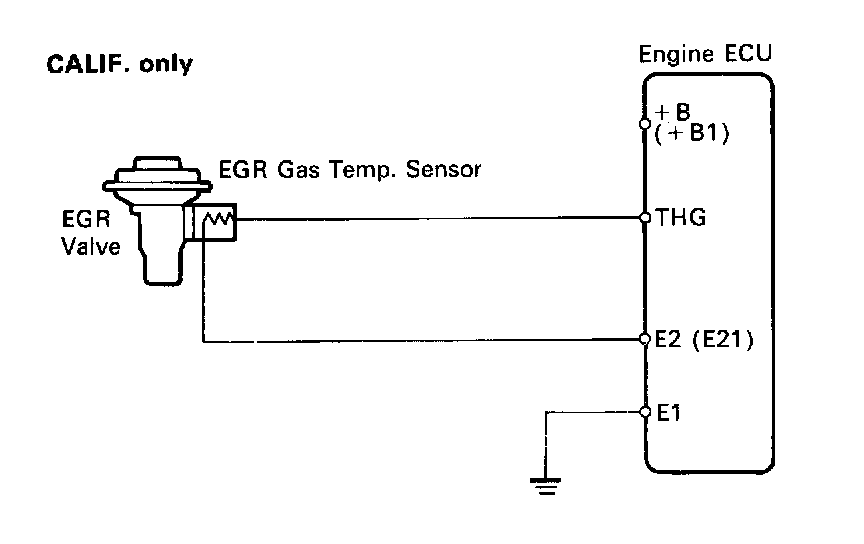

THG / EGR GAS TEMP. SENSOR (California Only)

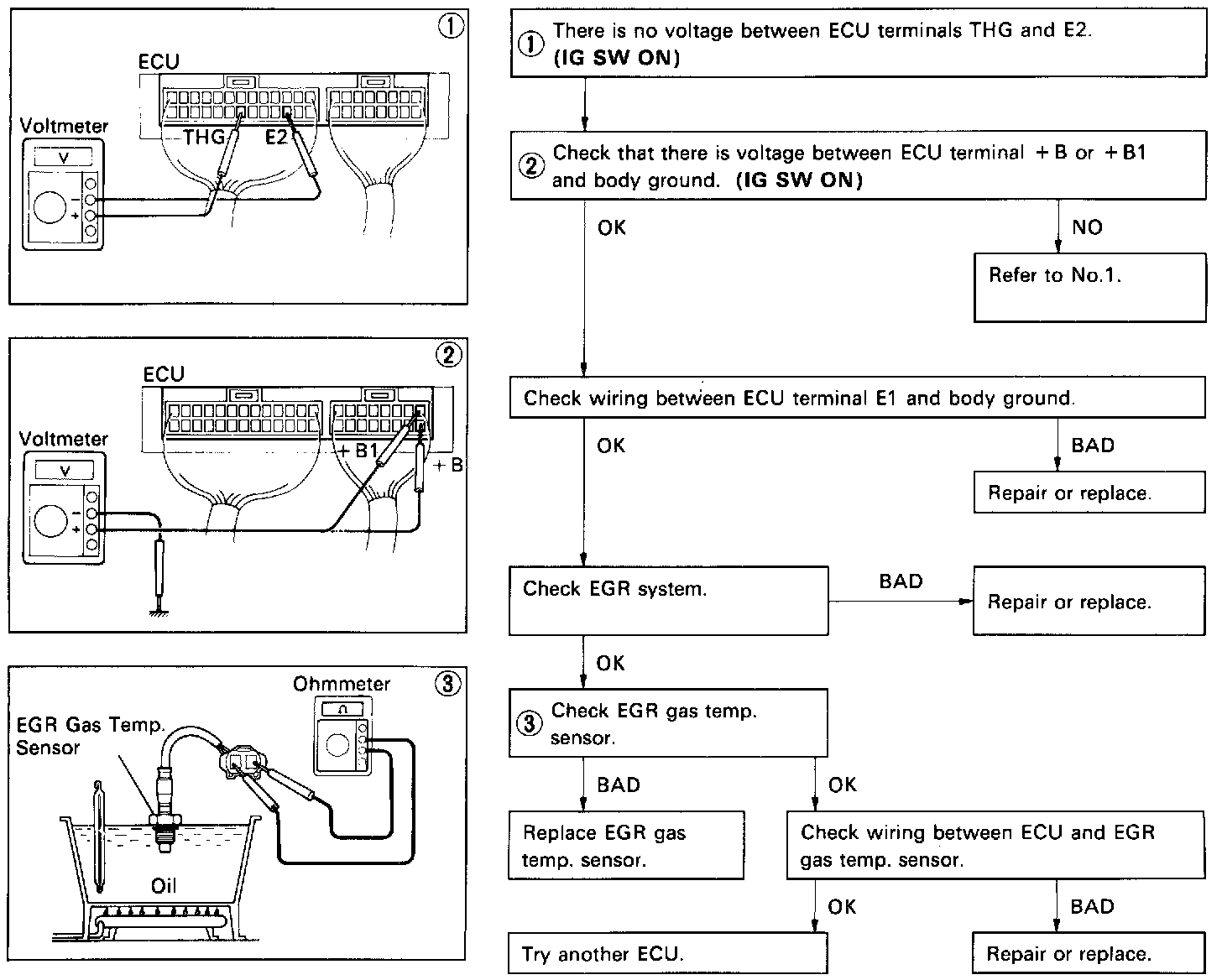

Part 1 Of 2:
Part 2 Of 2:
