Home >> Toyota >> 1991 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> Compressor Clutch Relay >> Locations >> USA

USA

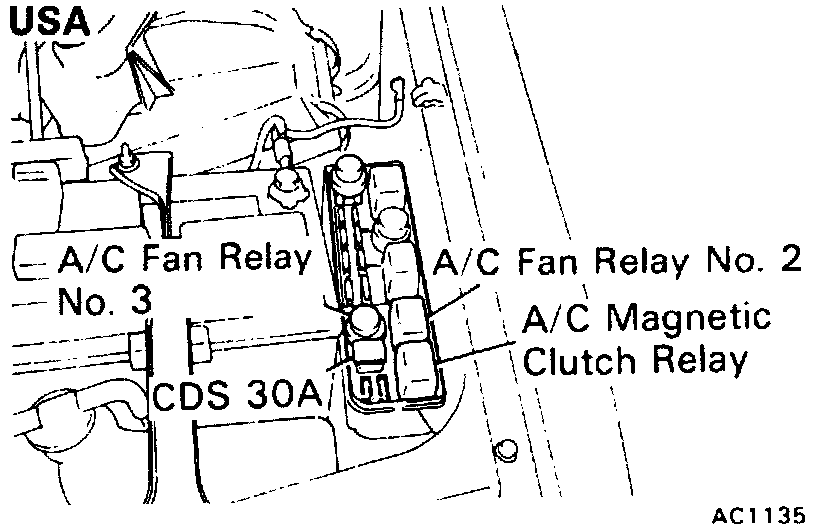

Relay Locations, USA:






Located in the fuse/relay box next to the battery, driver's side of the engine compartment.
