Home
>>
Toyota
>>
1991
>>
Camry Sedan 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse and Fusible Link Locations
>>
Relay Box
>>
Number 2
Number 2

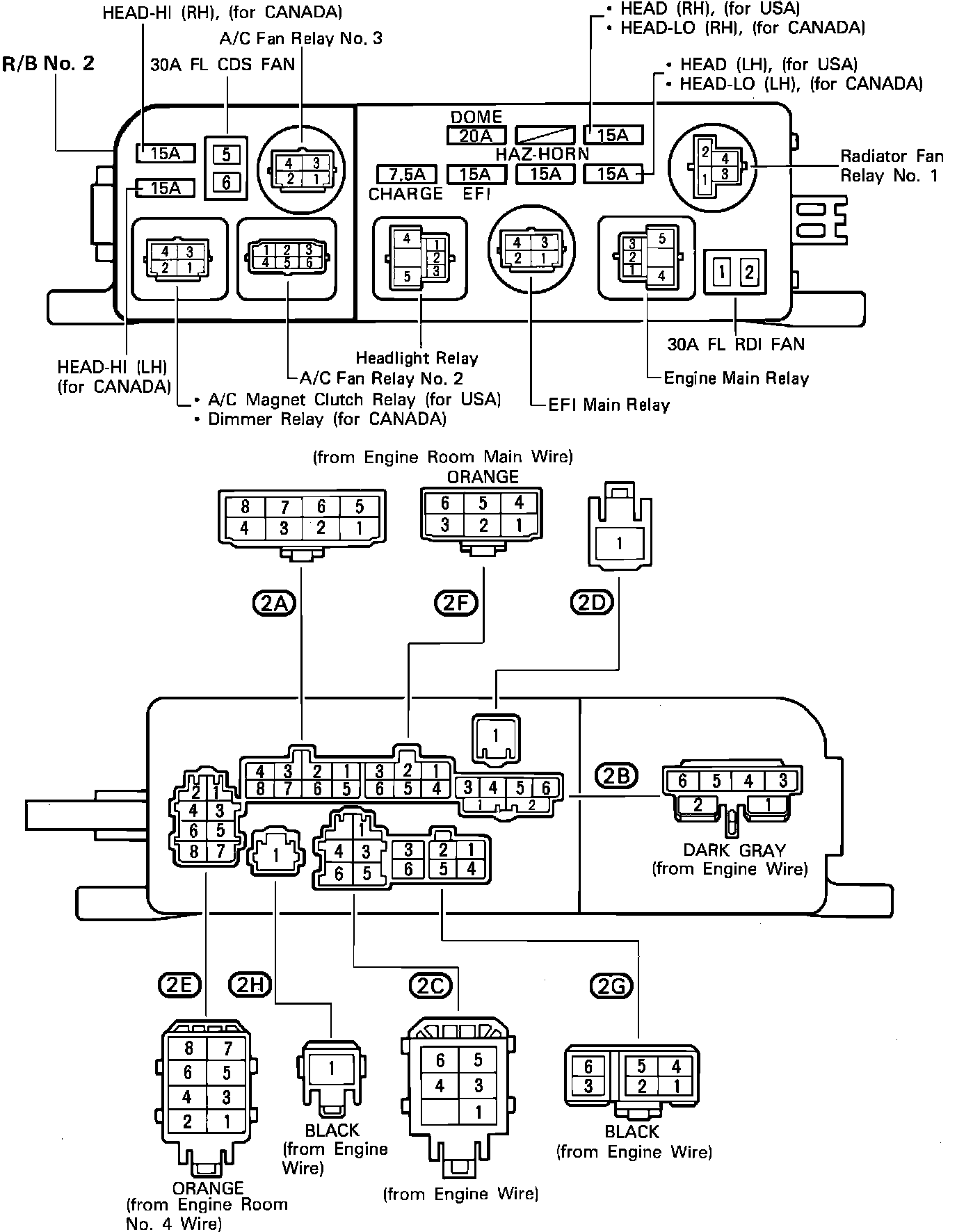

Fuse Panel: Junction Block No. 2 & Relay Box No. 2 (Engine Compartment Left):
