Home >> Toyota >> 1991 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 41 >> DTC 41 - Throttle Position Sensor (TPS) W/O ECT >> Circuit Test

Circuit Test

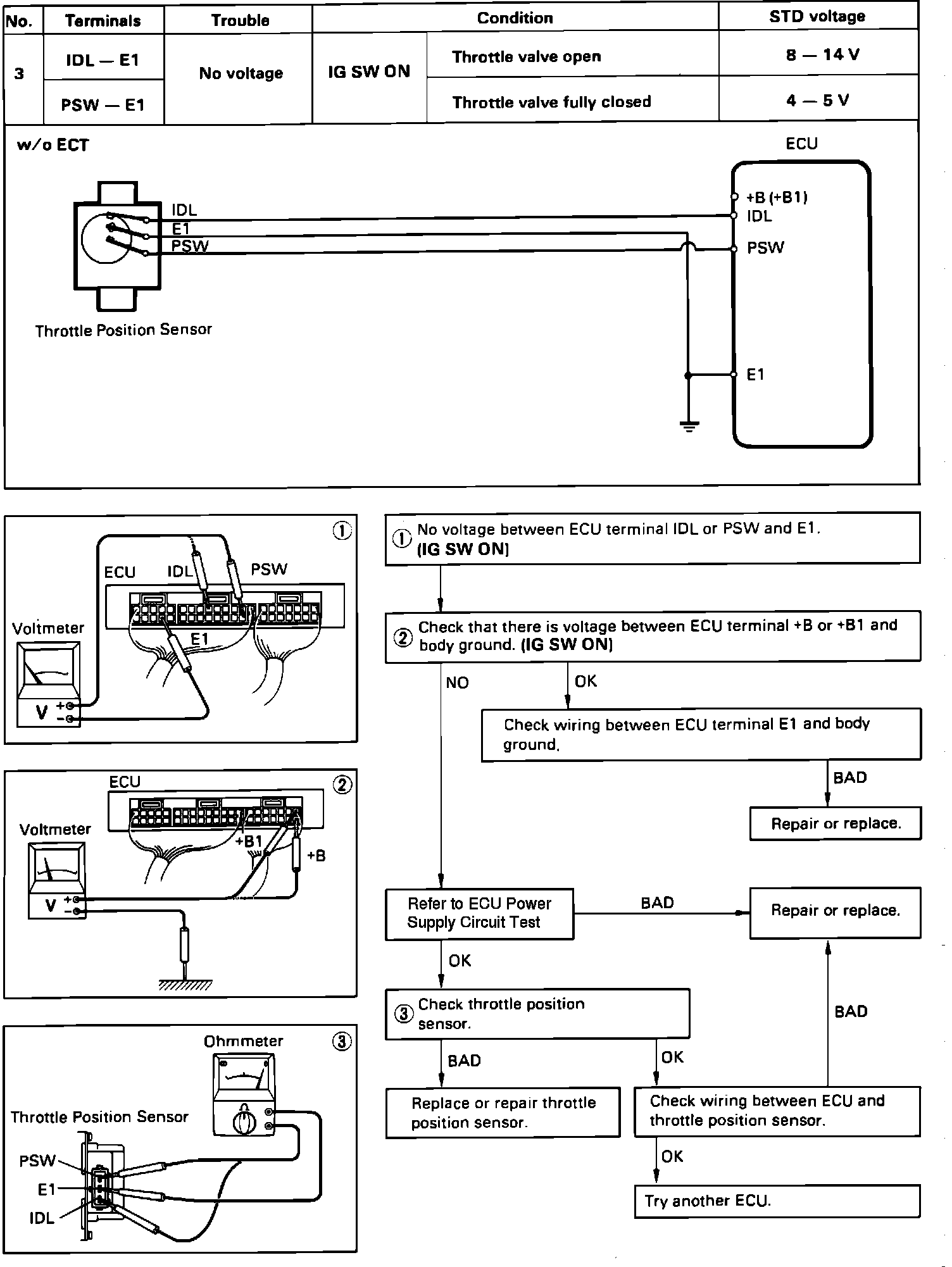

TPS Circuit Test (w/o Electronic Controlled Transaxle):
