Circuit Test

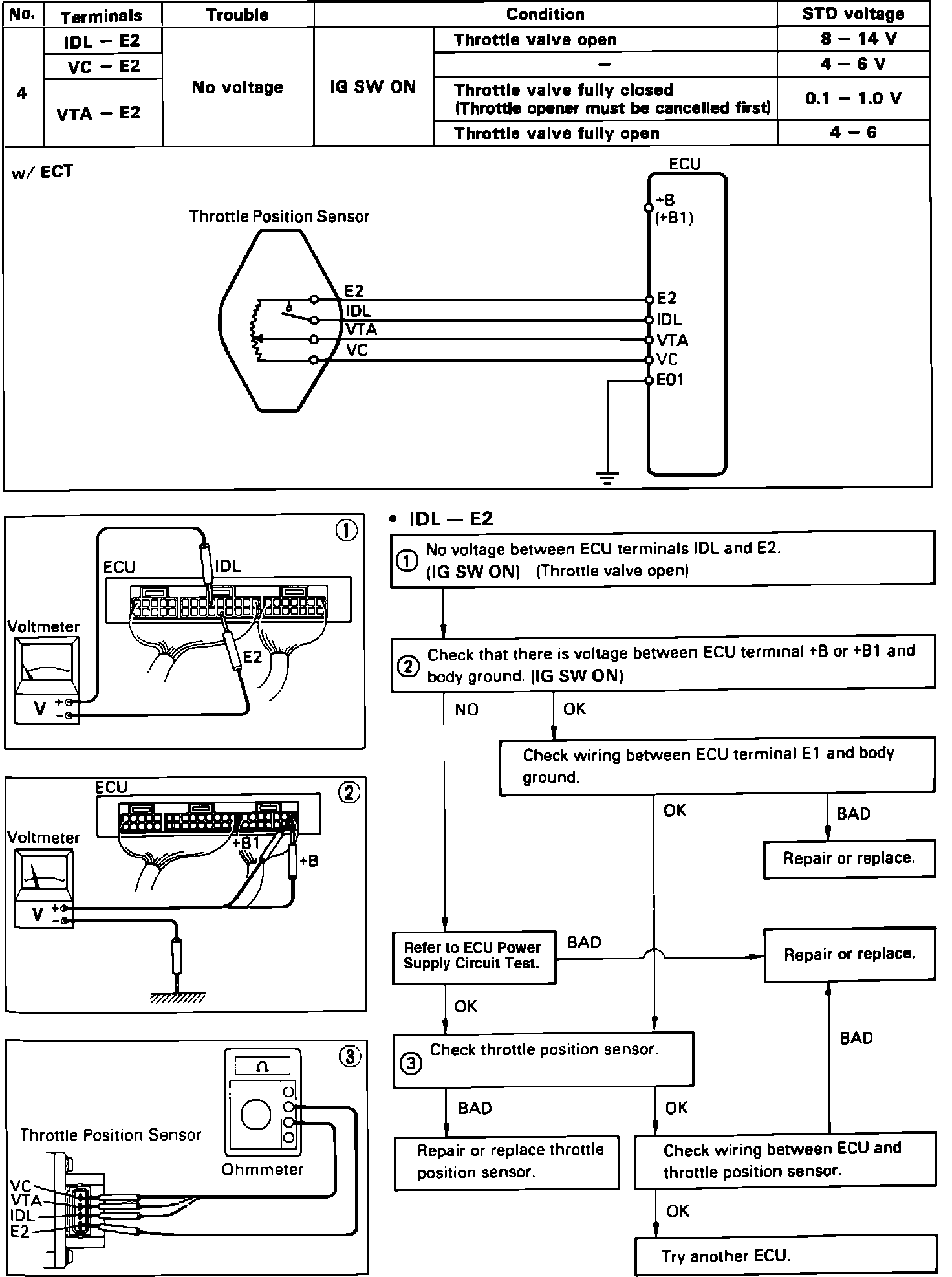

Throttle Position Sensor Circuit Test (w/ Electronically Controlled Transaxle):

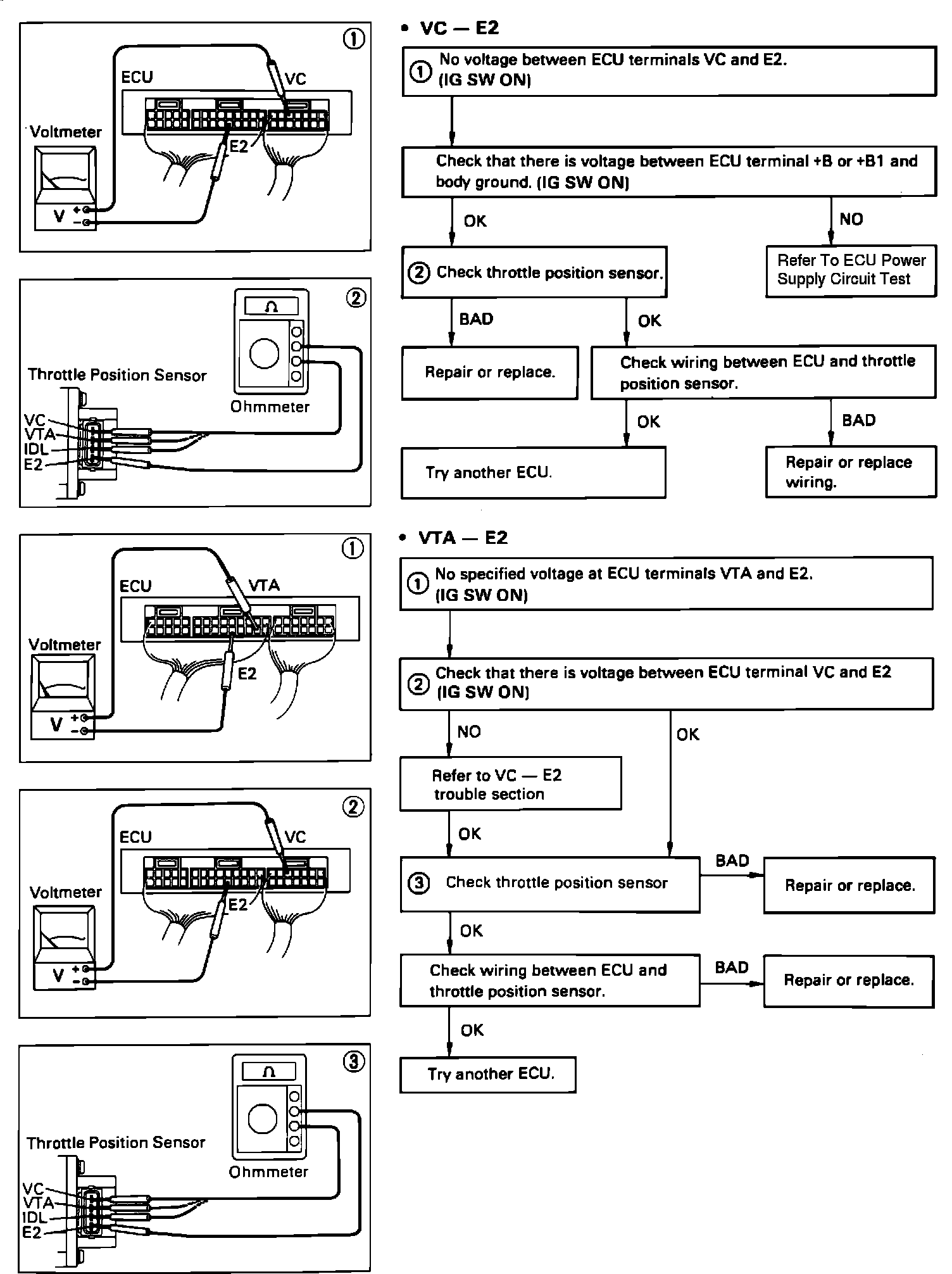

TPS Circuit Test:
