Manual Transmission/Transaxle: Description and Operation

- Transaxle types S51 are constant mesh synchronizers for forward gears, and a sliding mesh reverse gear.
- The input shaft is composed of the 1st and 2nd speed gears and the reverse drive gear, and the output shaft is composed of the drive gear (for use with the ring gear).
- The oil used in transaxle is as follows:
S51 Oil grade API GL-5 Viscosity SAE 75W-90
In case the above is unavailable:
Oil grade API GL-3 or DEXRON (R) II Viscosity SAE 75W-90

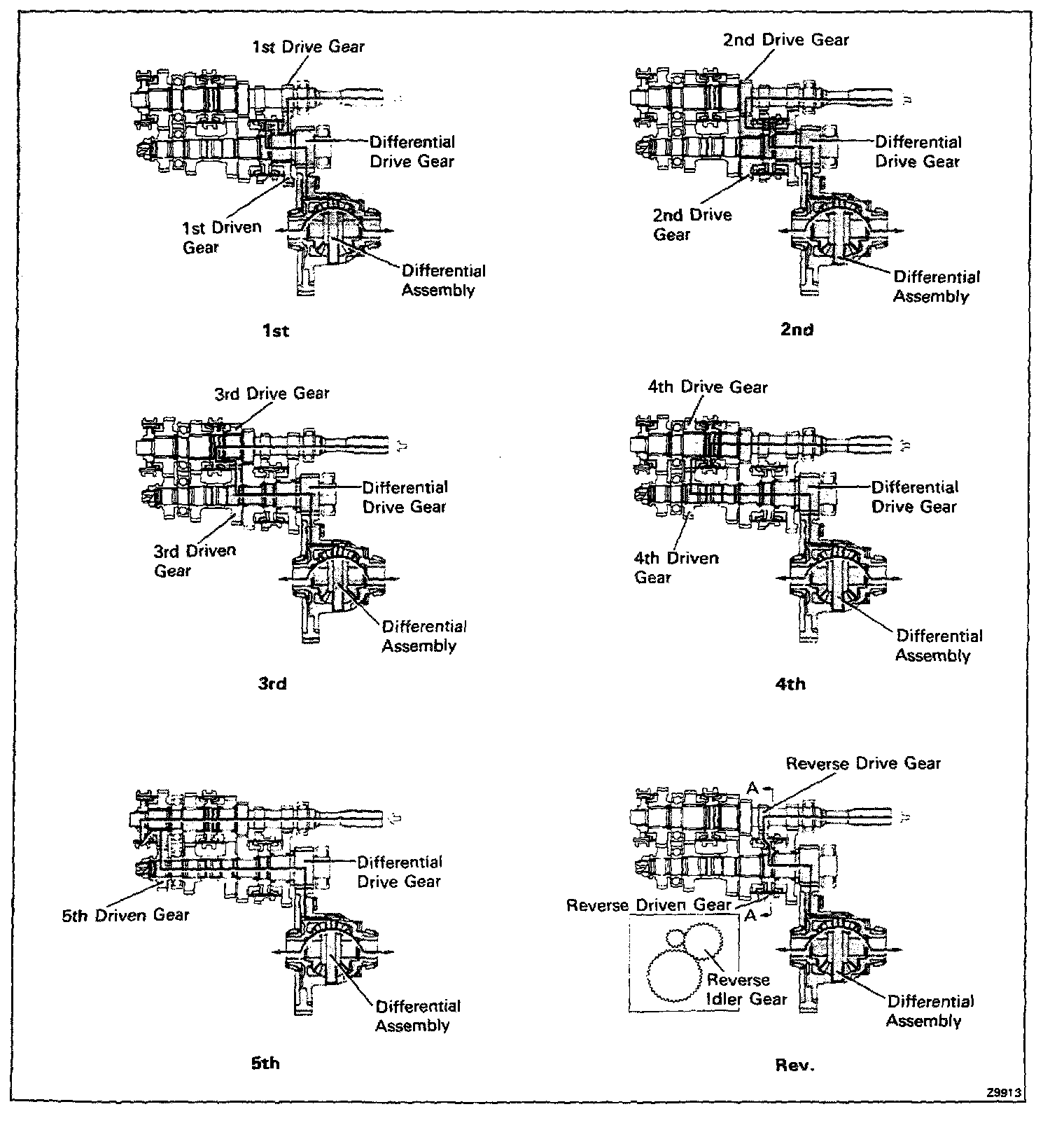

- The illustrations shown the engagements of transaxle gears.
