Operation

A140E/A140L Component Locations:

A140L:

A140E:

OPERATION

Function Of Components:

FUNCTION OF COMPONENTS

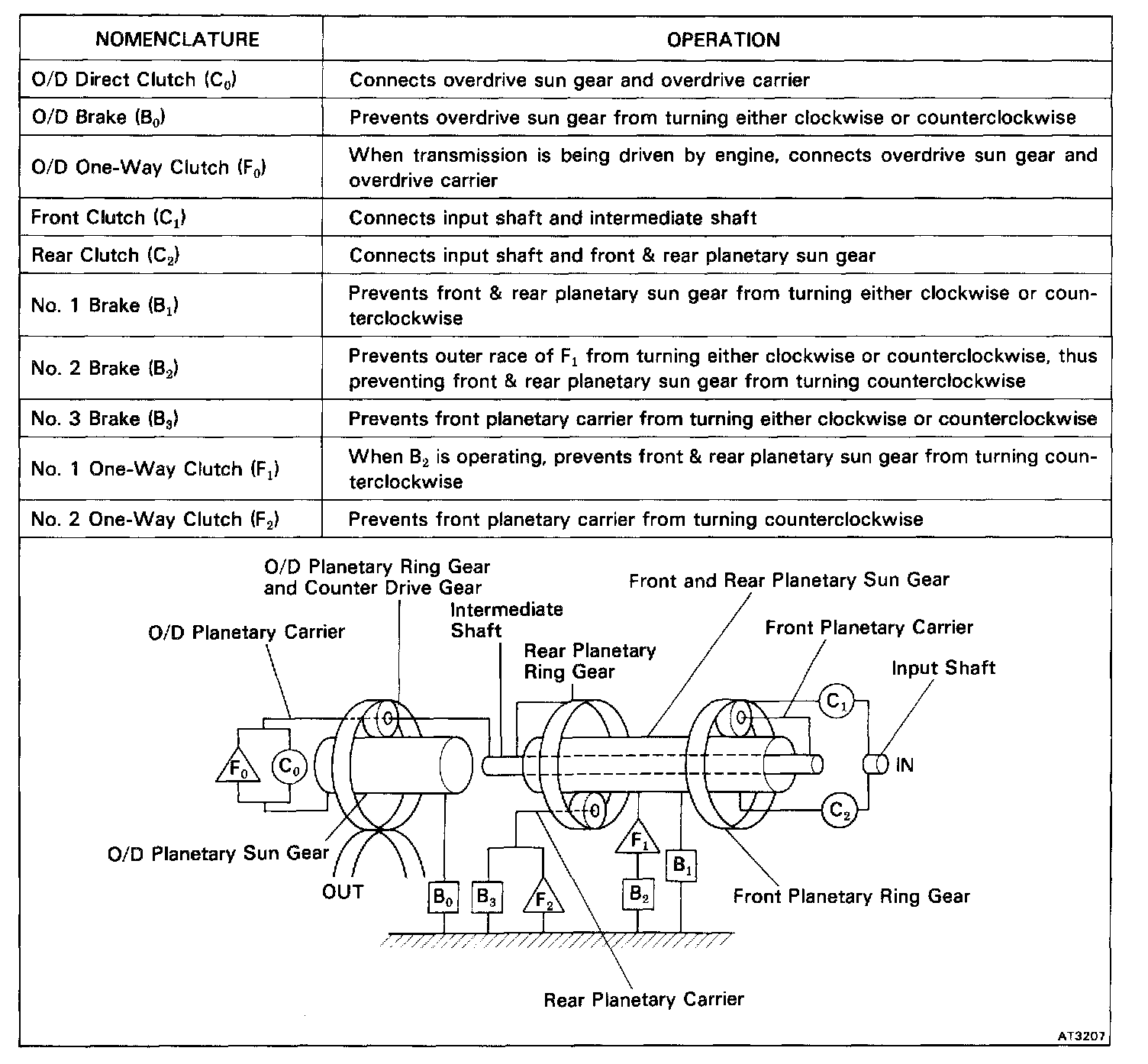

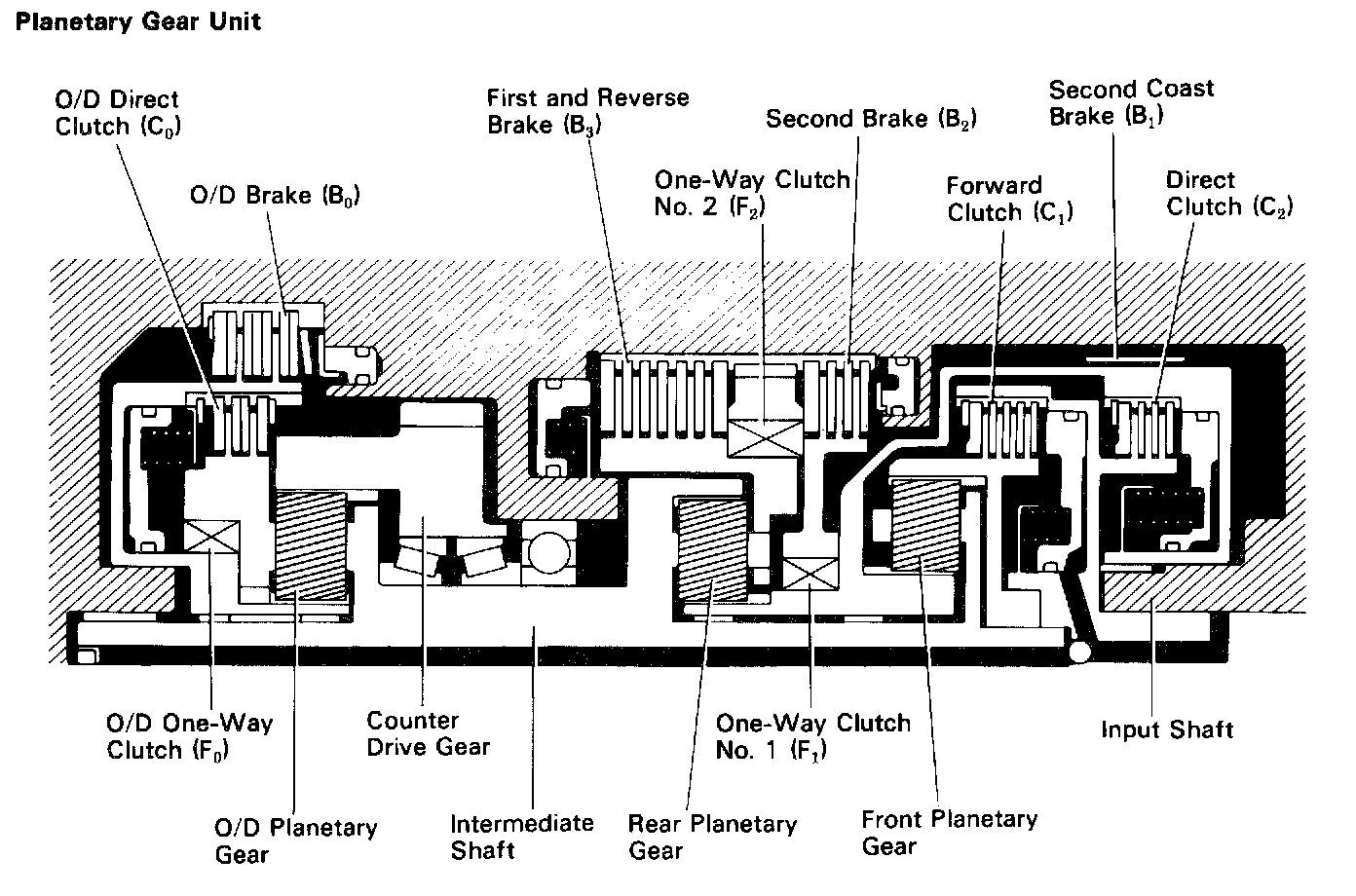

Power from the engine transmitted to the input shaft via the torque converter is then transmitted to the planetary gears by the operation of the clutch.

By operation of the brake and one-way clutch, either the planetary carrier or the planetary sun gear are immobilized, altering the speed of revolution of the planetary gear unit.

Shift change is carried out by altering the combination of clutch and brake operation.

Each clutch and brake operates by hydraulic pressure; gear position is decided according to the throttle opening angle and vehicle speed, and shift change automatically occurs.

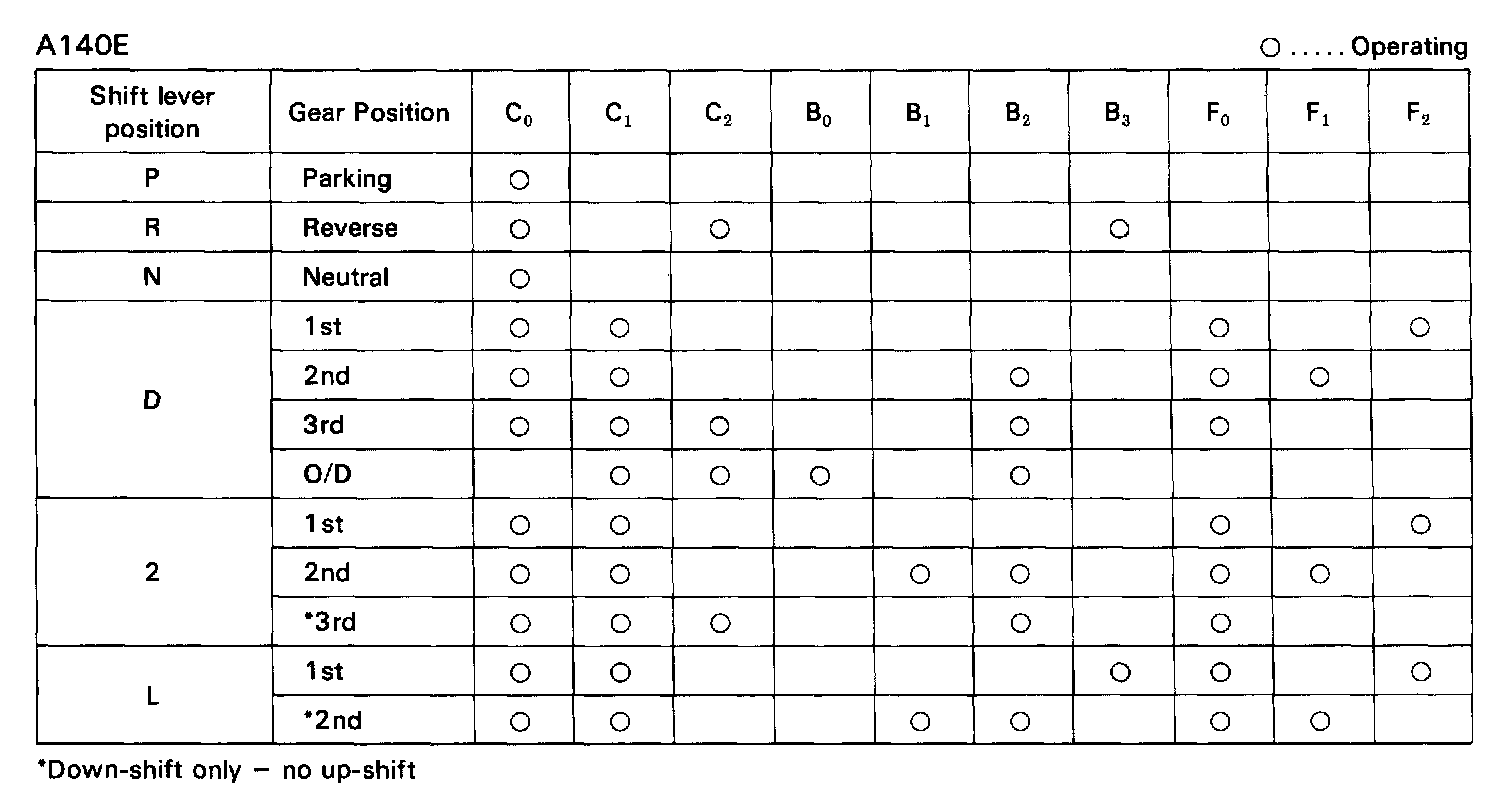

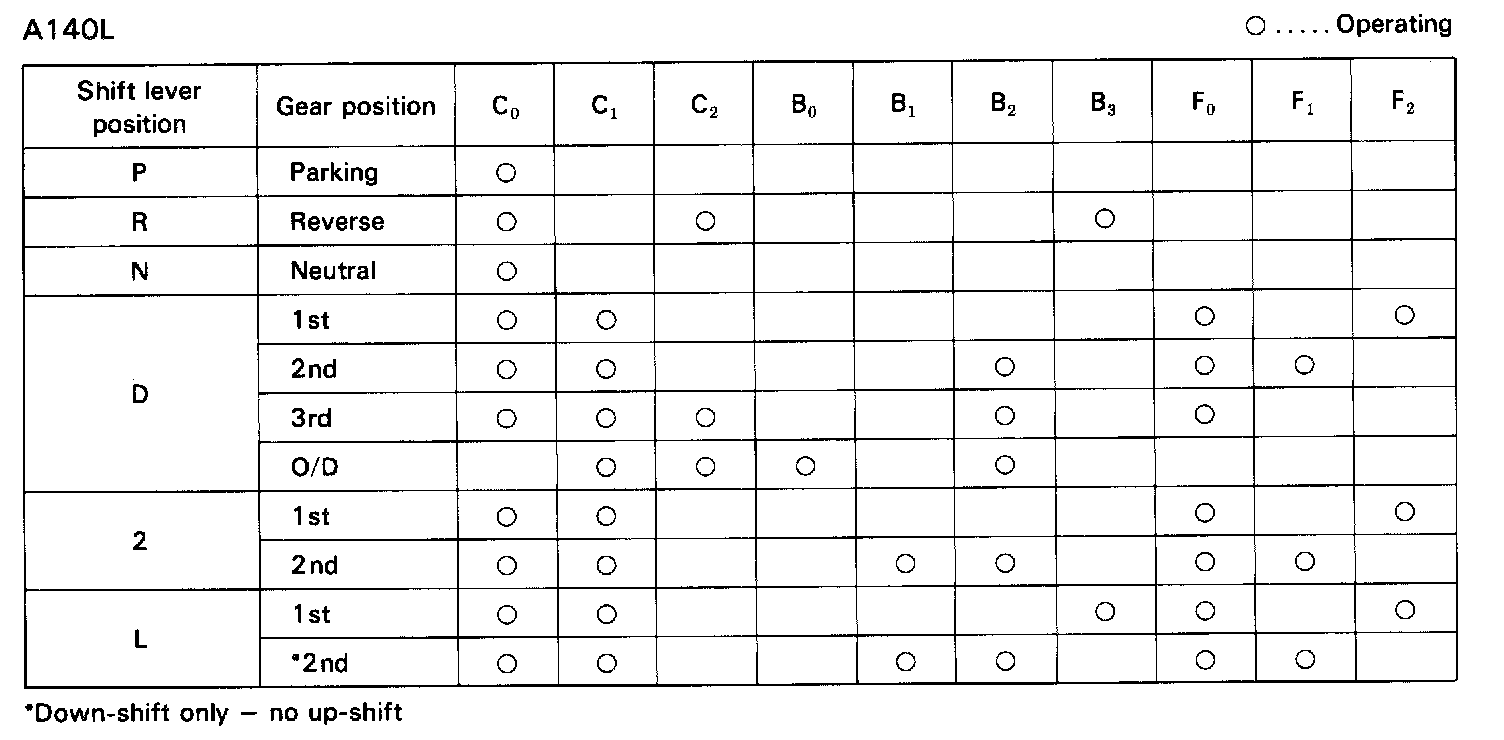

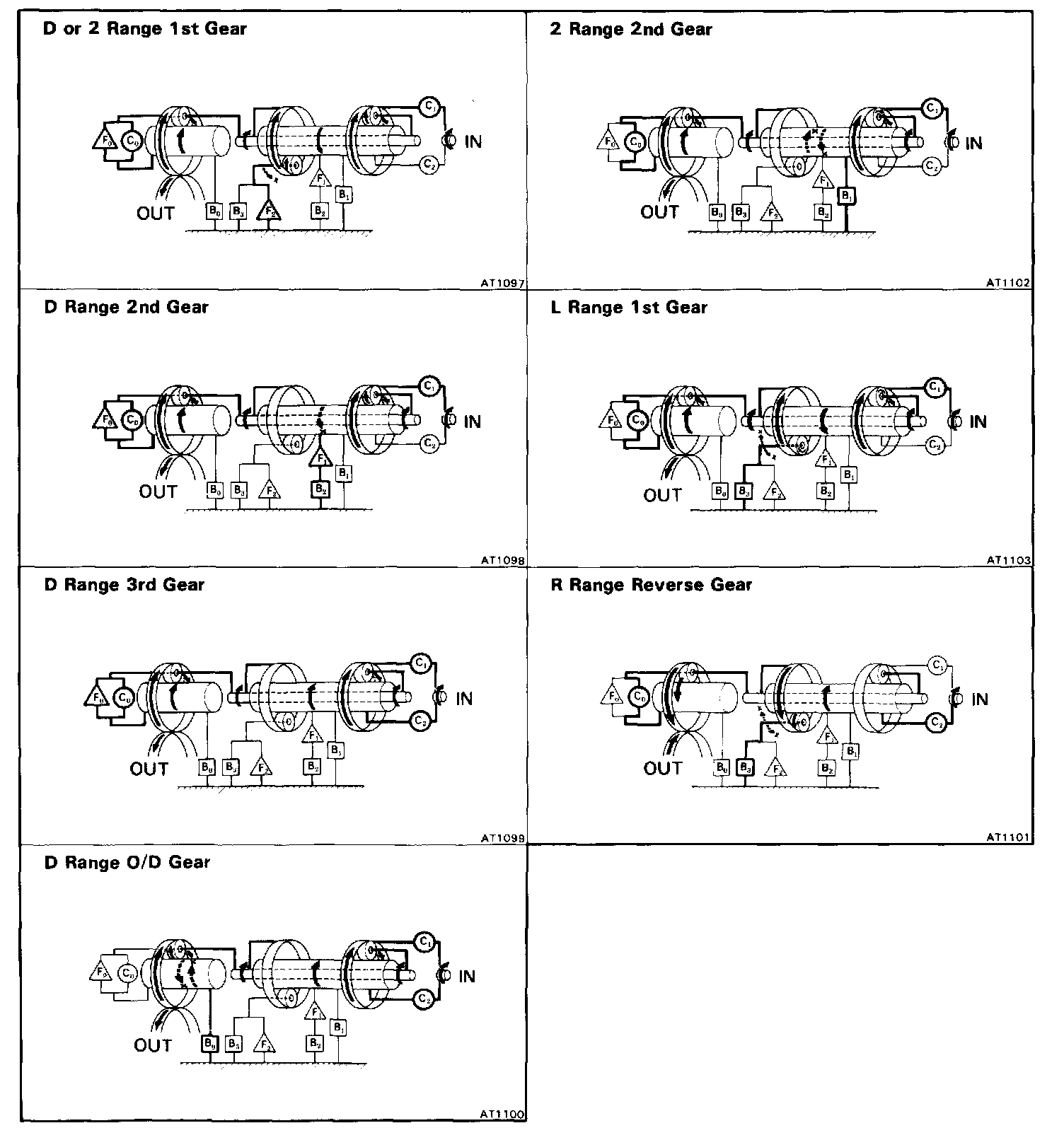

The conditions of operation for each gear position are shown on the illustrations.

1. Hydraulic Control System

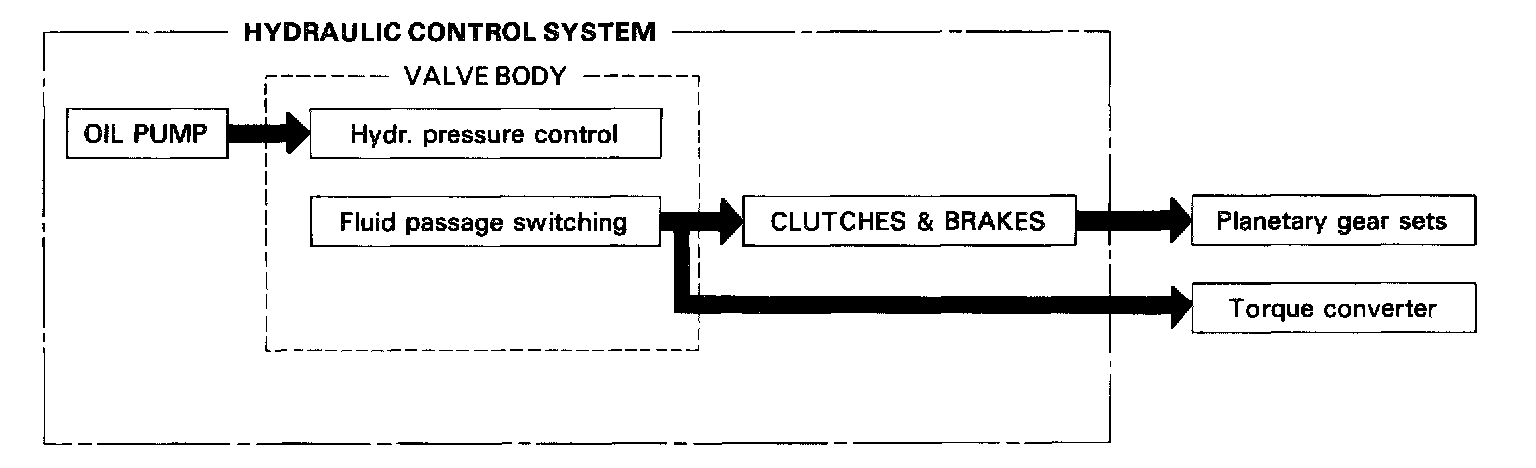

A14OL




The hydraulic control system is composed of the oil pump, the valve body, the governor body, the accumulators, the clutches and brakes as well as the fluid passages which connect all of these components.

Based in the hydraulic pressure created by the oil pump, the hydraulic control system governs the hydraulic pressure acting on the torque converter, clutches and brakes in accordance with the vehicle driving conditions.

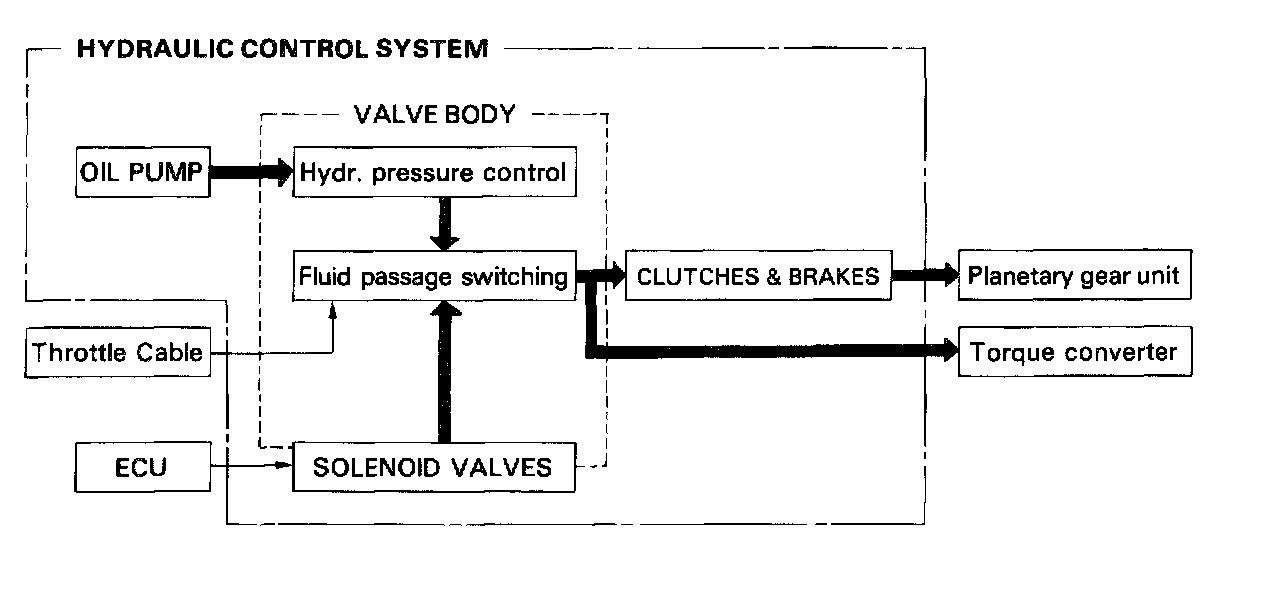

A140E




The hydraulic control system is composed of the oil pump, the valve body, the solenoid valves, the accumulators, the clutches and brakes, and the governor valve as well as the fluid passages which connect all of these components.

Based on the hydraulic pressure created by the oil pump, the hydraulic control system governs the hydraulic pressure acting on the torque converter, clutches and brakes in accordance with the vehicle driving conditions.

There are three solenoid valves on the valve body.

The No.1 and No.2 solenoid valves are turned on and off by signals from the ECU to operate the shift valves and change the gear shift position.

The No.3 solenoid valve is operated by signals from the ECU to engage or disengage the lock-up clutch of the torque converter.

2. Electronic Control System

COMPONENTS

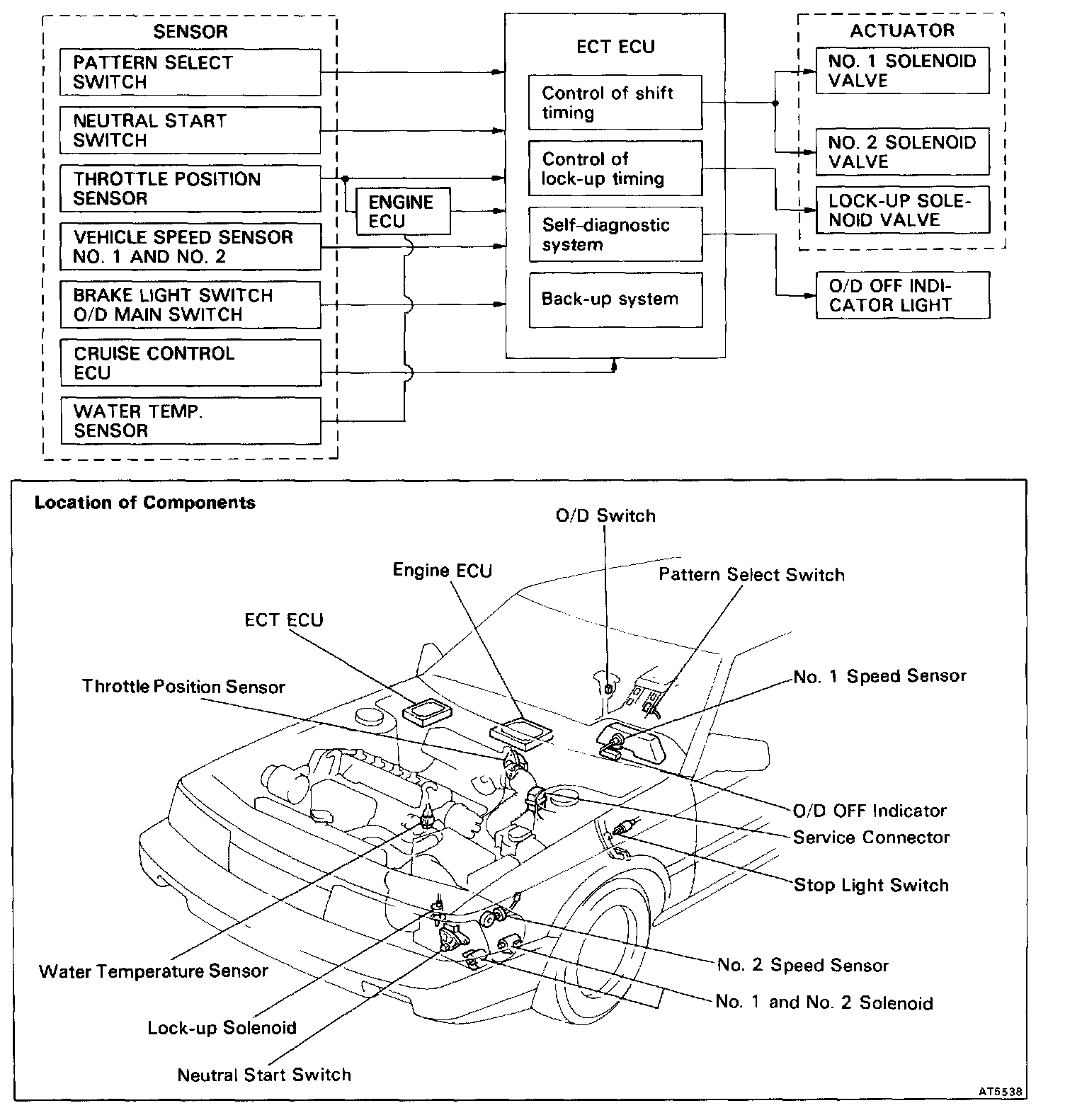

The electronic control system for controlling the shift timing and the operation of the lock-up clutch is composed of the following three parts:
a. Sensors: These sense the vehicle speed and throttle position and send this data to the ECT ECU in the form of electronic signals.
b. ECT ECU: This determines the shift and lock-up timing based upon the signals from the sensors.
c. Actuators: Solenoid valves divert hydraulic pressure from one circuit of the hydraulic control unit to another, thus controlling shifting and lock-up timing.
