Home
>>
Toyota
>>
1991
>>
Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse and Fusible Link Locations
>>
Relay Box
>>
Numbers 1 and 4
Numbers 1 and 4

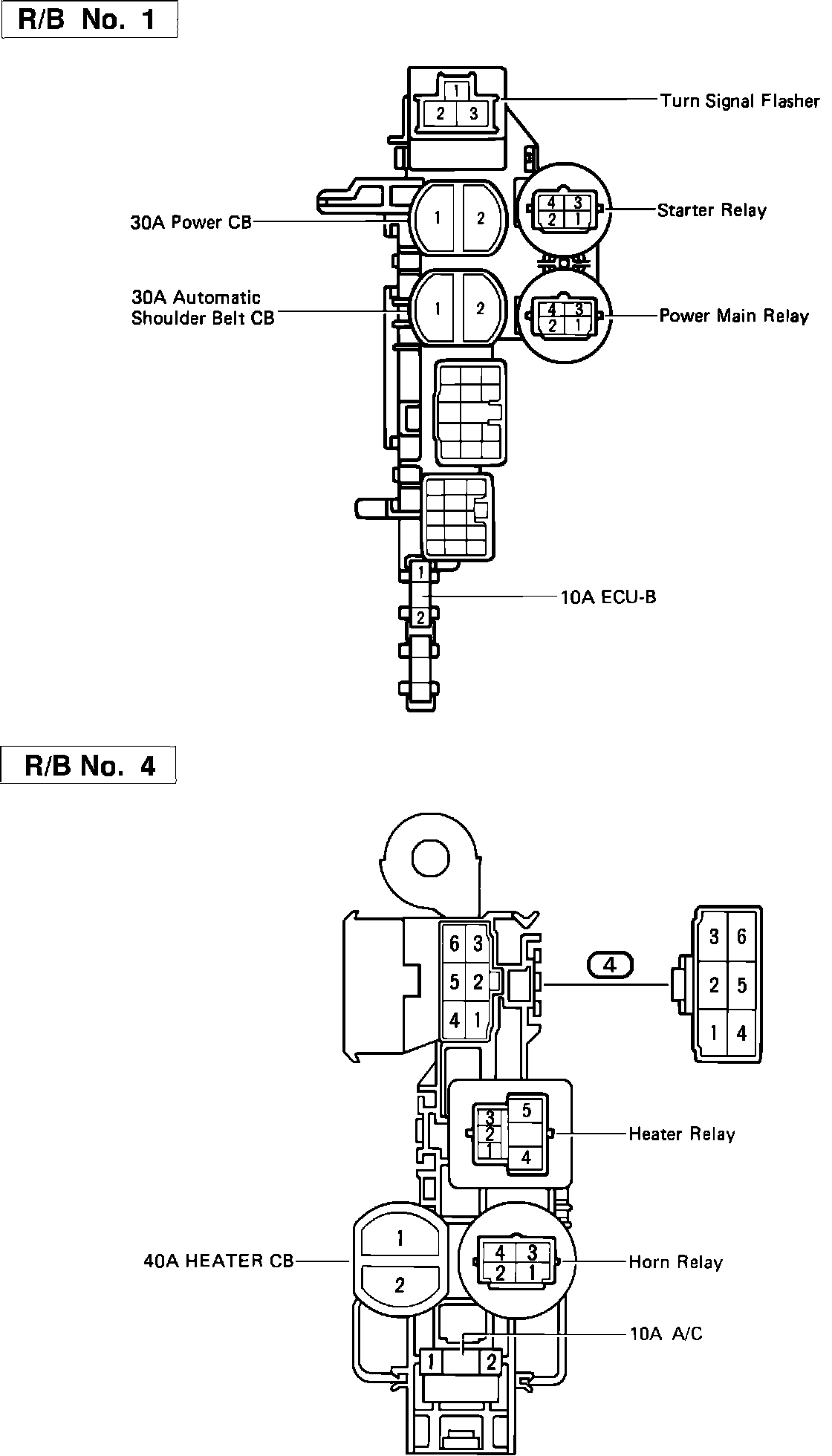

Fuse Panel: Relay Box No. 1 (Left Kick Panel) And Relay Box No. 4 (Right Kick Panel):
