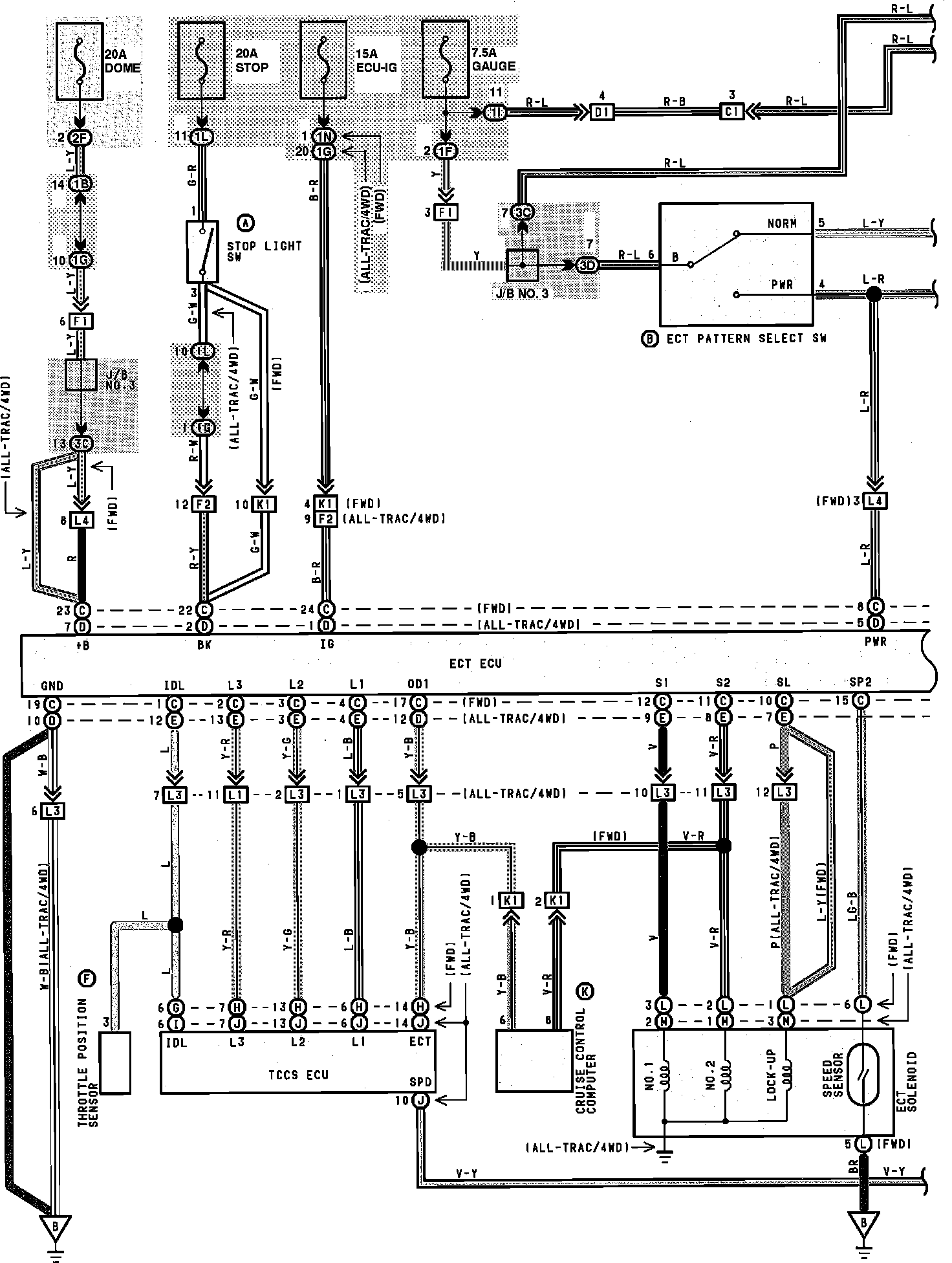

Electronic Controlled Transaxle (ECT) And Automatic Transaxle Indicator:
Electronic Controlled Transaxle (ECT) And Automatic Transaxle Indicator:
