Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1991
>>
Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Speed/Throttle Actuator - Electronic
>>
Testing and Inspection
>>
Circuit Test
Circuit Test
ISC Valve Circuit Test:

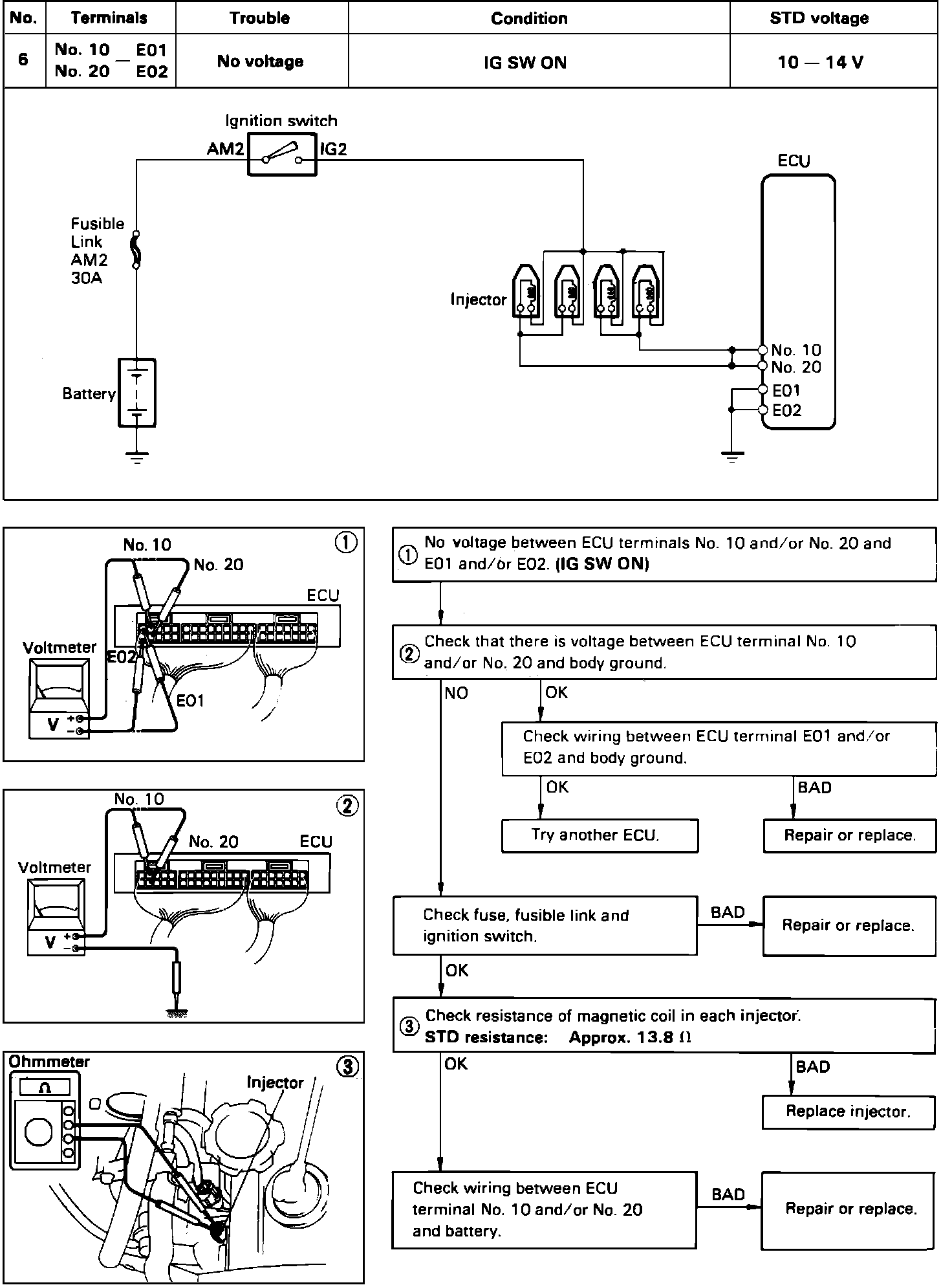

EFI Fuel Injector Circuit Test:
