Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1991
>>
Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

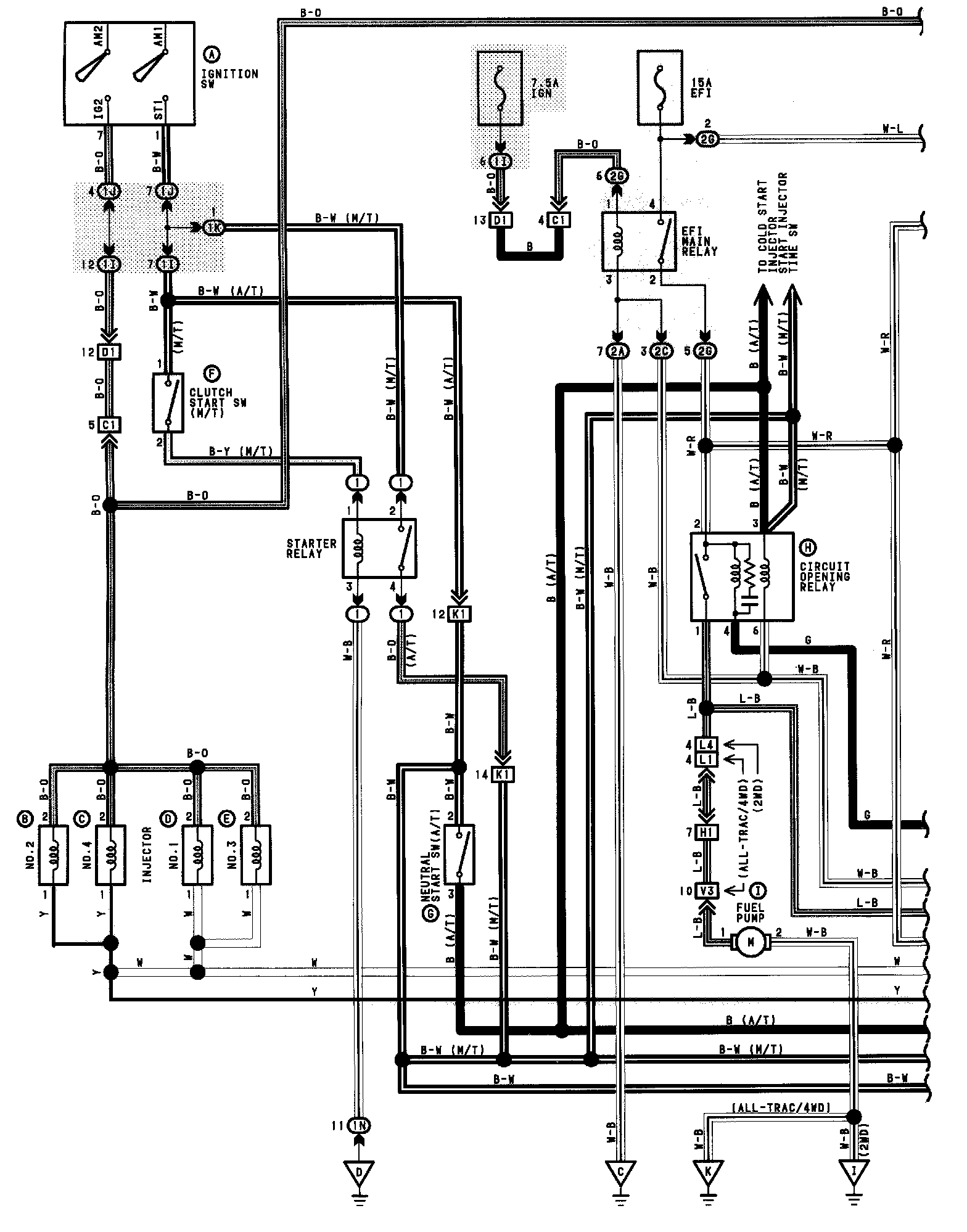

Engine Control - Part 1 Of 3:
