Home
>>
Toyota
>>
1991
>>
Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor Clutch Relay
>>
Locations
>>
Compressor Cut Off Relay
Compressor Cut Off Relay

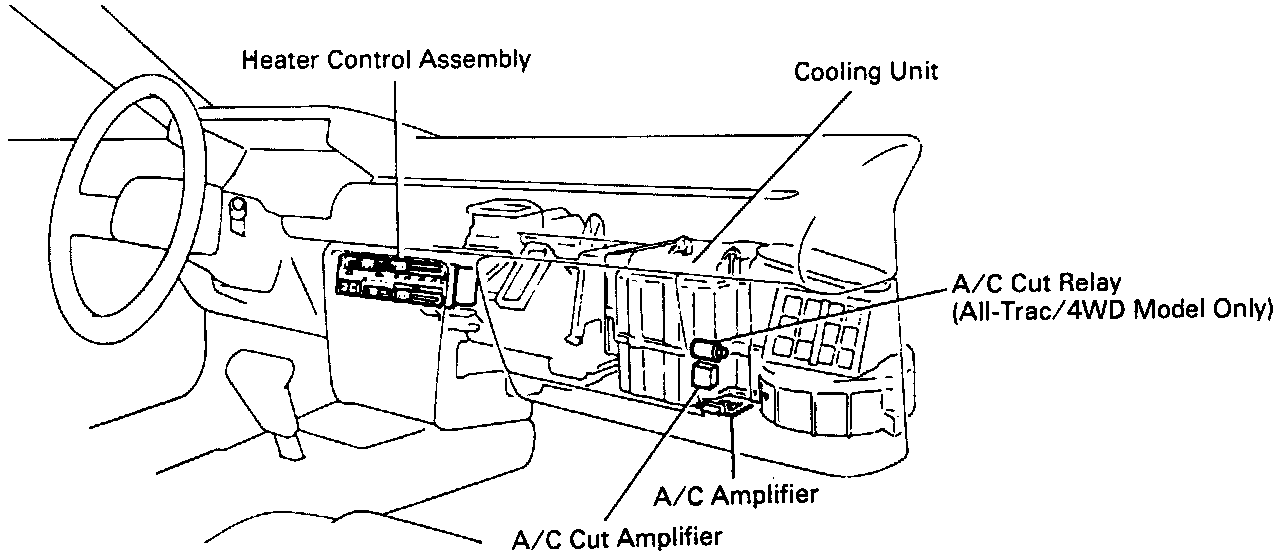

Interior HVAC Component Layout:
Located on the evaporator housing, passenger's side underdash.
