Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Connector Views
Connector Views
WIRING DIAGRAM

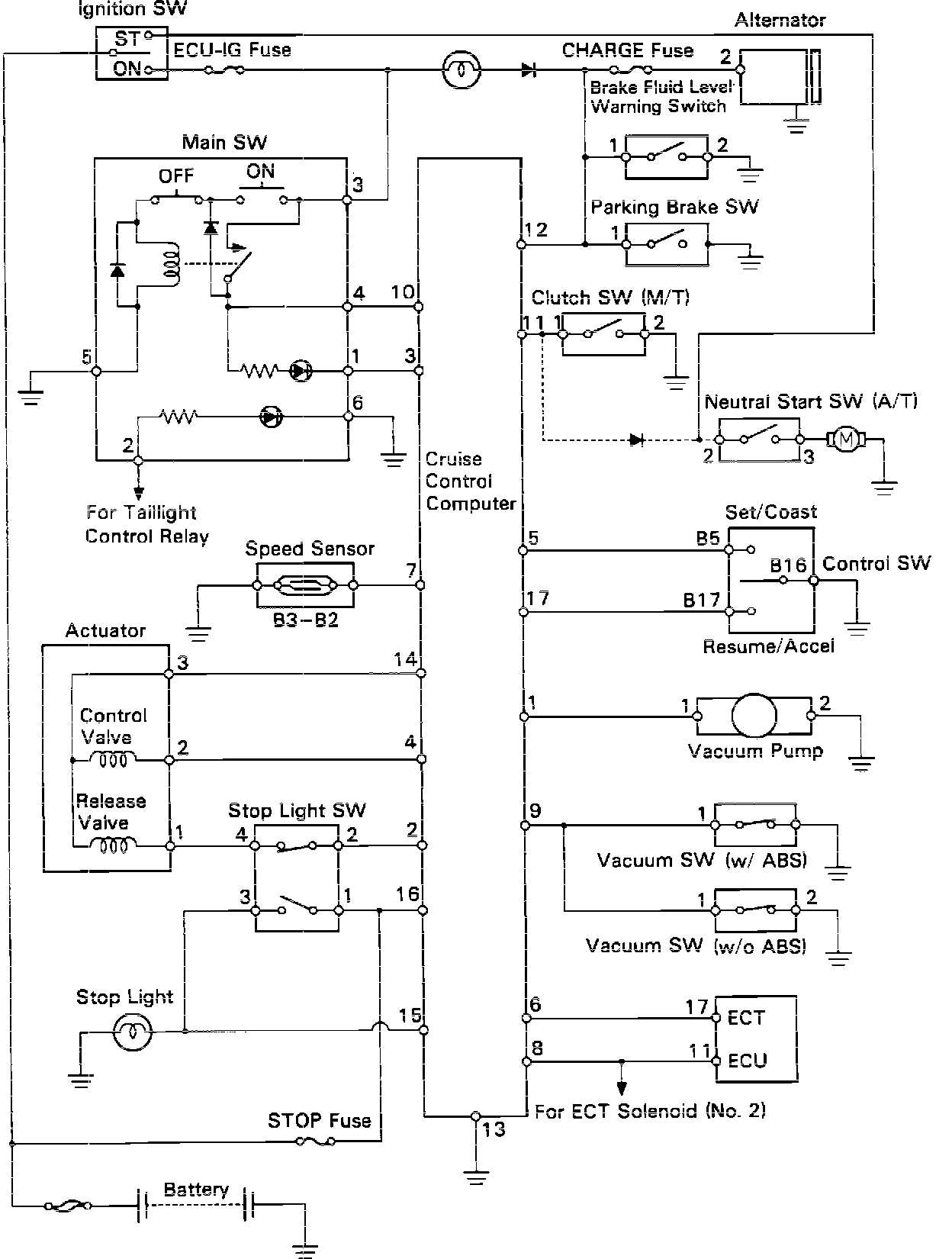

Cruise System Wiring Diagram:
CONNECTORS
Cruise System Connectors:
