Speedometer Driven Gear

REPLACEMENT OF SPEEDOMETER DRIVEN GEAR OIL SEAL




1. REMOVE SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST, pull out the oil seal.
SST 09921-00010

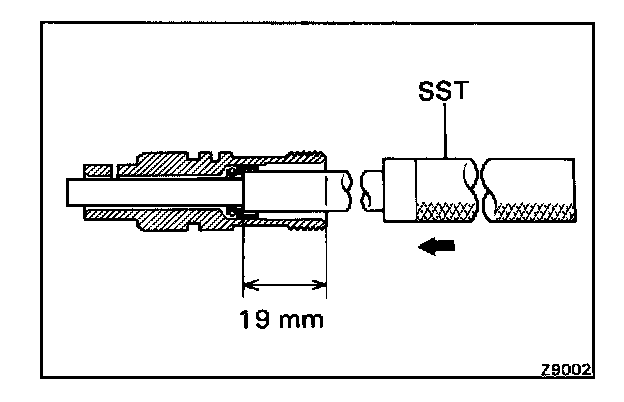

2. INSTALL SPEEDOMETER DRIVEN GEAR OIL SEAL SST 09201-60011

Drive in depth: 19 mm (0.75 in.)
