Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

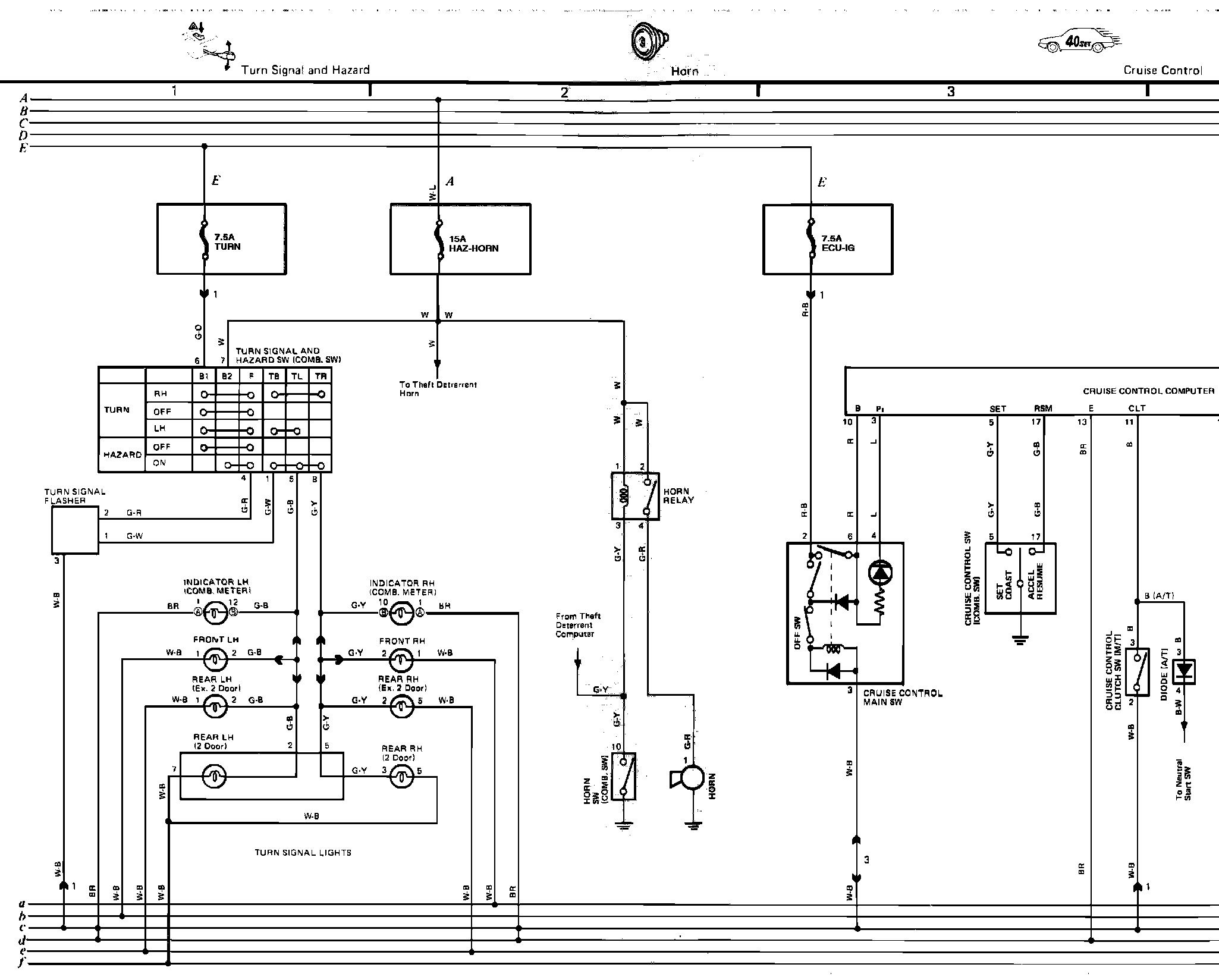

���Y�Turn Signal/Hazard, Horn, Cruise Control, Stop Lights, Taillights, Illumination And Headlights Wiring Circuit:
Power Source:
