Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Engine Control System
Engine Control System

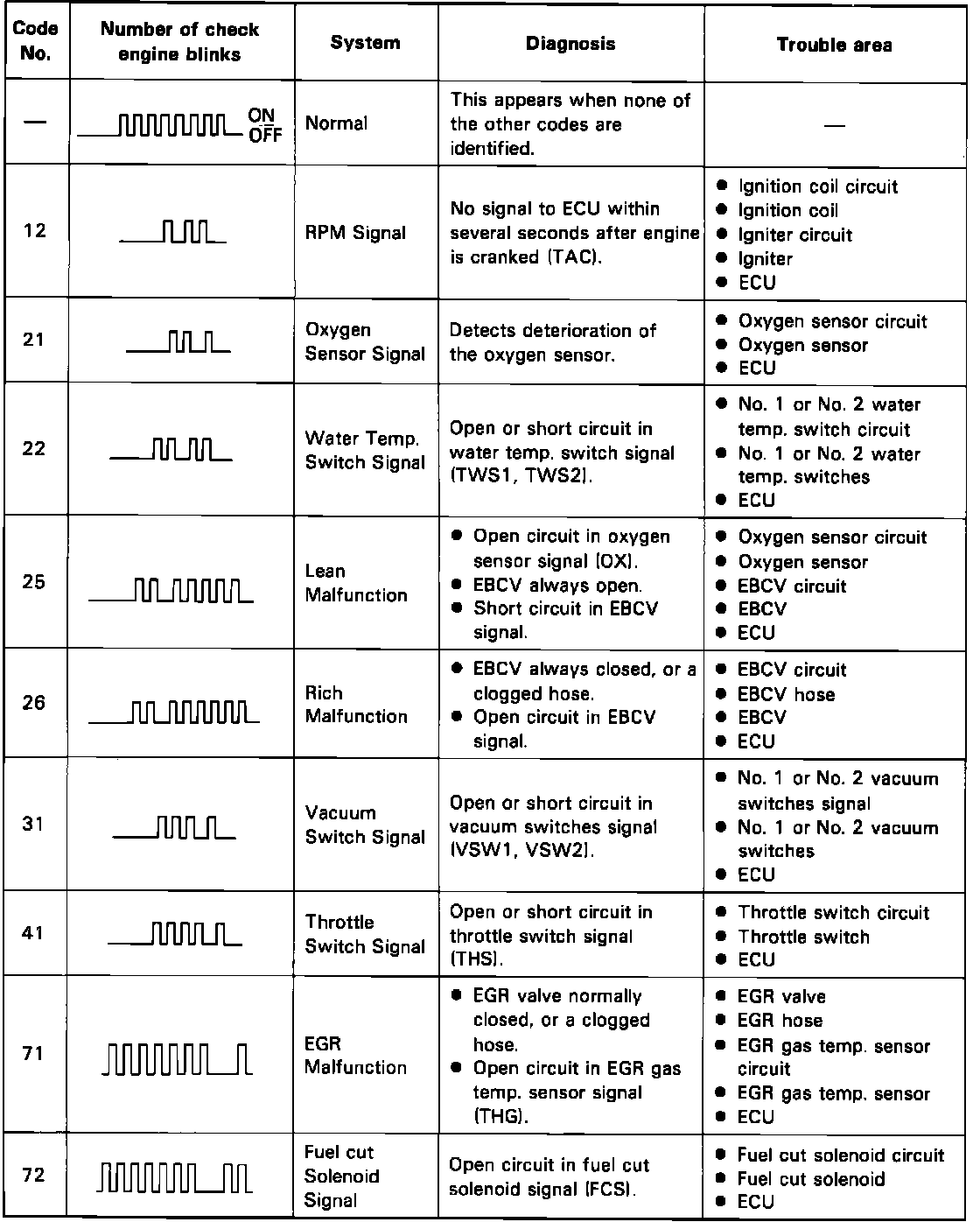

Fig. 124 Diagnostic Code Chart (California Vehicles):
