Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Supra L6-3.0L DOHC Turbo (7M-GTE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Primary Components
>>
Igniter
>>
Circuit Test
Circuit Test

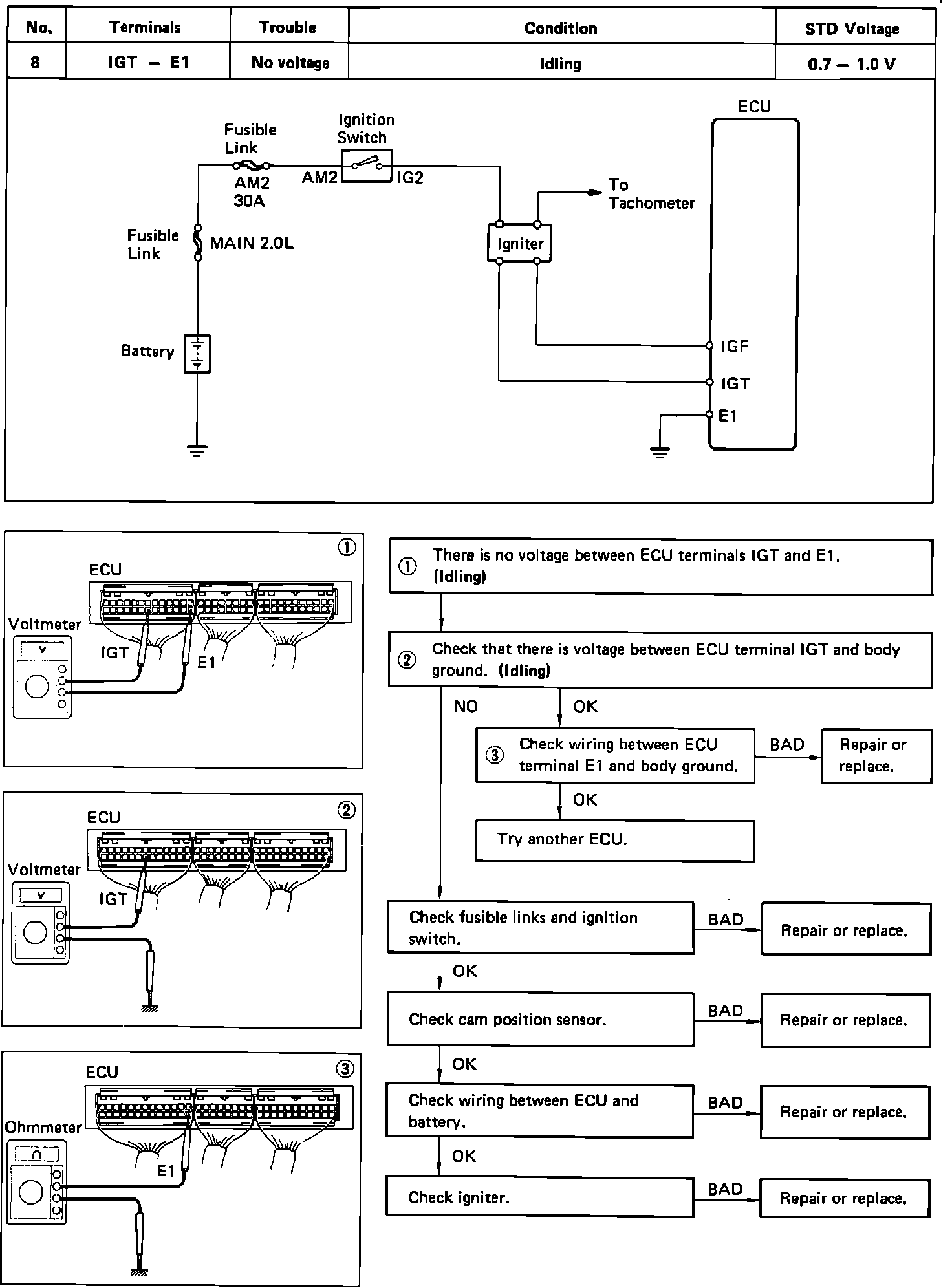

Ignition Signal Circuit Test:
Ignition Signal Circuit Test:
