Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse and Fusible Link Locations
Fuse and Fusible Link Locations

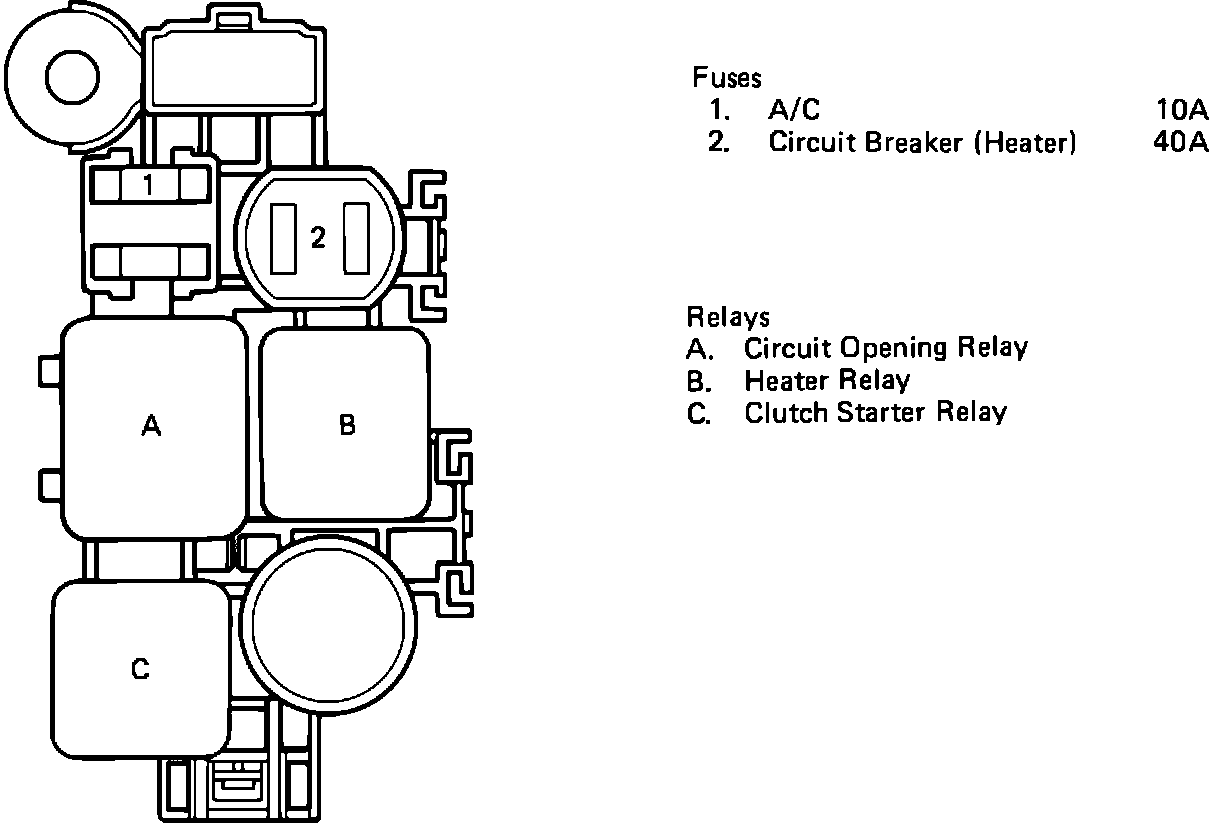

Fuse/Relay Panel #1 AND 5:

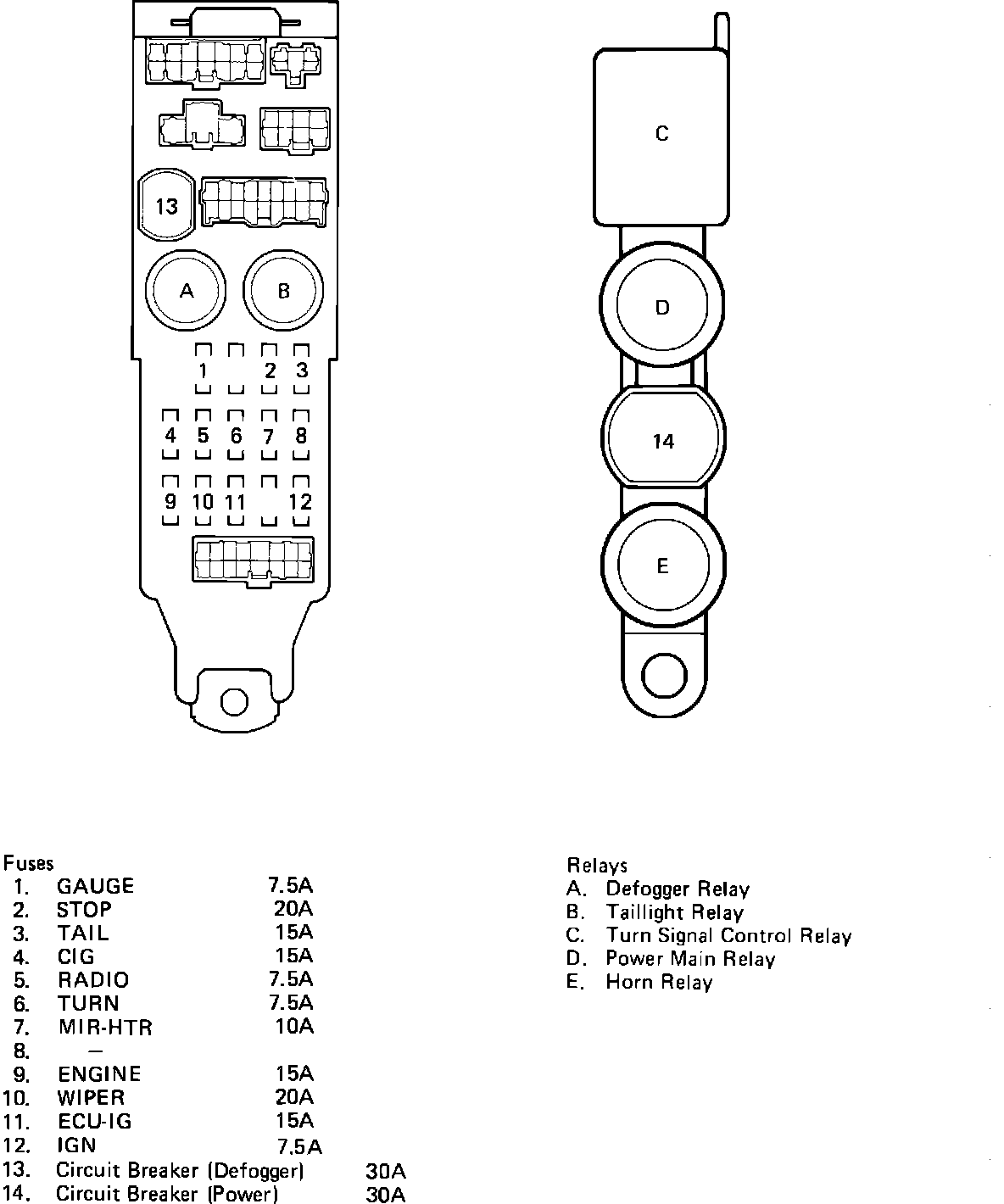

Fuse/Relay Panel #2:

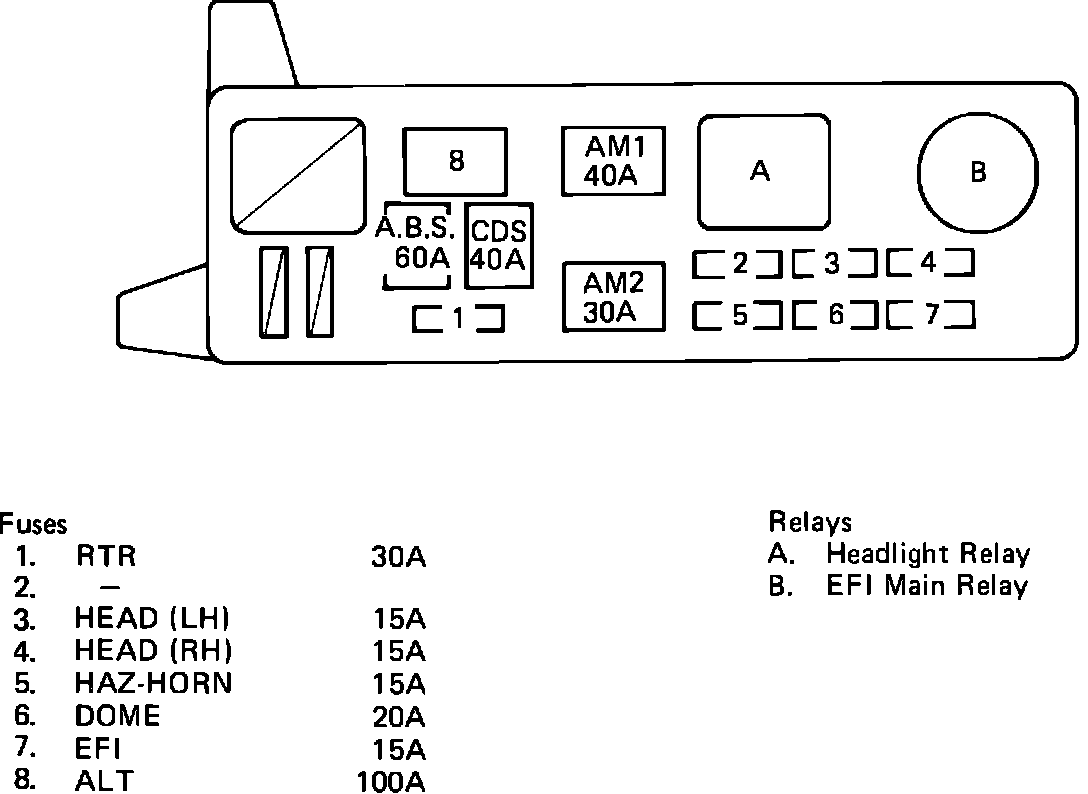

Fuse/Relay Panel #4:
