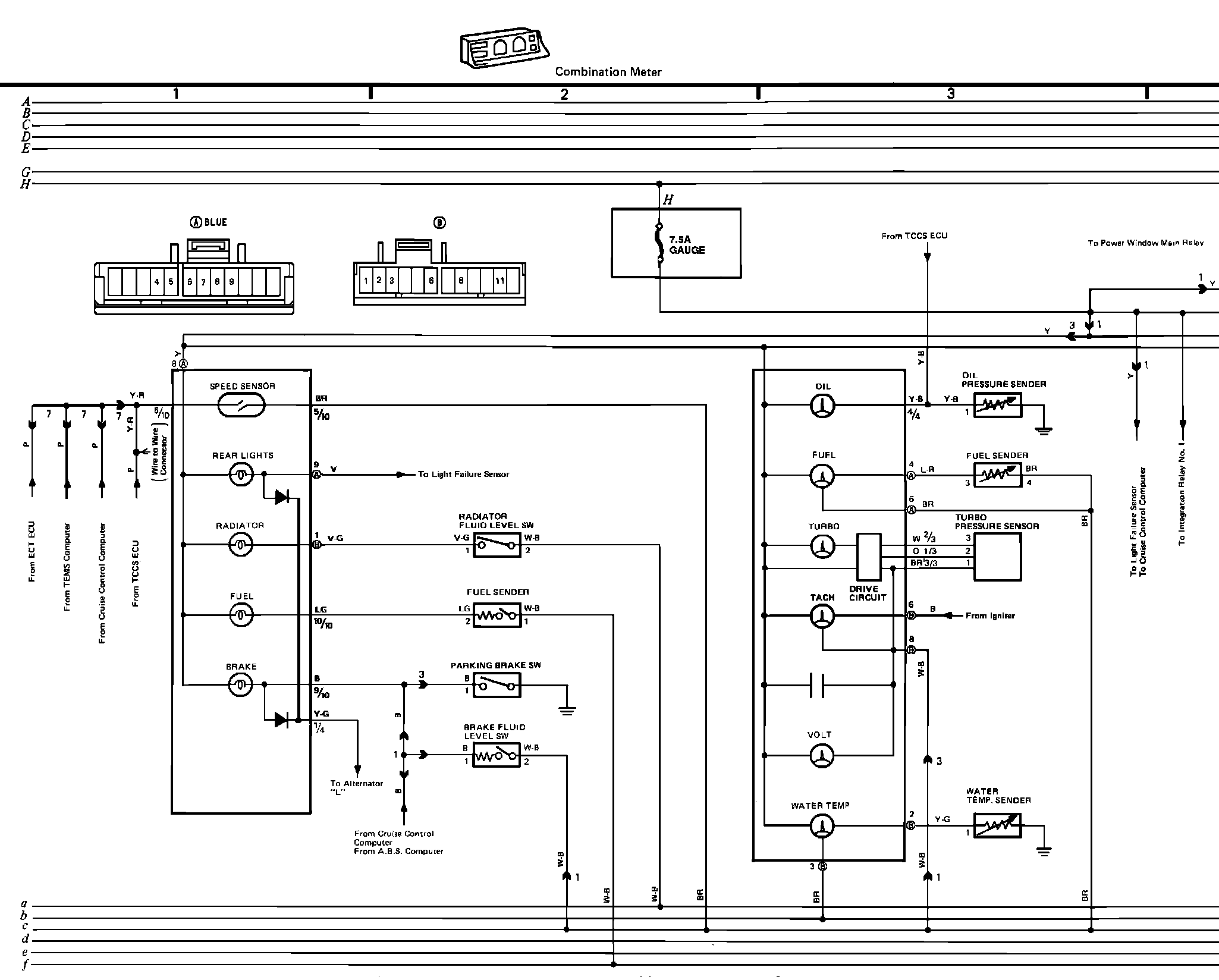

ئ��Instrument Panel, Rear Window Defogger, Electronic Controlled Transmission, Back-Up Lights And Shift Lock Indicator Wiring Circuits:
Power Source:
