Body - Additional Splash Guard for Alternator

89toyota04

REFERENCE: BODY
NUMBER: 020
DATE: 06-09-89
MODEL: MR2 (AW)



TITLE ADDITIONAL ENGINE UNDER-COVER

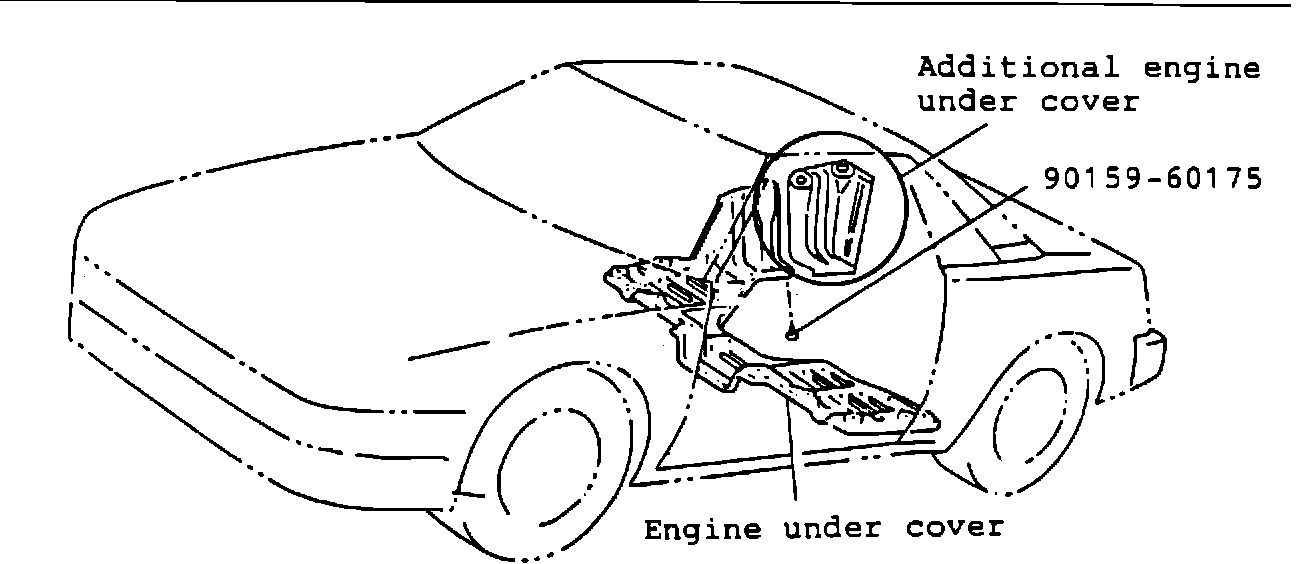

To prevent road debris and water from splashing on the alternator, an engine under-cover has been installed. (See illustration).
PRODUCTION EFFECTIVE FROM:

VIN PROD. DATE

JT2AW1 # # # J0141941 June 13, 1988


PART NUMBER INFORMATION:


PART NAME PREV P/N NEW P/N

Cover, Engine under N/A 51443-17010

Screw* same 90159-60175

*Additional screw needed for attachment of cover

INTERCHANGEABILITY:

New parts can be used on pre-production change vehicles.
